nVent CR230216G007 - ProAir Harsh Environment Outdoor with Crsn 3R CR23, 1600BTU 115V, Brushed, SS304
nVent

CR230216G007

UPC: 783510204891


Documents & Media
Installation Instructions

Contact for Pricing

Overview

The **nVent ProAir Harsh Environment Outdoor Air Conditioner (SKU: CR230216G007)** is a robust, corrosion-resistant cooling solution engineered to protect critical components in the most demanding industrial and commercial environments. Designed for outdoor installations where exposure to moisture, chemicals, and harsh weather is inevitable, this unit combines durability with ease of maintenance to ensure uninterrupted operation. Built by **nVent**, a global leader in thermal management and electrical solutions, the ProAir series is trusted by engineers, facility managers, and maintenance teams across industries such as oil & gas, chemical processing, marine, telecommunications, and data centers. At the core of the ProAir’s performance is its **1600 BTU cooling capacity**, delivering precise temperature control for enclosures housing sensitive electronics, control panels, or instrumentation. Operating on **115V at 50/60Hz**, the unit is compatible with standard power systems worldwide, making it a versatile choice for global deployments. The **stainless steel 304 (SS304) construction** ensures exceptional resistance to corrosion, rust, and oxidation, even in coastal or high-salinity environments. This material choice extends the product’s lifespan significantly compared to painted or coated alternatives, reducing long-term replacement costs. The **NEMA 3R-rated enclosure** provides robust protection against rain, sleet, and wind-blown dust, while the **optional hood** offers additional defense against splashed water or direct high-pressure sprays. For applications requiring enhanced ingress protection, the ProAir can be paired with supplementary weatherproofing accessories. A **hinged door design** minimizes downtime during servicing—technicians can access internal components quickly without removing the entire unit from its mounting, a critical feature in remote or hard-to-reach locations. With **few fasteners**, maintenance is streamlined, reducing labor hours and operational disruptions. The **ProAir Harsh Environment Air Conditioner** is ideal for protecting: - **Control panels and PLCs** in outdoor industrial settings - **Telecom shelters and base stations** in corrosive coastal or desert climates - **Data center cooling units** for edge computing in harsh conditions - **Oil & gas field instrumentation** exposed to humidity, salt spray, or chemical vapors - **Marine and offshore equipment** where saltwater exposure is constant When selecting an outdoor air conditioner for harsh environments, professionals prioritize **corrosion resistance, reliability, and serviceability**. The ProAir excels in all three areas, thanks to its **304 stainless steel housing**, **NEMA 3R certification**, and **tool-less access panels**. Unlike conventional AC units that may degrade rapidly in corrosive atmospheres, the ProAir’s materials and construction are engineered to withstand decades of exposure without compromising performance. Its **low-maintenance design** further reduces total cost of ownership, making it a preferred choice over painted or plastic alternatives that require frequent repainting or replacement. nVent’s reputation for innovation in thermal management solutions is backed by decades of expertise in designing products that meet the rigorous demands of industrial applications. The ProAir series is no exception—it reflects the company’s commitment to **durability, efficiency, and ease of use**. Whether deployed in a refinery, a wastewater treatment plant, or a remote telecom tower, the ProAir ensures that critical systems remain cool, dry, and operational, even in the face of environmental challenges. For facilities where failure is not an option, the ProAir Harsh Environment Air Conditioner delivers unmatched protection and peace of mind.
  • Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
  • Smooth surface with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134a, R513A or R407C Refrigerant
  • Models for 115, 230 and 460 single phase VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • High-performance fans and blowers designed for densely packed enclosures

Specifications

Amperage Rating
4 A
Application
Controls and Drives;Corrosive Environments;Power Distribution
Application
Controls and Drives; Power Distribution; Corrosive Environments
Btu Rating
1,600
Color
Unpainted
Depth
222 mm
Depth
8.75 in
Finish
Brushed #3
Frequency Rating
50/60 Hz
Frequency Rating, Maximum
60 Hz
Frequency Rating, Minimum
50 Hz
Height
23 IN
Height
584 mm
Housing Material
Stainless Steel
Material
Stainless Steel 304
Max Current
4 A
Mechanical Advantage
Stainless steel optional
Model
Surface Mounted
NEMA Rating
12 Indoor, dust-resistant
Nominal Capacity Btu/h
1,600 Btu/h
Nominal Capacity Watts
469 W
Nominal Voltage
115 V
Number Of Phases
1
Operating Temperature
131 deg F
Operating Temperature
-40-131
Operating Temperature
-40-55
Operating Temperature
-40-55 °C
Power
469 W
Product Family
ProAir
Protection Rating
NEMA Type 12
Remote Access Control
No
Thickness
1.21 mm
Thickness
18 ga
Thickness
51.40mm (2.024")
Type
Air Conditioners
Voltage AC
100-120 V
Voltage Rating
115 VAC
Weight
26 kg
Weight
50 lb
Width
254 mm
Width
10 IN
Package Dimensions (L x W x H)
13.75 IN x 12.5 IN x 26.5 IN
Package Dimensions (L x W x H)
34.925 cm x 31.75 cm x 67.31 cm
Package Weight (Imperial)
50.000 L
Package Weight (Metric)
22.680 kg
ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 115V, Brushed, SS304

CR230216G017

ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 115V, Brushed, SS304
ProAir Harsh Environment Indoor/Outdoor 4X CR23, 1600BTU 115V, Brushed, SS304

CR230216G015

ProAir Harsh Environment Indoor/Outdoor 4X CR23, 1600BTU 115V, Brushed, SS304
ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 230V, Brushed, SS304

CR230226G016

ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 230V, Brushed, SS304
ProAir Harsh Environment Indoor/Outdoor 4X CR23, 1600BTU 230V, Brushed, SS304

CR230226G014

ProAir Harsh Environment Indoor/Outdoor 4X CR23, 1600BTU 230V, Brushed, SS304
SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 115V, Brushed, SS304

N210216G051

SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 115V, Brushed, SS304

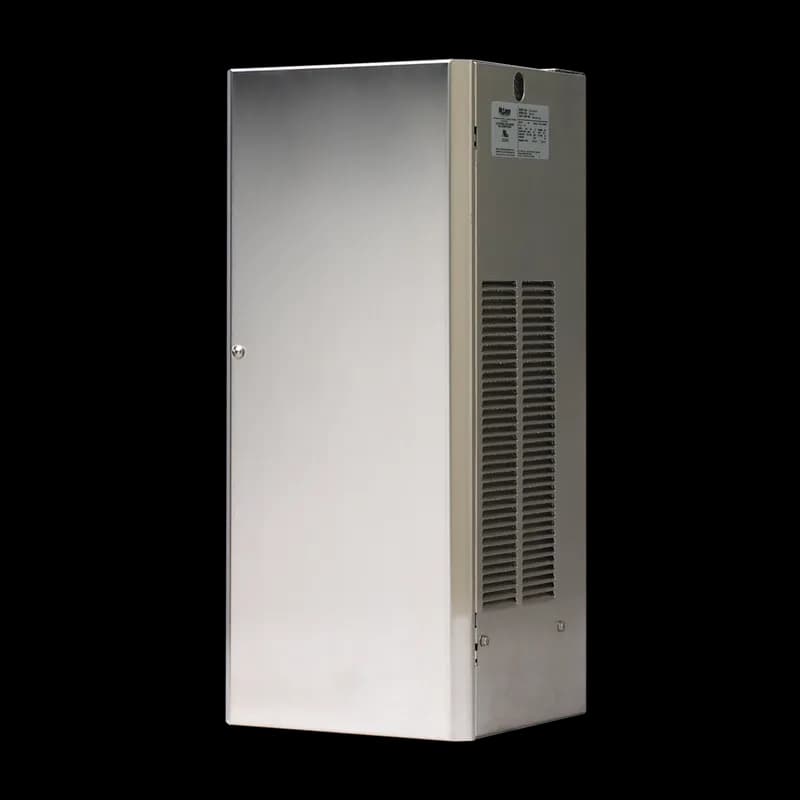

ProAir Harsh Environment Outdoor with Crsn 3R CR23, 1600BTU 230V, Brushed, SS304

CR230226G009

ProAir Harsh Environment Outdoor with Crsn 3R CR23, 1600BTU 230V, Brushed, SS304
Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 2300BTU 115V ACP L2, SS304

X230216G370

Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 2300BTU 115V ACP L2, SS304
ProAir Harsh Environment Outdoor 3R CR29, 2700BTU 115V, Brushed, SS304

CR290216G013

ProAir Harsh Environment Outdoor 3R CR29, 2700BTU 115V, Brushed, SS304
Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 1890BTU 230V Heat, SS304

X230226G160

Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 1890BTU 230V Heat, SS304
Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 1890BTU 230V ACP L2, SS304

X230226G370

Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 1890BTU 230V ACP L2, SS304
Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 2300BTU 115V, SS304

X230216G170

Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 2300BTU 115V, SS304
Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 2300BTU 115V Heat, SS304

X230216G160

Extreme Envrs Air Conditioner, 22.29x10.23x13.64, 2300BTU 115V Heat, SS304

How to Install the CR230226G002 Air Conditioner

This guide provides step-by-step instructions for the installation and initial setup of the CR230226G002 air conditioner, ensuring proper mounting, wiring, and configuration.

Estimated time: 45m

Tools needed:

Screwdriver, Wrench, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Washers, Gasket kit

  1. Inspect the air conditioner

    Check for any visible damage and verify functionality by connecting the power cord to a properly grounded power supply. Ensure the unit operates without excessive noise or vibration for 5-10 minutes.

  2. Prepare the mounting area

    Using the cutout dimensions provided in the manual, prepare the air 'IN' and 'OUT' openings and the mounting bolt hole pattern on the enclosure.

  3. Install gaskets

    Apply the gaskets from the mounting gasket kit to the rear of the air conditioner, ensuring proper placement as indicated in the manual.

  4. Mount the air conditioner

    Secure the air conditioner to the enclosure using the provided mounting bolts and washers. Start bolts by hand to avoid cross-threading, then tighten with a wrench.

  5. Connect the power supply

    Refer to the nameplate for electrical requirements and connect the power cord to a properly grounded power supply. Ensure the circuit is fused with a slow-blow or HACR circuit breaker.

  6. Adjust the temperature controller

    If equipped with an automatic temperature controller, verify that it is preset for standard operation. If adjustments are needed, disconnect power, access the controller, and adjust the set point as required.

  7. Calibrate the system

    After installation, allow the unit to remain upright for at least 5 minutes before starting. Turn on the unit and monitor for proper operation, ensuring all fans and the compressor are functioning.
