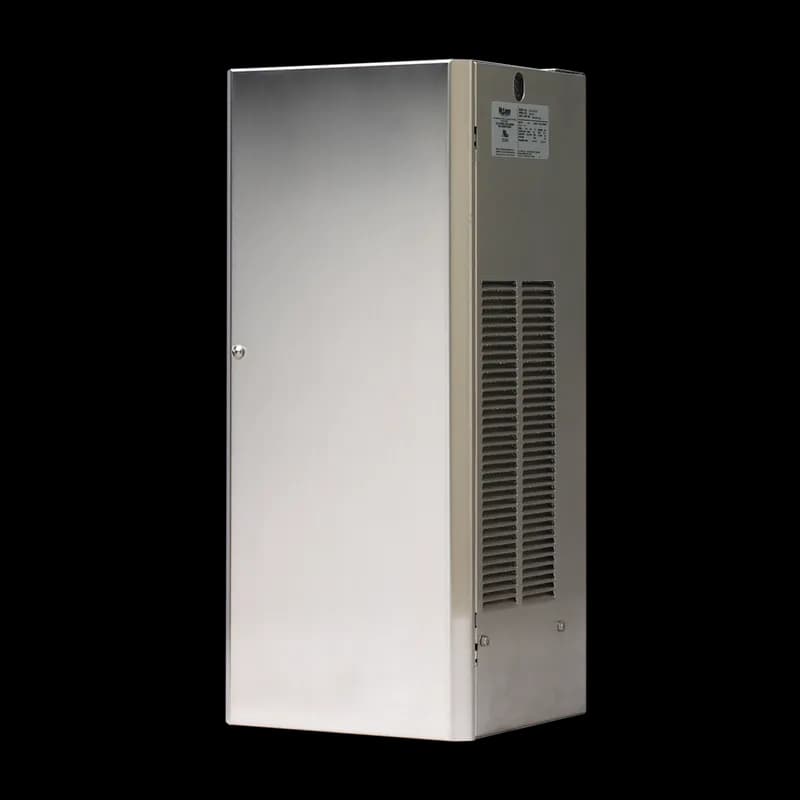

nVent CR230226G009 - ProAir Harsh Environment Outdoor with Crsn 3R CR23, 1600BTU 230V, Brushed, SS304

nVent CR230226G009 ProAir Harsh Environment Outdoor with Crsn 3R CR23, 1600BTU 230V, Brushed, SS304

UPC: 783510204990


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent ProAir Harsh Environment Outdoor Air Conditioner (SKU: CR230226G009) delivers 1600 BTU cooling for outdoor enclosures in corrosive environments. Rated for NEMA Type 3R protection, this unit features a brushed SS304 stainless steel enclosure with a smooth surface finish and minimal visible fasteners for easy cleaning and maintenance. The hinged front cover allows quick access to internal components, including the condenser coil, without removing the unit from the cabinet. A reusable aluminum mesh filter protects coils for sustained cooling performance. The robust reciprocating compressor and high-performance fans are designed for densely packed enclosures, operating reliably from -40°F to 131°F. Standard features include a mechanical thermostat and surge suppressor. With dimensions of 23in (H) x 10in (W) x 8.75in (D) and weighing 64lb, this air conditioner is ideal for telecommunications shelters, outdoor control panels, wastewater treatment facilities, and coastal installations where corrosion resistance and water protection are critical.
  • 1600 BTU cooling capacity for outdoor enclosures
  • Brushed SS304 stainless steel construction with smooth surface finish
  • NEMA Type 3R rated for protection against falling rain and sleet
  • Hinged front cover for quick access to internal components and condenser coil
  • Operating temperature range: -40°F to 131°F
  • Reusable aluminum mesh filter for sustained cooling performance
  • Dimensions: 23in (H) x 10in (W) x 8.75in (D), Weight: 64lb
  • Ideal for telecommunications, wastewater, coastal, and industrial control applications.
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • High-performance fans and blowers designed for densely packed enclosures

Specifications

Amperage Rating
2.5 A
Application
Controls and Drives; Power Distribution; Corrosive Environments
Btu Rating
1,600
Color
Unpainted
Depth
8.75 in
Finish
Brushed #3
Height
584 mm
Housing Material
Stainless Steel
Material
Stainless Steel 304
Max Current
1.7 A
Mechanical Advantage
Stainless steel optional
Model
Surface Mounted
NEMA Rating
12 Indoor, dust-resistant
Nominal Capacity Btu/h
1,733 Btu/h
Nominal Capacity Watts
508 W
Nominal Voltage
230 V
Number Of Phases
1
Operating Temperature
-40-131
Operating Temperature
-40-55
Power
469 W
Product Family
ProAir
Protection Rating
NEMA Type 12
Remote Access Control
No
Thickness
1.21 mm
Type
Air Conditioners
Voltage AC
200-250 V
Voltage Rating
230 VAC
Weight
64 lb
Width
254 mm
Package Dimensions (L x W x H)
21 IN x 14 IN x 27.5 IN
Package Dimensions (L x W x H)
53.34 cm x 35.56 cm x 69.85 cm
Package Weight (Imperial)
64.000 L
Package Weight (Metric)
29.030 kg
ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 230V, Brushed, SS304

CR230226G016

ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 230V, Brushed, SS304
DTS 3081 115V Type 4/4X 304 SS

13382344300

DTS 3081 115V Type 4/4X 304 SS
AC Unit 4,000 BTU/H 230 V - NEMA 4x - 304 SS

DTS3181A230N4SS

AC Unit 4,000 BTU/H 230 V - NEMA 4x - 304 SS
InRow RC 300mm Chilled Water

ACRC301S

InRow RC 300mm Chilled Water
ProAir Harsh Environment Indoor CR23, 1600BTU 115V, Lt Gray, Steel

CR230216G002

ProAir Harsh Environment Indoor CR23, 1600BTU 115V, Lt Gray, Steel
ProAir Harsh Environment Indoor CR23, 1600BTU 230V, Lt Gray, Steel

CR230226G002

ProAir Harsh Environment Indoor CR23, 1600BTU 230V, Lt Gray, Steel
The nVent industrial product (SKU 26969) is engineered for high-performance applications requiring precision and reliability. Manufactured in the US, this product meets stringent quality standards and is designed to withstand harsh industrial environments. Its robust construction ensures long-lasting durability, while its advanced features enhance operational efficiency. Ideal for use in industrial settings, this product delivers consistent performance and is backed by nVent's reputation for excellence. Whether for manufacturing, construction, or other industrial applications, this product provides the dependability and precision needed for critical operations.

26969

The nVent industrial product (SKU 26969) is engineered for high-performance applications requiring precision and reliability. Manufactured in the US, this product meets stringent quality standards and is designed to withstand harsh industrial environments. Its robust construction ensures long-lasting durability, while its advanced features enhance operational efficiency. Ideal for use in industrial settings, this product delivers consistent performance and is backed by nVent's reputation for excellence. Whether for manufacturing, construction, or other industrial applications, this product provides the dependability and precision needed for critical operations.
The nVent industrial product SKU 26979 is designed for high-performance applications in industrial settings. Engineered for durability and efficiency, this product meets rigorous standards for reliability and safety. Ideal for use in manufacturing, construction, and industrial automation, it offers superior functionality and long-lasting performance. Trusted by professionals, nVent products deliver consistent results in demanding environments.

26979

The nVent industrial product SKU 26979 is designed for high-performance applications in industrial settings. Engineered for durability and efficiency, this product meets rigorous standards for reliability and safety. Ideal for use in manufacturing, construction, and industrial automation, it offers superior functionality and long-lasting performance. Trusted by professionals, nVent products deliver consistent results in demanding environments.

Frequently Asked Questions

What are the physical dimensions of the air conditioner?

The unit measures 23 inches in height, 10 inches in width, and 8.75 inches in depth.

Does this unit have remote access control capabilities?

No, this unit does not have remote access control capabilities.

What is the weight of the air conditioner unit?

The weight of the air conditioner unit is 64lb.

Is this unit suitable for outdoor installation?

Yes, this unit is designed for outdoor installation and has a NEMA Type 3R protection rating.

What is the material of the air conditioner?

The air conditioner is made of Stainless Steel 304.

What is the operating temperature range for this air conditioner?

The operating temperature range is from -40 F to 131 F, with an optional low-ambient package.

What is the nominal cooling capacity of the unit?

The nominal cooling capacity is 508W or 1733 Btu/h.

What is the nominal voltage required for this unit?

The nominal voltage required for this unit is 230V.

How is maintenance access provided for this unit?

A hinged front cover allows quick access to all components for easy maintenance.

What type of filter is used to protect the coils?

A cleanable, reusable aluminum mesh filter is used to protect the coils.

How to Install the CR230226G009 Air Conditioner

This guide provides step-by-step instructions for installing and configuring the CR230226G009 air conditioner, ensuring proper functionality and setup.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors, Gasket kit

  1. Inspect the air conditioner

    Check for any visible damage and ensure the unit is functioning properly before installation. Connect the power cord to a grounded supply and run the unit for 5-10 minutes to verify operation.

  2. Prepare the enclosure

    Using the cutout dimensions provided in the manual, create the necessary openings for air intake and exhaust, as well as the mounting bolt hole pattern.

  3. Install gaskets

    Apply the gasket kit to the rear of the air conditioner to ensure a proper seal before mounting the unit.

  4. Mount the air conditioner

    Secure the air conditioner to the enclosure using the provided mounting bolts and washers. Ensure the unit remains upright during this process.

  5. Connect the power supply

    Refer to the nameplate for electrical requirements and connect the power cord to a properly grounded power supply. Avoid using an extension cord.

  6. Adjust the temperature controller

    If the unit is equipped with an automatic temperature controller, it is preset at the factory. If adjustments are needed, disconnect power, access the controller, and turn the adjustment screw to set the desired temperature.

  7. Verify installation

    After completing the installation, restore power to the air conditioner and check for proper operation. Ensure that all fans and the compressor are running smoothly.
