Contact for Pricing
Overview
- 3 Point latching mechanism for simple, reliable one-motion closure
- Seams continuously welded and ground smooth
- Rolled lip around all sides of enclosure body opening

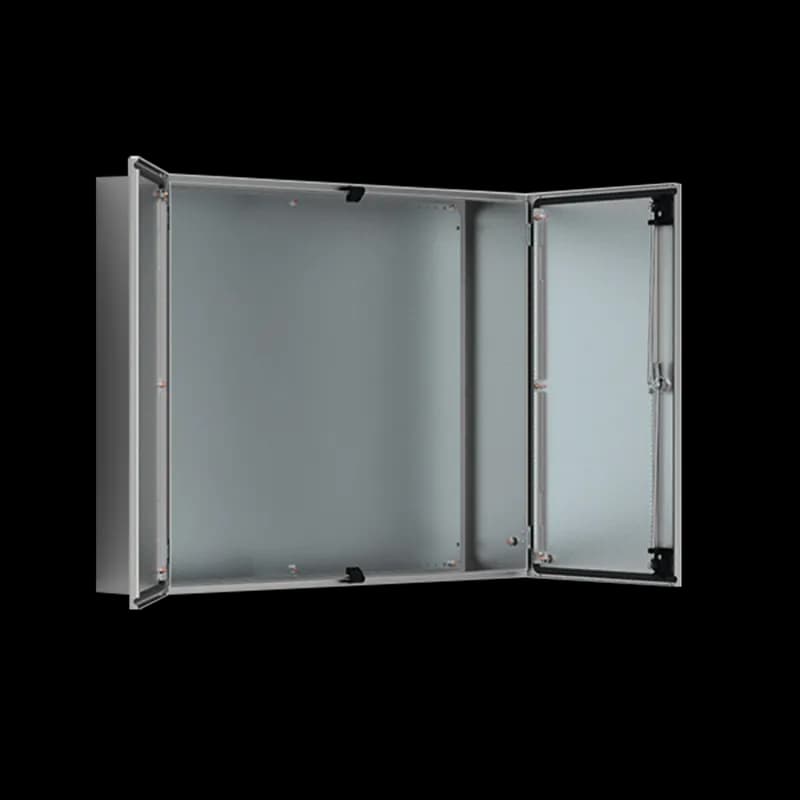

- Gasketed overlapping doors eliminate need for centerpost
- External mounting brackets
- Plated steel 3-point latching mechanism and keylocking handle
- Easily removable doors by pulling heavy-gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on doors; grounding studs on body
Specifications
Application | Controls and Drives;Corrosive Environments |
Application | Corrosive Environments; Controls and Drives |
Color | Unpainted |
Conductive Panel | A48P48G |
Depth | 12 |
Depth | 305 mm |
Finish | Brushed #4 |
Height | 48 in |
Height | 1,219 mm |
IP Rating | IP55 |
Material | Stainless Steel;Stainless Steel 304 |
Material | Stainless Steel 304 |
Modification Services | Yes |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Panel | A48P48 |
Panel Gauge | 10 |
Panel Size | 1118 x 1118 mm |
Panel Size | 44.00 x 44.00 in |
Protection Rating | NEMA Type 12 |
Size | 48.00x48.00x12.00 in |
Thickness | 51.40mm (2.024") |
Thickness | 14 ga |
Type | Stainless Steel Wall Mounted Industrial Enclosures |
Type Number | Type 12 |
Weight | 183 lb |
Width | 1,219 mm |
Width | 48 |
Width | 1,219 |
Package Dimensions (L x W x H) | 51.5 IN x 48.5 IN x 14.4 IN |
Package Dimensions (L x W x H) | 130.81 cm x 123.19 cm x 36.576 cm |
Package Weight (Imperial) | 183.000 L |
Package Weight (Metric) | 83.009 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the WS625112SS Controller
This guide provides step-by-step instructions for installing and wiring the WS625112SS controller securely and correctly.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter, Hole saw or Greenlee-type punch
Supplies needed:
Mounting screws, External toothed lockwashers, Watertight conduit hubs
- Install lockwasher
Place the enclosed external toothed lockwasher under one of the nuts securing the panel to ensure proper bonding between the panel and enclosure.
- Cut conduit openings
Use a hole saw or Greenlee-type punch to cut the required holes for conduit entry in the top, bottom, or side walls of the enclosure, following the size specifications provided.
- Install watertight conduit hub
Install the approved watertight conduit hub according to the manufacturer's instructions, ensuring it fits securely into the holes you have cut.
