Contact for Pricing

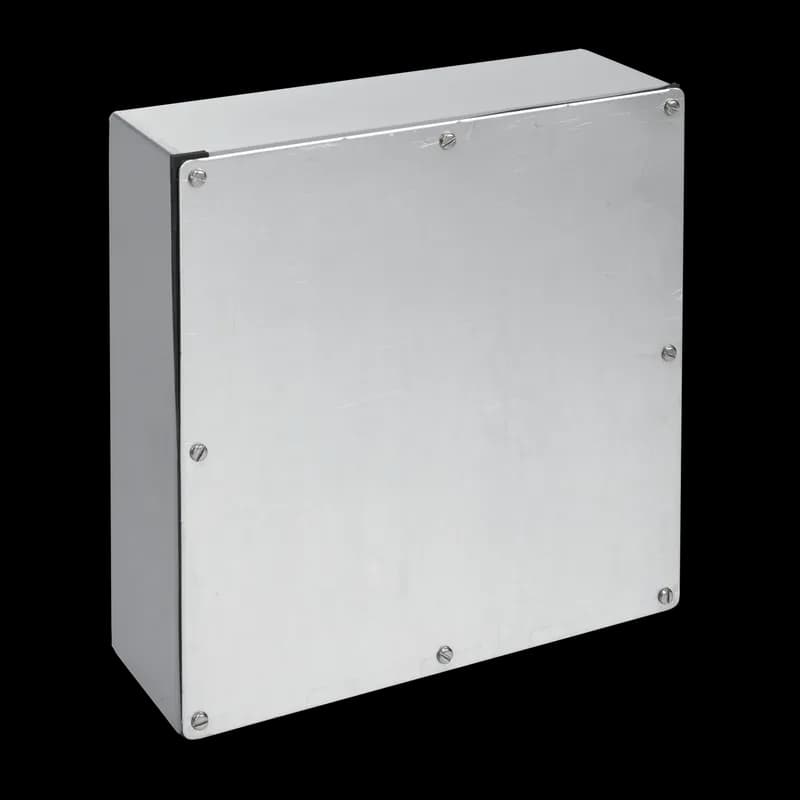

Overview
- Seams continuously welded and ground smooth
- External wall-mounting brackets for easy installation
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down clamps on one or three sides of door
- Removable heavy gauge stainless steel continuous hinge pin
- Hasp and staple for padlocking
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on door
- Removable door with continuous hinge
Specifications
Application | Controls and Drives |
Clamp Quantity | 2 |
Color | Gray |
Conductive Panel | A20P20G |
Data Pocket | Small |
Depth | 254 mm |
Depth | 10 IN |
Exterior Color | Gray |
Exterior Color Code | ANSI 61 |
Finish | Powder Coated |
Height | 508 mm |
Height | 20 mm |
Interior Color | Gray |
Interior Color | White |
Interior Color Code | ANSI 61 |
IP Rating | IP66 |
IP Rating | IP65 |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Wall/Floor Mounting |
Nema Rating | Type 4 |
NEMA Rating | 12 Indoor, dust-resistant |
NEMA Rating | 12 |
Panel | A20P20 |
Panel Size | 17.00 x 17.00 in |
Panel Size | 432 x 432 mm |
Protection Rating | NEMA Type 12 |
Series | LP |
Series | LP Type 4 Continuous Hinge Enclosure |
Size | 20.00x20.00x10.00 in |
Size | 20X20X10 |
Thickness | 51.40mm (2.024") |
Thickness | 14 ga |
Thickness | 1.9 mm |
Type | Mild Steel Wall Mounted Industrial Enclosures |
Type Number | Type 13 |
Weight | 41.1 lb |
Width | 508 mm |
Width | 20 IN |
Package Dimensions (L x W x H) | 25 IN x 21.6 IN x 12 IN |
Package Dimensions (L x W x H) | 63.5 cm x 54.864 cm x 30.48 cm |
Package Weight (Imperial) | 41.100 L |
Package Weight (Metric) | 18.643 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
Frequently Asked Questions
What NEMA and IP ratings does this enclosure have?
This nVent enclosure is rated NEMA Type 4 and IEC 60529 IP66, providing protection against dust and water ingress.
What material is the nVent A202010LP enclosure made from?
The enclosure is constructed from 14-gauge mild steel with a gray polyester powder coating for durability and corrosion resistance.
What type of hinge does the enclosure feature?
The enclosure features a continuous hinge design, which offers enhanced seal integrity and longevity compared to traditional butt hinges.
What is the closure mechanism for this enclosure?
The enclosure utilizes a three-sided clamp system for a secure and tamper-resistant closure.
What certifications does the nVent A202010LP enclosure hold?
This enclosure is UL 508A Listed and cUL Listed, making it suitable for demanding industrial applications.
How to Install the A202010LP Enclosure
Instructions for mounting and adjusting the A202010LP enclosure, including door and panel installation.
Estimated time: 1h
Tools needed:
Screwdriver, Punch, Vibrating hammer (electric or air powered)
Supplies needed:
Fasteners, Metal shims, Hinge pin
- Prepare for Mounting
Identify whether the enclosure is wall-mounted or floor-mounted. Wall-mounted enclosures have internal mounting means or external feet. Floor-mounted enclosures have floor stands with mounting plates. Ensure you have the proper fasteners for your chosen mounting method.
- Mount the Enclosure
Secure the enclosure to the wall or floor using the appropriate fasteners in all mounting holes. For floor-mounted enclosures, ensure the floor is level or use shims under the enclosure corners as needed. For wall-mounted enclosures, ensure the mounting surface is flat to prevent door issues.
- Adjust Door Closing (if necessary)
If the door does not open and close properly, or if it sags due to heavy equipment, adjust as follows: For single-door enclosures, place metal shims behind the bottom mounting foot closest to the hinge if the top of the door strikes the body opening lip. For two-door enclosures, place metal shims under the corners if the floor is not level, ensuring the doors meet evenly. Bolt the enclosure in place with doors closed before installing shims.
- Install the Interior Panel
When installing the interior panel, you may need to slightly bend mounting studs to align the panel. Position the panel on the studs that line up, then use a screwdriver inserted through the panel holes to pry the remaining studs into place.
- Remove or Invert Print Pocket
The print pocket on the door can be inverted or removed entirely as needed.
- Install Hubs and Devices
Use agency Type rated hubs or devices of equal rating to the enclosure. Ensure hole openings and installation follow manufacturer instructions. Verify adequate hole-to-hole spacing for tightening and that installation does not interfere with the enclosure's gasket or edges. Conduit connections should be on the top, bottom, and sides.
