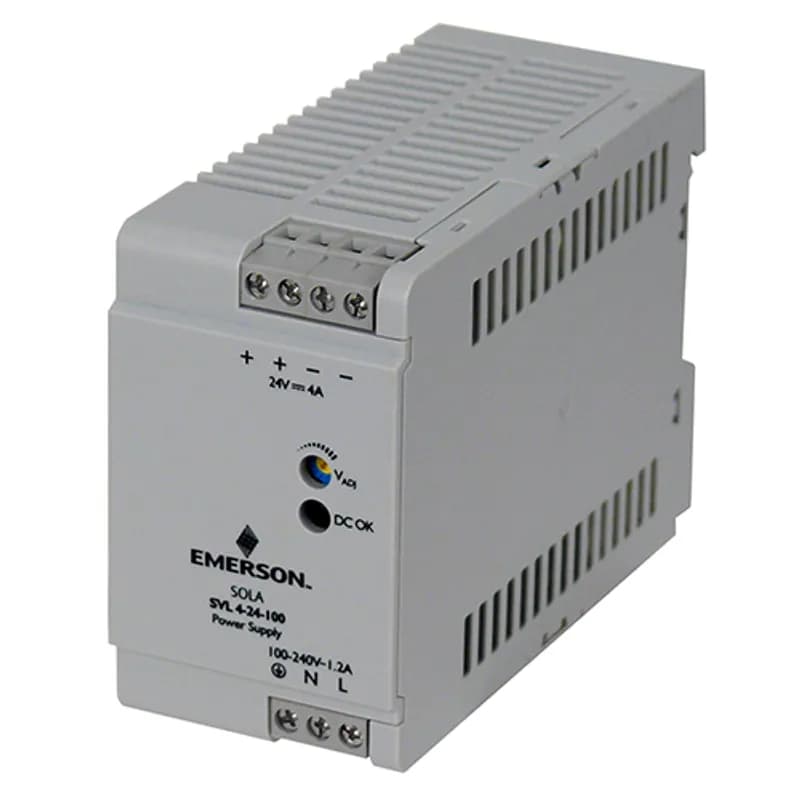

SolaHD SVL424100 - SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 4A, Max. Power: 96W, Frequency Rating: 50/65Hz, Single Phase, DIN Rail Mounting
SolaHD

SVL424100

UPC: 783472873210

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The SolaHD SVL424100 is a DIN rail-mounted power supply engineered for industrial automation and control systems. This 24VDC unit delivers a nominal output current of 4A, providing up to 96W of continuous power at 50/65Hz single-phase input. Designed for compatibility with standard industrial power grids, it supports applications including PLCs, motor drives, and sensor networks. The compact DIN rail mounting system enables rapid installation and easy maintenance in tight control cabinets, reducing system integration time. Built to SolaHD’s industrial-grade standards, the SVL424100 features stable voltage regulation with low ripple, ensuring reliable operation in demanding environments. Its single-phase input simplifies connection to existing infrastructure, while the 24VDC output matches common automation equipment requirements. With a maximum power rating of 96W, this unit is ideal for mid-tier automation tasks where consistent power delivery is critical. The SVL Essential Din Rail Series is trusted by manufacturers and system integrators for its dependable performance and space-efficient design. Whether deployed in factories, processing plants, or automated production lines, the SVL424100 helps maintain system uptime by providing a consistent, high-quality power source. The unit’s rugged construction withstands harsh conditions, while its compliance with industrial standards ensures long-term reliability. For facilities requiring a compact, high-efficiency power solution, the SVL424100 offers a proven choice with minimal operational overhead.
  • 24VDC output voltage for standard industrial automation equipment
  • 4A nominal current with 96W maximum power delivery
  • 50/65Hz single-phase input compatibility with global power grids
  • DIN rail mounting for space-efficient installation in control cabinets
  • Compact design for rapid deployment in tight industrial environments

Specifications

Amperage Rating
4 A
Application
ATM Machines;Heavy and Light Industrial Machinery;instrumentation;Scanners;Test and Measure Equipment;Vending Machines
Application
Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;
Brand Name
SolaHD
Cable Size
Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors;Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors
Cable Size
Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors
Current Rating
4 A
Efficiency
89 %typ
Enclosure
To be installed in an enclosure
Environmental Conditions
To be installed in a controlled environment
Frequency
50/65 Hz
Frequency Rating
50/60 HZ
Frequency Rating, Maximum
60 Hz
Frequency Rating, Minimum
50 Hz
Fuse Rating
Internally Fused
Height
2.95 IN
Length
3.93 in
Material
Plastic
Max Power
96 W
Mounting
DIN Rail
Mounting Type
DIN Rail Mounting
Phase
Single
Phase
1
Series
SVL Essential Din Rail Series
Special Features
Convection cooling;DC OK LED;Protection: short circuit, over voltage, overload, over temperature;Two year warranty;Universal Input
Special Features
Universal Input; Convection cooling; DC OK LED; Protection: short circuit, over voltage, overload, over temperature; Two year warranty
Standard
CE: IEC/EN 60950-1 2nd edition CB Scheme;UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1;UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition
Standard
UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme
Sub Brand
Sola
Type
SVL Essential Din Rail Series
Voltage Rating
24 VDC
Wattage
96 W
Width
1.77 in
Package Dimensions (L x W x H)
4.8 IN x 3.4 IN x 2.2 IN
Package Dimensions (L x W x H)
12.192 cm x 8.636 cm x 5.588 cm
Package Weight (Imperial)
0.800 L
Package Weight (Metric)
0.363 kg
