Contact for Pricing

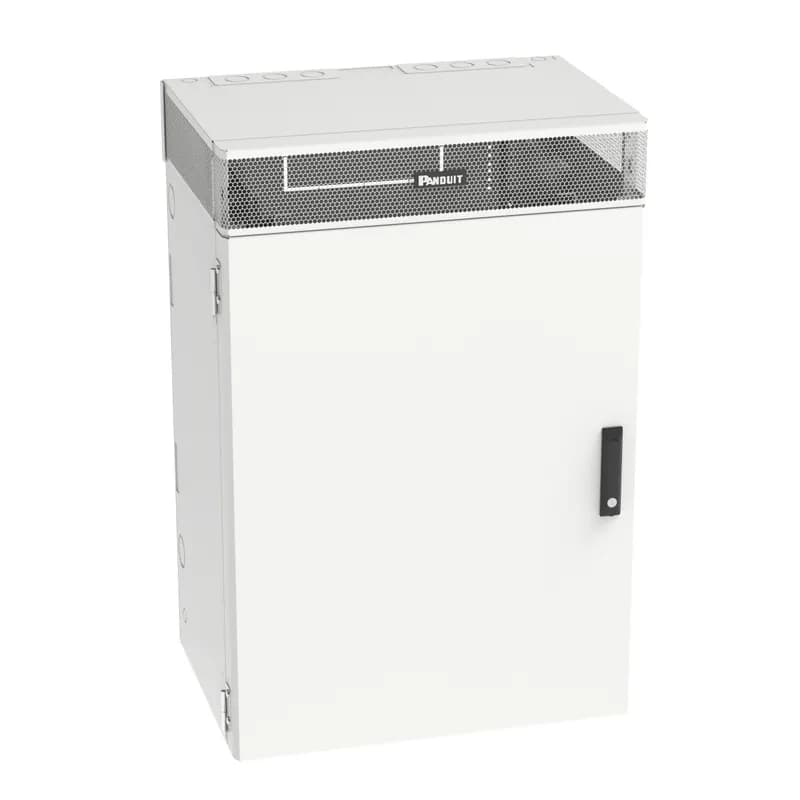

Overview
- Houses 6RU of passive and 6RU of active equipment
- Supports up to 36" of active equipment depth
- Adjustable rails for optimal configuration
- Low-profile design for space-constrained areas
- Protects connection points with a removable cover
Specifications
Color | White |
Depth | 14.7 in |
Depth | 373.38 mm |
Material | Steel |
Standard | IP20;UL 2416 |
Type | Wall Mount Enclosure |
Width | 28.5 in |
Width | 723.9 mm |
Package Dimensions (L x W x H) | 31.374 IN x 15.374 IN x 45.748 IN |
Package Weight (Imperial) | 94 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the maximum load capacity of the WME6WH?
The WME6WH has a maximum load capacity of 300 pounds (136 kg).
What is the IP rating of the WME6WH?
The WME6WH has an IP20 rating.
What are the dimensions of the WME6WH enclosure?
The WME6WH enclosure has dimensions of 42 inches in height, 28.5 inches in width, and 14.7 inches in depth.
How deep can equipment be mounted in the WME6WH?
The WME6WH can accommodate up to 36 inches of active equipment depth.
What materials are used in the WME6WH construction?
The WME6WH is made of steel and features a powder-coated finish.
What is the purpose of the optional filter kit?
The optional filter kit provides a foam filter that prevents dust and debris from entering the enclosure, maintaining a NEMA 1 rating.
How is equipment accessed in the WME6WH?
The enclosure features a removable and secure top cover and bottom plate for easy access to installed equipment.
What is the active rack unit capacity of the WME6WH?
The WME6WH has a capacity of 6 RU active and 6 RU passive.
Is the WME6WH compatible with Power over Ethernet (PoE) switches?
Yes, the enclosure is engineered to allow proper ventilation for various networking equipment, including PoE switches.
Can the WME6WH be used as a micro data center?
Yes, the WME6WH can be configured as a micro data center or telecommunications room.
How to Install the WME6WH Wall Mount Enclosure
This guide provides step-by-step instructions for installing and configuring the WME6WH wall mount enclosure, including mounting, wiring, and initial setup.
Estimated time: 1h
Tools needed:
Screwdriver, Wrench, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Grounding cable, Cable ties
- Inspect the mounting wall
Ensure the wall is flat and has sufficient strength to support the enclosure. Use shims if necessary to prevent distortion.
- Mount the enclosure
Remove the door, top lid, and bottom plate for easier installation. Mount the enclosure to wall studs using 3/8" lag screws, ensuring the top is 6' from the floor and there is adequate clearance on all sides.
- Install the electrical box
Decide whether to mount the electrical box inside or outside the enclosure. If inside, remove the appropriate knockout and mount the box using PEM studs. If outside, mount the box and run conduit through the knockout.
- Ground the enclosure
Run a grounding cable from the Telecommunications Grounding Busbar (TGB) to the specified M6 grounding stud on the enclosure base. Ensure the grounding conductor matches or exceeds the wire gauge for power delivery.
- Terminate backbone cable
Route the backbone cable to the enclosure and terminate it to the appropriate module. Mount the module in a surface mount box or use fiber cassette brackets as needed.
- Install active equipment
Insert the active equipment into the enclosure, ensuring proper alignment with the E-rails. Connect power cords to the electrical box and patch cords to the active network equipment.
- Connect patch cords
Connect horizontal cabling to the active network equipment using patch cords, starting from the outside of the patch panel and working towards the middle.
- Calibrate and test the setup
Verify all connections and ensure the equipment is powered on. Use a multimeter to check for proper voltage and connectivity.
