Panduit UTPCH7YLY - The TX5e Cat 5e UTP Patch Cord is a 7-Foot, Yellow cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit

UTPCH7YLY

UPC: 074983166138

Documents & Media
BrochureTechnical BulletinTechnical DrawingFull Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit UTPCH7YLY is a 7-foot, yellow TX5e Category 5e Unshielded Twisted Pair (UTP) patch cord. Constructed with 24 AWG stranded CM cable, it features Pan-Plug modular plugs for reliable connectivity. This patch cord is engineered to streamline network infrastructure management. Its innovative tangle-free latch design prevents snags during installation and maintenance, ensuring a fast and secure release. This feature significantly simplifies moves, adds, and changes (MACs) within your network, reducing downtime and labor costs. Furthermore, the UTPCH7YLY is enabled with RapidID technology, incorporating pre-installed barcodes directly onto the cable. This facilitates effortless port mapping and identification when used in conjunction with RapidID software, enhancing network visibility and operational efficiency. The cable's CM (Communications Multipurpose) rating indicates its suitability for use in general building spaces. Manufactured in the USA, this patch cord is a dependable component for your structured cabling system.
  • 7-foot, yellow TX5e Category 5e UTP patch cord
  • 24 AWG stranded CM cable with Pan-Plug modular plugs
  • Tangle-free latch prevents snags and ensures fast release
  • Streamlines moves, adds, and changes (MACs)
  • Enabled with RapidID for pre-installed barcodes and simple port mapping

Specifications

Application
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot Type
Modular Plug
Cable Type*
U/UTP
Color
Yellow
Conductor Material
Copper
Connection Type
Modular Plug (RJ45)
Jacket Material
Polyvinyl Chloride (PVC)
Length
7.00 In.
Material
CM Cable (CM rated jacket material)
Outside Diameter
0.215 in
Outside Diameter
5.461 mm
Performance Level*
Category 5e
Plug Type
Modular Plug
Series
TX5e
Size
7-Foot
Standard
Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz;IEC 60603-7;Meets ANSI/TIA-1096-A (formerly FCC Part 68);UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80
Temperature Rating, Maximum
140 F
Temperature Rating, Maximum
60 C
Temperature Rating, Minimum
140 F
Temperature Rating, Minimum
60 C
Type
Patch Cord
Wire Size
24 AWG
Package Dimensions (L x W x H)
8.95 IN x 8.3 IN x 0.7 IN
Package Weight (Imperial)
0.245 lbs

Similar Products

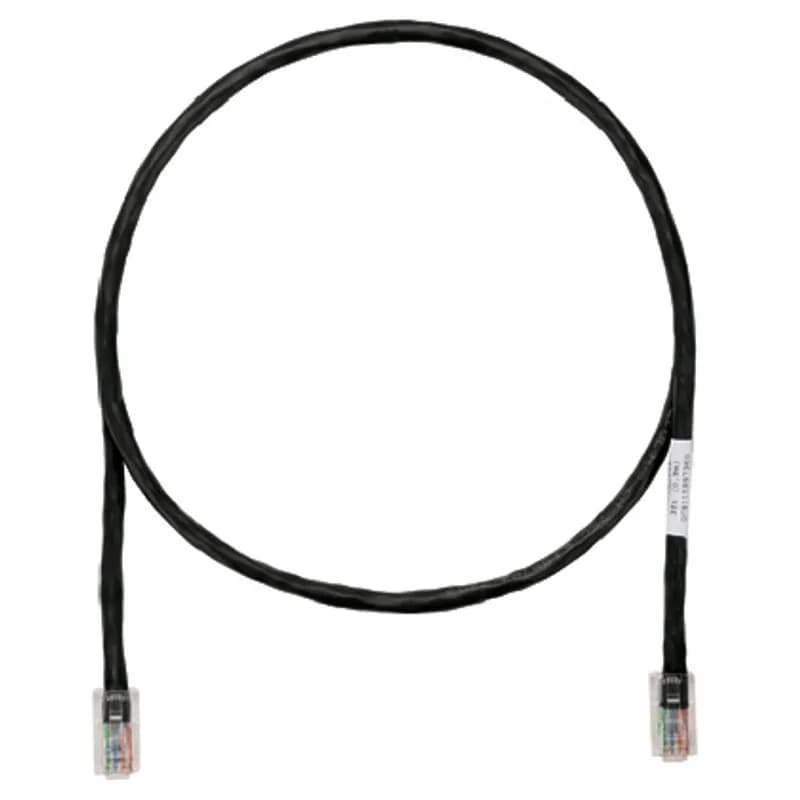

UTPCH7BLY
