Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*

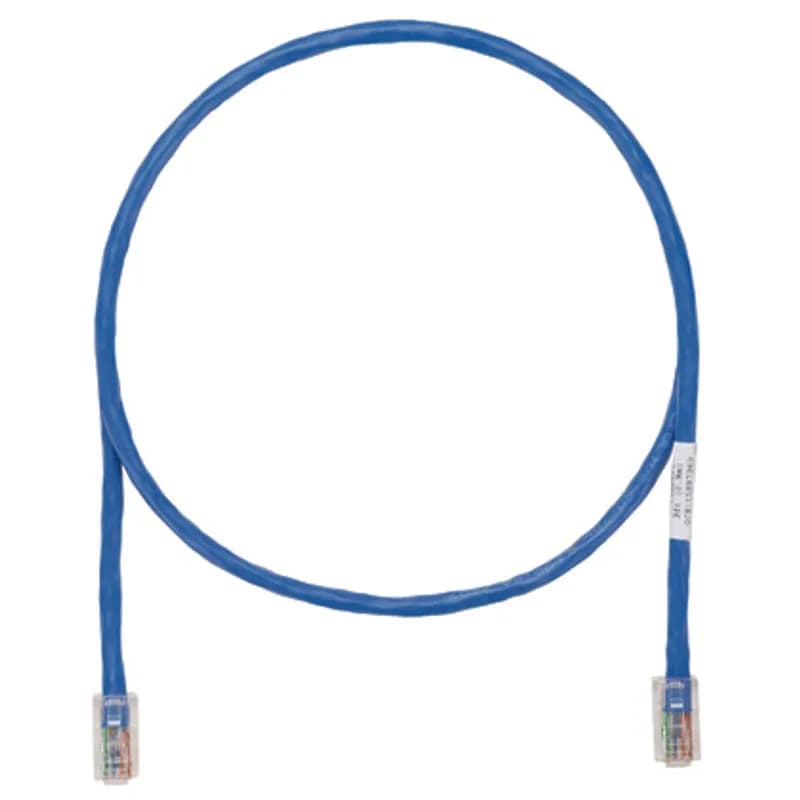

Overview
- 1-meter length for flexible connectivity between devices
- 24 AWG stranded copper conductors for reliable signal transmission
- CM-rated unshielded twisted pair (UTP) cable for general-purpose use
- Pan-Plug modular plugs with tangle-free latch for quick installation
- RapidID barcode for simplified port mapping and network asset tracking
Specifications
Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Blue |
Conductor Material | Copper |
Jacket Material | Polyvinyl Chloride (PVC) |
Length | 3.28 In. |
Outside Diameter | 0.215 in |
Outside Diameter | 5.461 mm |
Performance Level* | Category 5e |
Plug Type | Modular Plug |
Standard | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz;IEC 60603-7;Meets ANSI/TIA-1096-A (formerly FCC Part 68);UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80 |
Temperature Rating, Maximum | 140 F |
Temperature Rating, Maximum | 60 C |
Temperature Rating, Minimum | 140 F |
Temperature Rating, Minimum | 60 C |
Type | Patch Cord |
Wire Size | 24 AWG |
Package Dimensions (L x W x H) | 12 IN x 6 IN x 1.5 IN |
Package Weight (Imperial) | 0.142 lbs |
