Overview

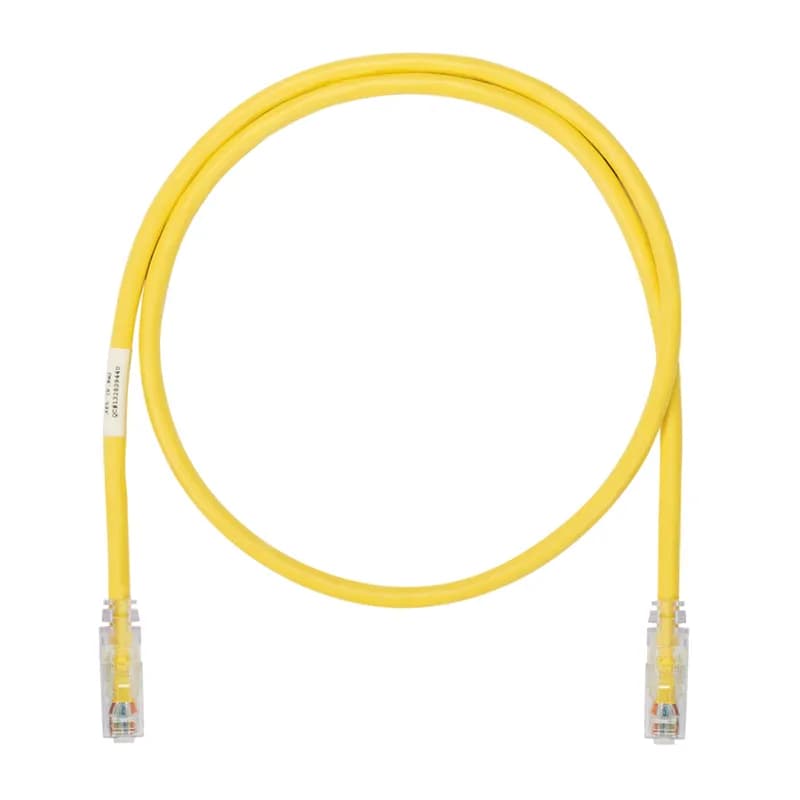

- Category 6A (SD) UTP patch cord for 10 Gb/s data transmission
- TX6A 10Gig modular plugs on both ends for consistent connectivity
- 2-meter length with yellow jacket for easy identification
- Supports 10GBASE-T, 1000BASE-T, PoE+, and PoE++ applications
- Exceeds TIA/EIA-568-C.2 standards for superior performance
Specifications
Application | (1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization(4) Back-bone aggregation (5) Parallel processing and high speed computing |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Yellow |
Conductor Material | Copper |
Connection Type | Modular Plugs |
Length | 6.56 In. |
Material | UTP |
Material* | Copper |
Outside Diameter | 0.24 In. |
Performance Level* | Category 6A |
Plug Type | Modular Plug |
Series | TX6A 10Gig |
Size | 2 meters |
Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, UL 1863, CSA standard C22.2, RoHS |
Temperature Rating | 140 F |
Type | Patch Cords with MaTriX Technology |
Wire Size | 26 AWG |
Package Dimensions (L x W x H) | 10 IN x 12 IN x 1.5 IN |
Package Weight (Imperial) | 0.304 lbs |
NK6XPPG24Y
The NetKey Cat 6A UTP Flat Punchdown Patch Panel terminates 4-pair, 22 26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The punchdown patch panel is 1 RU, made of steel, and is black.
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
Frequently Asked Questions
What are the operating temperature limits?
The operating temperature range is 14°F to 140°F (-10°C to 60°C).
What is the storage temperature range?
The storage temperature range is -40°F to 158°F (-40°C to 70°C).
What is the cable construction of the patch cord?
The patch cord is constructed of 26 AWG stranded copper cable with an enhanced performance modular plug.
What standards does the patch cord meet?
It exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz.
Is the patch cord compliant with PoE standards?
Yes, it is rated for 2500 cycles with IEEE 802.3af, 802.3at, and 802.3bt type 3 and type 4.
How many mating cycles is the patch cord rated for?
The patch cord is rated for 2500 mating cycles.
What is the maximum length for guaranteed performance?
Lengths from 1m to 15m are guaranteed to meet TIA and ISO requirements; lengths greater than 15m meet ISO component and TIA/ISO channel requirements.
What is the flammability rating of the patch cord?
The patch cord has a flammability rating of CM or LSZH.
What is the cable diameter?
The cable diameter is 0.240 inches (6.1mm) nominal.
What types of applications is this patch cord suitable for?
It is suitable for 10GBASE-T Ethernet, data center I/O consolidation, and high-speed computing applications.
