Contact for Pricing
Overview
- 1U patch panel with cold-rolled steel construction for durability
- Angled design minimizes patch cord bend radius for signal integrity
- Patented spring-loaded shutter on each port for dust and damage protection
- Front and rear port numbering for easy identification and maintenance
- Removable cable management shelves ensure bend radius compliance
- Compatible with DataGate UTP or shielded jacks (sold separately)
- Supports Category 6 performance and EIA 568A/B wiring standards
- Includes grounding screws for electrical safety compliance
Specifications
Application | NA |
Cable Entry | T568A/T568B |
Color | Black |
Depth | 4.32 In. |
Height | 1.72 IN |
Material | Steel |
Slot Capacity | NA |
Standard | CE and RoHS Compliant |
Type | SCSI |
Width | 19 In. |
Package Dimensions (L x W x H) | 20.2 IN x 3.4 IN x 6.4 IN |
Package Weight (Imperial) | 4.7 lbs |
TPK1A32R88S68Y

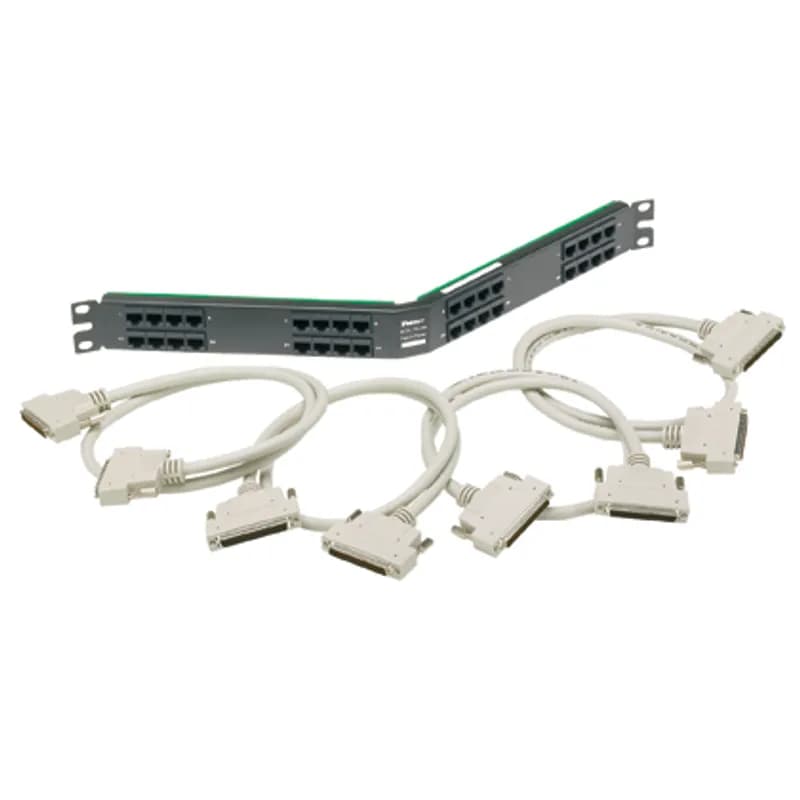

SCSI 32-port RJ45-to-HD68 angled patch panel kit in black has 32 RJ45 ports wired to four 68-pin SCSI connectors, includes four cable assemblies, each is three feet long with 68-pin DB68 male plugs on both ends, (1 RU).
TPA32R88S68Y
The RJ45-HD68 SCSI Patch Panel, Angled, 32 Port is a specialty patch panel with SCSI connector interface.
CFAPPBL1A
The Opticom angled fiber patch panel is used with FMT1A and FMT2A trays and holds up to four Opticom Cassettes or FAP adapter panels. It is compatible with all 19 wide EIA rack mount installations, is black powder coated steel, and fits in a 1 RU footprint.
CFAPPBL2A
The Opticom angled fiber patch panel is used with FMT1A and FMT2A trays and holds up to eight Opticom Cassettes or FAP adapter panels. It is compatible with all 19 wide EIA rack mount installations, is black powder coated steel, and fits in a 2 RU footprint.
CMLT19
The Lower Trough attaches to the bottom of a rack where it supports and contains cable with proper bend radius. It is compatible with any standard EIA 19 inch (483mm) rack or cabinet. The trough is 4RU in height, 4.5 in. deep and is black in color.
IABDIN4

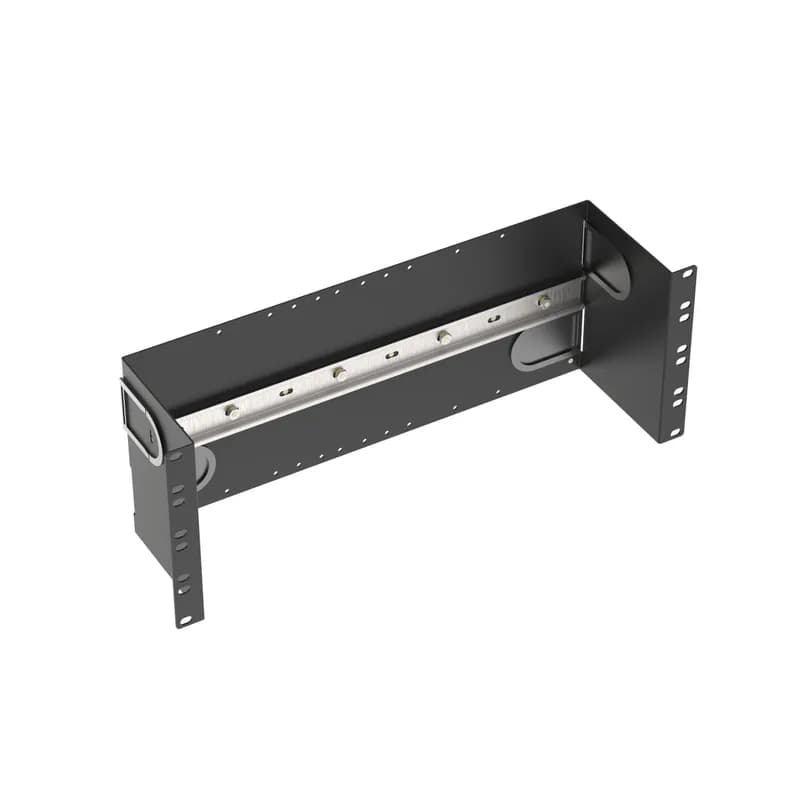

The industrial automation bracket installs DIN-mountable equipment into a standard EIA 19 inch (483mm) rack or cabinet. This bracket is made of steel, is 4 RU, and is black.
FWME4
The Panduit Opticom Wall Mount Fiber Enclosure is designed to manage and organize fiber distribution when space is limited. The FWME4 features 4 FAP/cassette slots and can be used as an interconnect or cross-connect in any telecommunications room and can use any standard FAP or FMP series adapter panel. The FWME4 is compatible with most Panduit Mini-Com , ST, SC and Coax products. It features 4 FAP/cassette slots, is made with steel and comes in black. 16.11 H x 12.25"W x 3.52 D (409.2mm x 311mm x 89.4mm)
PZRFE4U

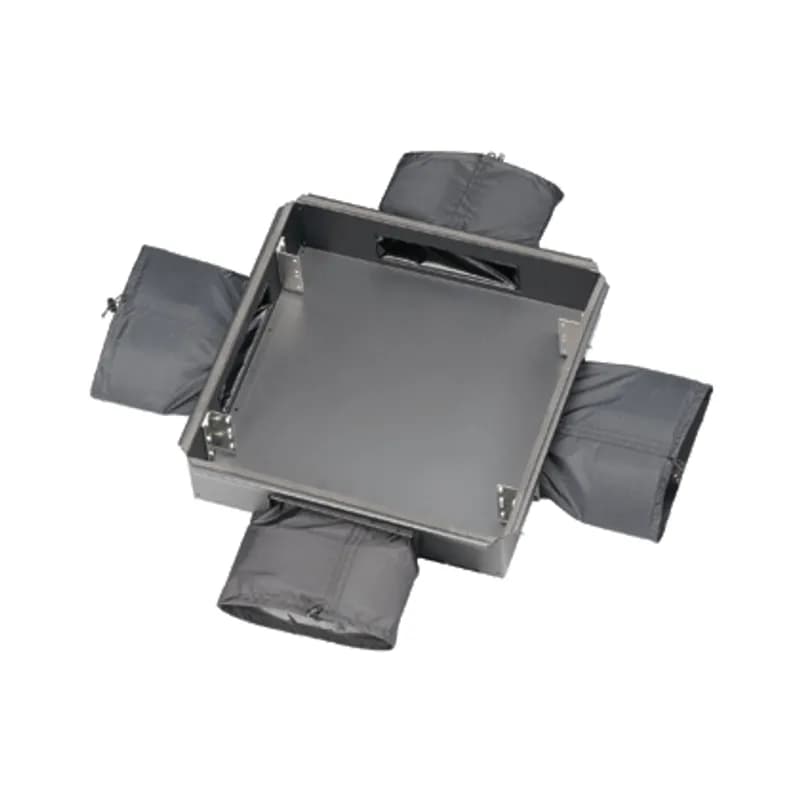

PanZone 4RU Raised Floor Enclosure; Accepts 4 RU of standard patch panels or 2 RU of QuickNet Pre-Terminated Assemblies or Cassettes
FLEX4UPN04
The HD Flex Fiber Panel is 4 RU and accepts up to 72 4-port HD Flex cassettes or Fiber Adapter Panels for a maximum density of 576 fibers.
FLEX4UPN06
The HD Flex Fiber Panel is 4 RU and accepts up to forty-eight 6 port HD Flex cassettes or Fiber Adapter Panels for a maximum density of 576 fibers.How to Install the TPK2A32R88S68 Patch Panel
This guide provides step-by-step instructions for installing and configuring the TPK2A32R88S68 patch panel for optimal performance in communication loop circuits.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the patch panel
Secure the TPK2A32R88S68 patch panel to a suitable surface or DIN rail using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the cable assemblies
Attach the 6 ft long cable assemblies to the patch panel. Ensure that the HD68 connector is connected to the patch panel and the VHD68 connector is routed to the appropriate device.
- Verify connections
Use a multimeter to check the continuity of the connections. Ensure that all ports are functioning correctly and that there are no shorts or open circuits.
- Configure the patch panel
Follow the wiring diagram provided in the documentation to configure the ports according to your network requirements. Ensure that the pairs are correctly aligned.
- Calibrate the system
Perform any necessary calibration procedures as per the manufacturer's guidelines to ensure optimal performance of the patch panel.
