Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview

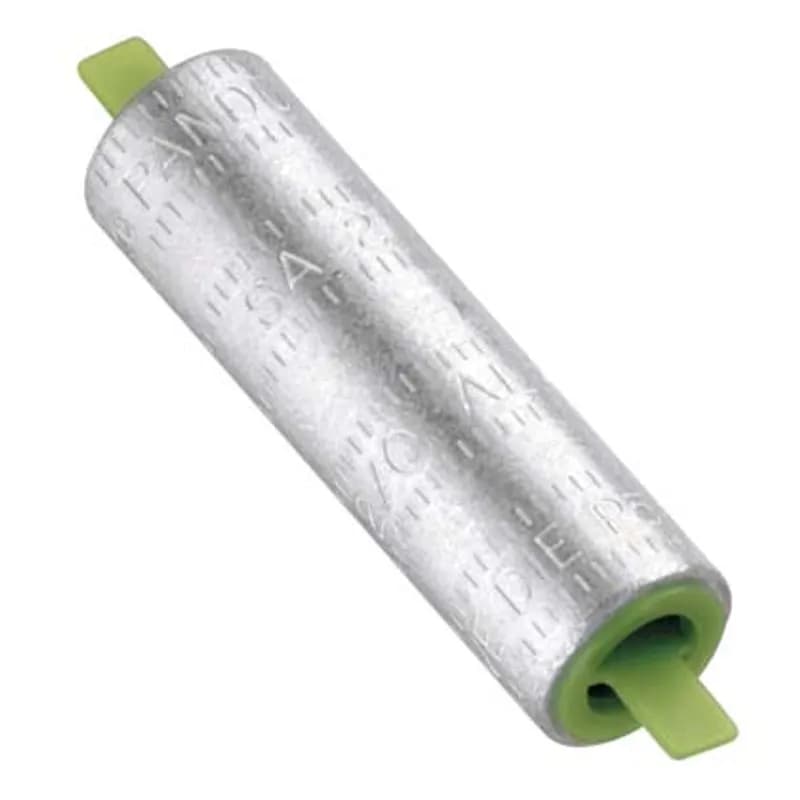

- High-strength extruded aluminum alloy body
- Tin-plated finish for corrosion resistance
- Pre-filled with oxide-inhibiting joint compound
- Designed for 250 kcmil aluminum conductors
- UL Listed and CSA Certified up to 600V and 90°C
Specifications
Color | Red |
Connection Type | Set Screw |
Finish | Tin-Plated |
Material | Aluminum |
Material | Aluminum alloy, tin-plated |
Mounting | 1.4375 In. |
Series | SA |
Size | 250 kcmil Code |
Size | 250 kcmil |
Standard | Yes |
Type | Aluminum Compression Connectors - Butt Splices |
Voltage Rating | 600 V |
Voltage Rating | NA V |
Package Dimensions (L x W x H) | 4.35 IN x 3.1 IN x 2.5 IN |
Package Weight (Imperial) | 0.6 lbs |
How to Install Aluminum Compression Connectors
This guide provides step-by-step instructions for installing aluminum compression connectors safely and effectively.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Heat gun or propane torch, Multimeter
Supplies needed:
Aluminum compression connectors, Heat shrink tubing, Belleville spring washers, Anti-oxidation compound
- Prepare the wire
Strip the wire insulation to the appropriate length as per the tool chart. Ensure not to nick or ring the conductor strands.
- Clean the wire
Wire brush the stripped wire to remove any oxide film before inserting it into the connector.
- Insert and crimp the connector
Insert the stripped wire into the connector until it stops. Use the specified crimping tool to crimp the connector evenly in the designated crimp zone.
- Inspect the crimp
After crimping, inspect the connection for sharp edges, flash, or burrs and remove any that are present.
- Apply heat shrink insulation
Cut the heat shrink tubing to the desired length, allowing for a minimum of 1-1/2 inch overlap on the wire insulation. Shrink the tubing using a heat gun or propane torch, moving from the crimped portion toward the insulated wire.
- Secure the connection
For a secure bolt connection, use Belleville spring washers. Wire brush unplated mounting surfaces and apply anti-oxidation compound before tightening the bolt to the recommended torque.
