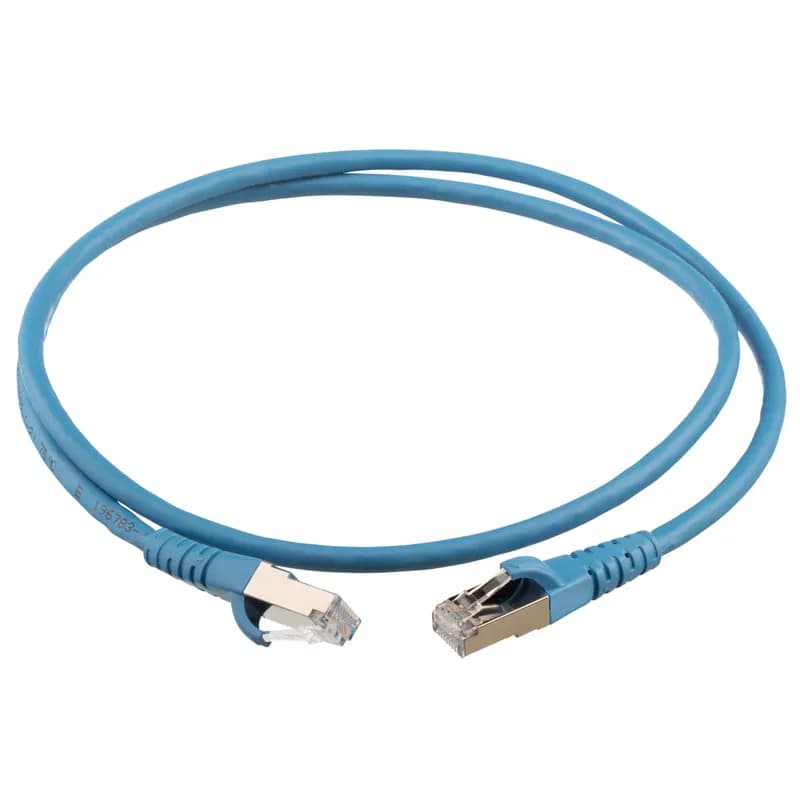

Panduit S6XPC15MIG The shielded Cat 6A Patch Cord is constructed of 26 AWG, twisted pair, stranded, LSZH…
UPC: 613056876521
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Category 6A/Class EA performance, exceeding ANSI/TIA-568.2-D and ISO 11801 standards up to 500 MHz.
- LSZH (Low Smoke Zero Halogen) cable jacket meeting IEC 60332-1, IEC 60754-1, IEC 61034-2 flame ratings.
- Integral pair manager and tangle-free latch for reduced snags and improved airflow in high-density environments.
- 15-meter length in international gray (IG) with black strain relief boots and enhanced performance shielded modular plugs.
Specifications
Application | 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM;Token;Used in all work area outlets and patch panels;wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) |
Color | International Gray |
Connection Type | Modular Plug |
Material | LSZH |
Outside Diameter | 0.25 in |
Outside Diameter | 6.35 mm |
Performance Level* | Category 6A |
Size | 15 meter |
Standard | Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz |
Temperature Rating, Maximum | 158 F |
Temperature Rating, Maximum | 70 C |
Temperature Rating, Minimum | 158 F |
Temperature Rating, Minimum | 70 C |
Type | Patch Cord |
Package Dimensions (L x W x H) | 12 IN x 14 IN x 1 IN |
Package Dimensions (L x W x H) | 30.48 cm x 35.56 cm x 2.54 cm |
Package Weight (Imperial) | 1.2600 L |
Package Weight (Metric) | 0.5715 kg |
NK6XPPG24Y
The NetKey Cat 6A UTP Flat Punchdown Patch Panel terminates 4-pair, 22 26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The punchdown patch panel is 1 RU, made of steel, and is black.
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
AL-R2-R2
Power Distribution Block (2) 500 MCM-4 AWG Primary (2) 500 MCM-4 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color Gray
Frequently Asked Questions
What is the cable gauge of the S6XPC15MIG?
The S6XPC15MIG uses 26 AWG stranded cable.
What is the length of the S6XPC15MIG patch cord?
The patch cord is 15 meters long.
What is the color of the S6XPC15MIG patch cord?
The patch cord is international gray in color.
Is the S6XPC15MIG flame-retardant?
Yes, the cable is LSZH (Low Smoke Zero Halogen) compliant.
Does the S6XPC15MIG include a strain relief boot?
Yes, it features a slender strain relief boot for easy access.
Does the S6XPC15MIG have a snag-free latch?
Yes, it includes a tangle-free latch to prevent snags during installation.
Is the S6XPC15MIG compatible with Cat 6A jacks?
Yes, it is designed for use with standard Cat 6A modular jacks.
What applications is the S6XPC15MIG suitable for?
The patch cord is designed for data centers, enterprise networks, and industrial environments requiring high-speed data transmission.
