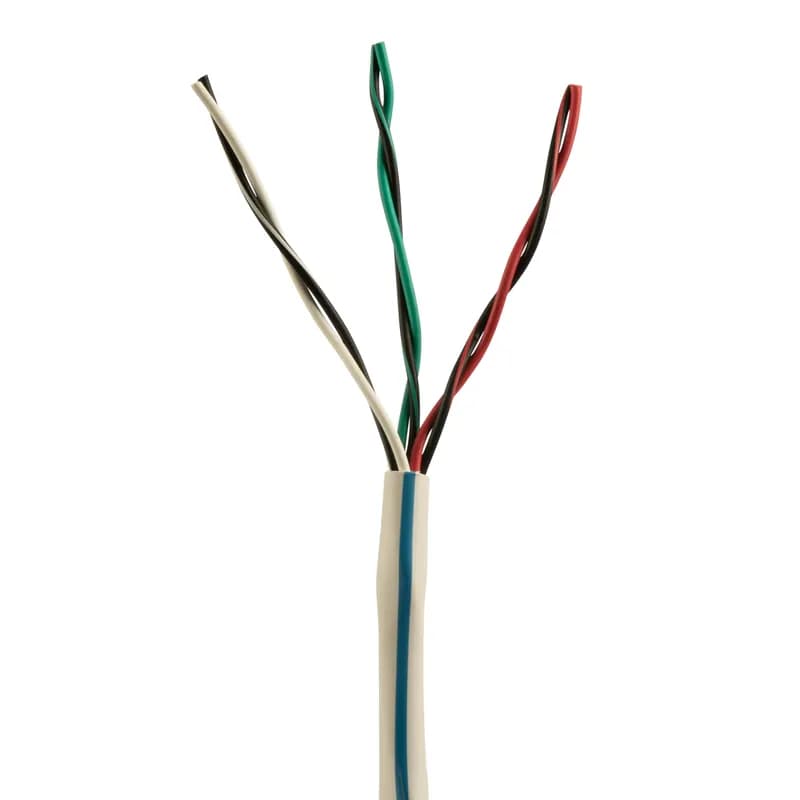

Panduit PXUP316ABU-CQ - Class 4 Copper Cable shall be UL listed and compliant with UL 1400-2 for Class 4 cabling. It shall be a component of an end-to-end Class 4 Fault Managed Power System (FMPS) that efficiently and safely carries significant power at higher voltages over long distances. The conductors shall be 16/19 AWG stranded copper insulated with polyvinyl chloride. The copper conductors shall be twisted in pairs and covered by a flame retardant (CMP) PVC jacket.
Panduit

PXUP316ABU-CQ

UPC: 613056898745

Contact for Pricing

Minimum Qty: 2000

Multiplier: 2000

*Contact for lower quantities*

Overview

The Panduit PXUP316ABU-CQ is a UL-listed Class 4 copper cable designed as a critical component for end-to-end Class 4 Fault Managed Power Systems (FMPS). This system architecture enables the efficient and safe transmission of significant power at higher voltages over extended distances, a capability crucial for modern industrial and commercial applications. The cable features 16/19 AWG stranded copper conductors, providing a robust foundation for power delivery. Each conductor is insulated with polyvinyl chloride (PVC) for reliable electrical isolation. These conductors are twisted into pairs, a standard practice that helps mitigate electromagnetic interference (EMI) and crosstalk, ensuring signal integrity and power quality. The entire assembly is protected by a flame-retardant (CMP) PVC jacket. This jacket not only offers mechanical protection but also meets stringent fire safety standards, making the PXUP316ABU-CQ suitable for installations where fire propagation is a concern. As part of a Class 4 FMPS, this cable contributes to a system that can detect and manage faults, enhancing safety and operational reliability. The 16/19 AWG construction balances flexibility for installation with the capacity for substantial power transfer.
  • UL Listed and compliant with UL 1400-2 for Class 4 cabling
  • Component of an end-to-end Class 4 Fault Managed Power System (FMPS)
  • 16/19 AWG stranded copper conductors for efficient power transmission
  • Polyvinyl chloride (PVC) insulation for reliable electrical isolation
  • Flame retardant (CMP) PVC jacket for enhanced safety and durability

Specifications

Color
Blue
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
Polyvinyl Chloride (PVC)
Material
PVC
Number Of Conductors
3
Outside Diameter
0.35 in
Outside Diameter
8.89 mm
Size
16/19 AWG
Standard
UL-1400-2 (Class 4), NEC Article 725, UL 13 type CL3P NEC Article 726, UL 1400-2 Type CL4P, NEC Article 800, UL 444 CMP
Temperature Rating
167 °F
Type
FMPS Power Cable
Package Dimensions (L x W x H)
48 IN x 44 IN x 40 IN
Package Dimensions (L x W x H)
121.92 cm x 111.76 cm x 101.6 cm
Package Weight (Imperial)
680.0000 L
Package Weight (Metric)
308.4480 kg
IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel

PSMDA7004BL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reel
Rigid copper bar 1750mm 32x5 solid

45103205

Rigid copper bar 1750mm 32x5 solid
Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 6 Str-14 AWG, Length 1-9/64, Width 3/8 Inch, Height 11/16 Inch, 13/64 Bolt Inch Hole

BTC0614

Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 6 Str-14 AWG, Length 1-9/64, Width 3/8 Inch, Height 11/16 Inch, 13/64 Bolt Inch Hole
