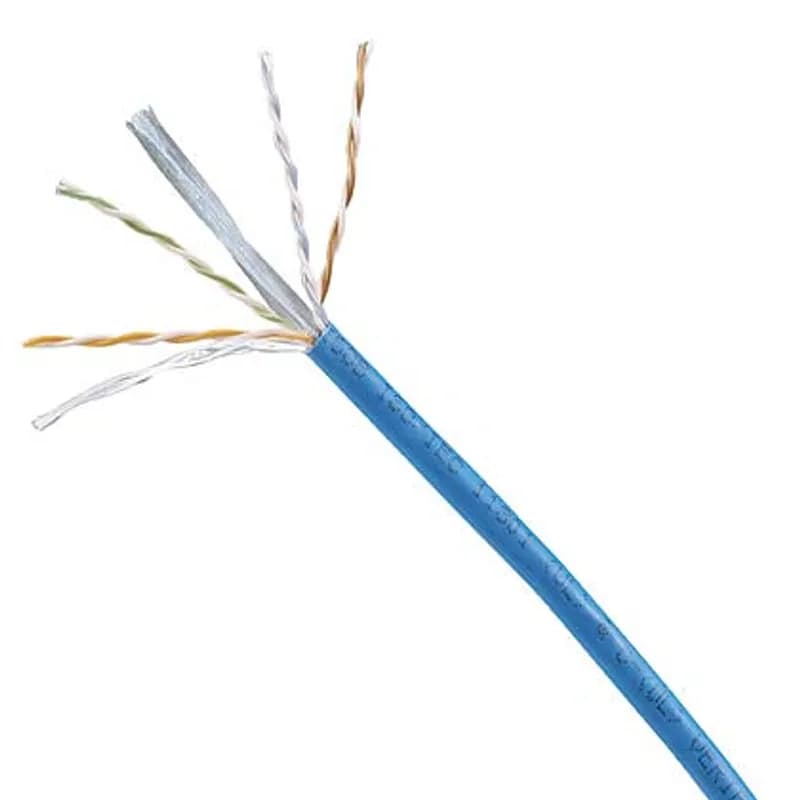

Panduit PUL6004GR-ME - Category 6 cable shall exceed IEC 61156-5 and ANSI/TIA-568.2-E Category 6 component standards. The conductors shall be 23 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs, separated by a cross divider, and all four pairs shall be covered by a LSZH jacket.
Panduit

PUL6004GR-ME

UPC: 613056899476

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Overview

Panduit Category 6 cable, SKU PUL6004GR-ME, is engineered to exceed IEC 61156-5 and ANSI/TIA-568.2-E Category 6 component standards, ensuring reliable data transmission for demanding network infrastructures. This cable features 23 AWG copper conductors, twisted in pairs for optimal signal integrity and reduced crosstalk. Each pair is separated by a robust cross divider, a critical design element that further enhances performance by minimizing internal pair interference. The entire assembly is protected by a Low Smoke Zero Halogen (LSZH) jacket, providing enhanced safety in environments where fire retardancy and low smoke emission are paramount. This construction makes the PUL6004GR-ME suitable for various commercial and industrial network installations requiring adherence to stringent safety and performance specifications. The use of HDPE insulation on the conductors contributes to the cable's overall electrical performance and durability. This Panduit cable is designed for applications where network stability and safety are non-negotiable, supporting data rates and bandwidth requirements consistent with Category 6 standards.
  • Exceeds IEC 61156-5 and ANSI/TIA-568.2-E Category 6 component standards
  • 23 AWG copper conductors for reliable signal transmission
  • HDPE insulation for conductor protection
  • Twisted pair construction with cross divider for reduced crosstalk
  • LSZH (Low Smoke Zero Halogen) jacket for enhanced safety

Specifications

Conductor Material
Copper
Construction
U/UTP
Insulation Material
Polyethylene
Jacket Material
Polyvinyl Chloride (PVC)
Material
HDPE, LSZH
Number of Conductors
4
Outside Diameter
0.24 in
Outside Diameter
6.096 mm
Series
PUL6004
Size
23 AWG
Temperature Rating
NA °F
Type
Bulk Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
15.75 IN x 15.75 IN x 12.6 IN
Package Dimensions (L x W x H)
40.005 cm x 40.005 cm x 32.004 cm
Package Weight (Imperial)
29.2900 L
Package Weight (Metric)
13.2859 kg
