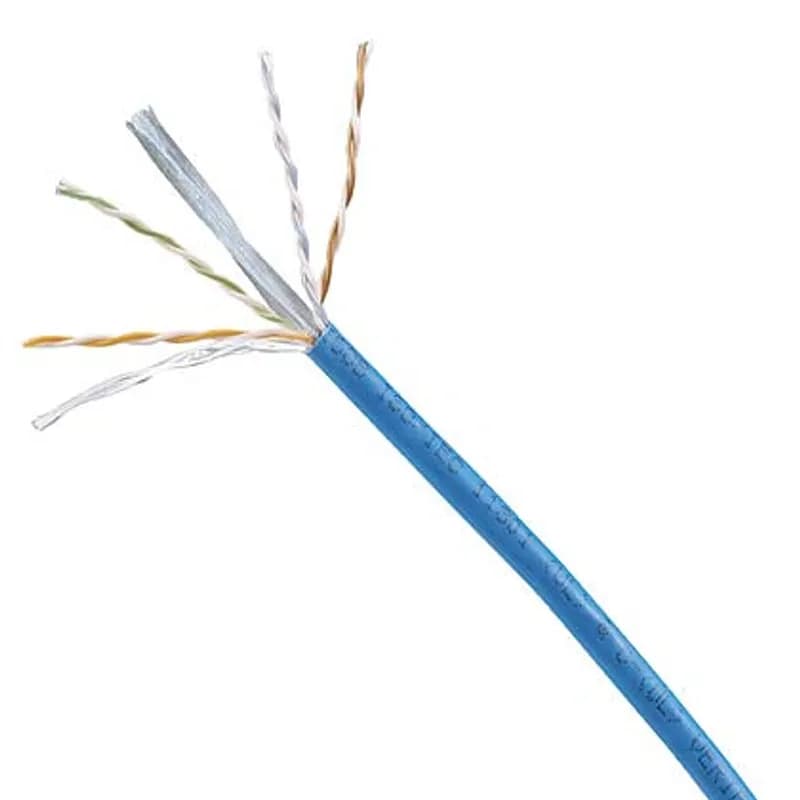

Panduit PUL6004WH-ME - Category 6 cable shall exceed IEC 61156-5 and ANSI/TIA-568.2-E Category 6 component standards. The conductors shall be 23 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs, separated by a cross divider, and all four pairs shall be covered by a LSZH jacket.
Panduit

PUL6004WH-ME

UPC: 613056899520

Contact for Pricing

Minimum Qty: 24

Multiplier: 24

*Contact for lower quantities*

Overview

The Panduit PUL6004WH-ME is a Category 6 network cable designed to meet and exceed IEC 61156-5 and ANSI/TIA-568.2-E component standards. This cable features 23 AWG copper conductors, ensuring robust signal integrity for data transmission. Each conductor pair is insulated with High-Density Polyethylene (HDPE) for reliable performance. The internal construction includes a cross divider to maintain pair separation, minimizing crosstalk and interference, which is critical for maintaining signal quality at higher frequencies. All four twisted pairs are enclosed within a Low Smoke Zero Halogen (LSZH) jacket. This LSZH jacketing is essential for installations where fire safety regulations are stringent, as it produces minimal smoke and no toxic halogenated gases when exposed to fire, contributing to a safer environment. The white color coding aids in cable management and identification within structured cabling systems. This cable is suitable for high-speed data networks, including Gigabit Ethernet and other demanding applications requiring reliable Category 6 performance. SKU: PUL6004WH-ME. UNSPSC: 26121634.
  • Category 6 compliance exceeding IEC 61156-5 and ANSI/TIA-568.2-E component standards.
  • 23 AWG copper conductors for reliable data transmission.
  • HDPE insulation on conductors for enhanced signal integrity.
  • Internal cross divider to minimize crosstalk and interference.
  • LSZH (Low Smoke Zero Halogen) jacket for fire safety compliance.

Specifications

Color
White
Conductor Material
Copper
Construction
U/UTP
Insulation Material
Polyethylene
Jacket Material
Polyvinyl Chloride (PVC)
Material
LSZH, HDPE, Copper
Number of Conductors
4
Outside Diameter
0.24 in
Outside Diameter
6.096 mm
Series
PUL6004
Size
23 AWG
Temperature Rating
NA °F
Type
Bulk Copper Cable
Voltage Rating
80 V
Package Dimensions (L x W x H)
15.75 IN x 15.75 IN x 11.2 IN
Package Dimensions (L x W x H)
40.005 cm x 40.005 cm x 28.448 cm
Package Weight (Imperial)
29.2900 L
Package Weight (Metric)
13.2859 kg
