Panduit PR2VFD0679 - The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 42 RU, 6 inches wide, and is black.
Panduit

PR2VFD0679

UPC: 613056394674

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Overview

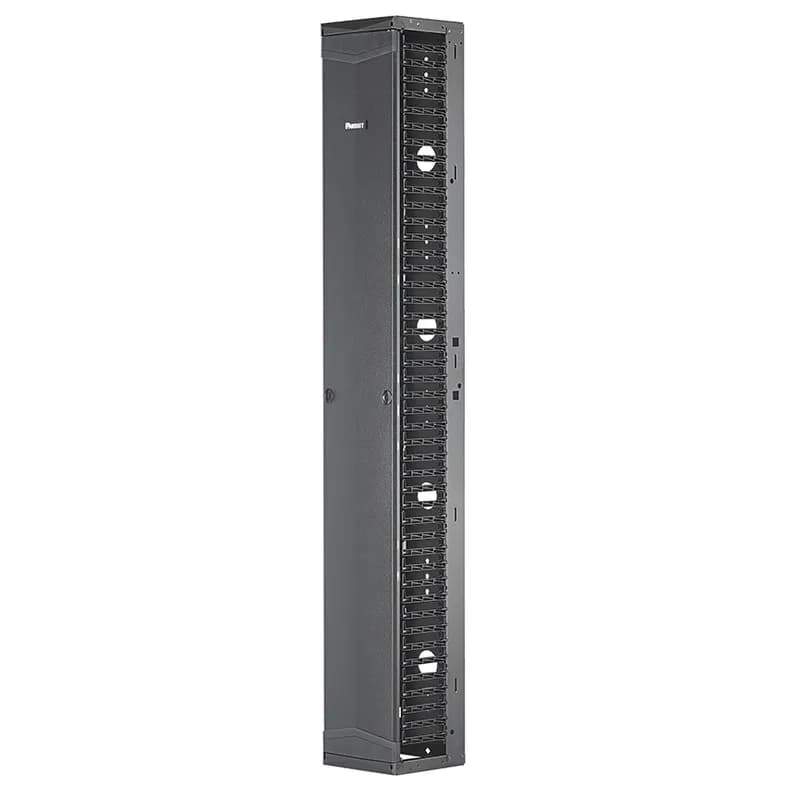

Optimize your network infrastructure with the Panduit PatchRunner 2 Vertical Cable Manager (SKU: PR2VFD0679). This fully pre-assembled, single-sided manager is engineered for ultra-high-density environments, significantly freeing up valuable floor space. Its robust construction features a durable metal backbone complemented by molded plastic fingers, ensuring reliable cable support and management. The manager includes a full-length, dual-hinging, push-to-close metal door, providing secure access and protection for your cabling. With a substantial 42 Rack Units (RU) capacity and a compact 6-inch width, this black manager maximizes space efficiency within your data center or network closet. The design prioritizes ease of use and cost reduction through its pre-assembled nature, minimizing installation time and labor. The molded plastic fingers are designed with rounded edges to prevent damage to cable insulation, a critical consideration for maintaining network integrity. Standard EIA hole spacing ensures compatibility for mounting to any standard rack. While the primary focus is on cable management, the Panduit catalog also highlights complementary products like the Open-Access™ Vertical D-Ring (CMVDR1, CMVDR1S), constructed from black flame-retardant polycarbonate. These D-rings offer flexible rotation for easy cable bundle insertion and removal, with 1/4” (M6) mounting holes for secure surface attachment. The catalog also details pre-configured industrial network zone systems and emphasizes cooling solutions that deliver air directly from the cold aisle to switch intake fans without requiring energy. This Panduit PatchRunner 2 Vertical Cable Manager is an essential component for structured pathways, offering open access and efficient organization. Its black, flame-retardant polycarbonate construction (for associated D-rings) and metal backbone ensure durability and safety in demanding network environments. For further details on connectivity options, including stainless steel and shielded solutions, consult panduit.com.
  • Ultra-high-density capability frees up valuable floor space
  • Fully pre-assembled manager lowers overall costs
  • Single-sided manager with metal backbone and molded plastic fingers
  • Includes one full-length metal, dual-hinging, push-to-close door
  • 42 RU capacity, 6 inches wide, black finish

Specifications

Color
Black
Depth
12 In.
Environmental Conditions
Indoor
Material
Metal and Plastic
Series
PatchRunner 2
Size
42 RU, 6 inches wide
Standard
RoHS Compliant, UL 2416, CSA C22.2
Type
Single-Sided Manager
Width
6 In.
Package Dimensions (L x W x H)
86.75 IN x 14.5 IN x 8.5 IN
Package Weight (Imperial)
29.95 lbs
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, and is black.

PR2VFD0696

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, and is black.
The fiber splice tray kit is for up to 12 ribbon fiber fusion splices (144 fibers). It fits in Panduit FRMHSS-4RU and FRMHSST-4RU 4RU Splice Enclosures and FWMHSS*S-3456 and FWMHSS*S-6912 Wall Mount Fiber Splice Enclosures.

FST144R

The fiber splice tray kit is for up to 12 ribbon fiber fusion splices (144 fibers). It fits in Panduit FRMHSS-4RU and FRMHSST-4RU 4RU Splice Enclosures and FWMHSS*S-3456 and FWMHSS*S-6912 Wall Mount Fiber Splice Enclosures.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VFD0696

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 10 inches wide, and is black.

PR2VFD10

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 10 inches wide, and is black.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 12 inches wide, and is black.

PR2VFD1296

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 12 inches wide, and is black.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 42 RU, 12 inches wide, and is black.

PR2VFD1279

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 42 RU, 12 inches wide, and is black.
The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 12 inches wide, and is black.

PR2VFD12

The PatchRunner 2 Vertical Cable Manager pairs ultra-high-density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs. The single-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 12 inches wide, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VSD06

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 45 RU, 6 inches wide, 6 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VSD0696

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes one full-length metal, dual-hinging, push-to-close door. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.
The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

PE2VD0696

The PatchRunner 2 Enhanced Vertical Cable Manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager installs easily to speed up deployment. The dual-sided manager has a metal backbone with molded plastic fingers, and includes two full-length metal, dual-hinging, push-to-close doors. The manager is 52 RU, 6 inches wide, 6 bonus vertical RU, and is black.

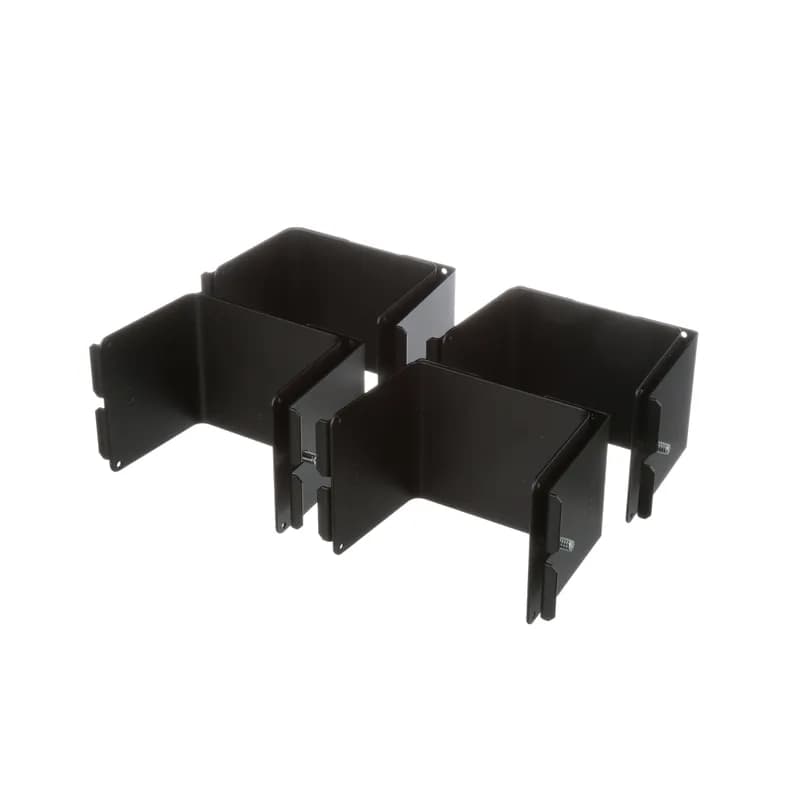

FiberRunner Expansion Splice Kit 4x4

FRESPLKT4

FiberRunner Expansion Splice Kit 4x4
Finger Kit, 100mm (3.9) depth that attaches to posts on 48 RU cabinets. Color: Black

SN18F

Finger Kit, 100mm (3.9) depth that attaches to posts on 48 RU cabinets. Color: Black

Frequently Asked Questions

How many grommets are included in the PR2VGK kit?

The PR2VGK kit includes five pass-through bend radius grommets.

What is the Panduit PR2VGK accessory?

The PR2VGK is a kit containing five pass-through bend radius grommets.

Does this manager require horizontal cable managers?

No, the vertical panel can manage all cables on the rack without needing horizontal cable managers.

How do these managers save rack space?

They free up rack space for additional patch panels, active equipment, or cable pathways by eliminating horizontal managers.

What is the primary application of these cable managers?

These managers are designed for managing high-density networking equipment, mounting to Standard EIA Racks, and reducing required space.

Why is integral bend radius control important?

Integral bend radius control maintains the cable bend radius, ensuring network performance and system reliability.

Are doors included with the cable managers?

Yes, doors ship with the managers, simplifying the ordering process.

What safety standards do these managers meet?

These cable managers meet UL 2416 and CSA C22.2 safety standards.

What are the dimensions of the PR2VFD0679 manager?

The PR2VFD0679 manager is 42 RU, 78.9 in. high, 6.0 in. wide, and 12.0 in. deep.

What are the available heights and widths for these managers?

Managers are available in heights of 6.5 ft. (79 RU) or 8 ft. (96 RU), and widths of 6 in., 8 in., 10 in., or 12 in.

How to Install the PATCHRUNNER 2 Vertical Cable Manager

This guide provides step-by-step instructions for installing the PATCHRUNNER 2 Vertical Cable Manager onto a rack, ensuring proper mounting and configuration.

Estimated time: 45m

Tools needed:

Screwdriver, Wrench, Dead blow hammer

Supplies needed:

M10 Serrated Flange Bolts, M10 Serrated Flange Nuts, M6 x 16mm Serrated Hex Head Bolts, M6 Serrated Hex Head Nuts

  1. Mount the Vertical Cable Manager

    Secure the Vertical Cable Manager to the rack using (4) M10 Serrated Flange Bolts and (4) M10 Serrated Flange Nuts. Ensure that the manager is level and firmly attached.

  2. Install the Door

    Align the door hinge pins with the slots on the door supports and push the door closed until it is securely locked in place.

  3. Install the Bottom and Top Panels

    Attach the bottom panel using the integrated hook and fasten it with (2) M10 x 16mm serrated hex head bolts and (2) M10 serrated hex head nuts. Repeat the process for the top panel using (2) M6 x 16mm serrated hex head bolts and (2) M6 serrated hex head nuts.

  4. Install the Waterfall

    Adjust the width of the waterfall to fit your rack by loosening the (4) Phillips head screws. Align the waterfall slots around the backbone part of the manager and fasten it using (4) M6 x 8mm screws.
