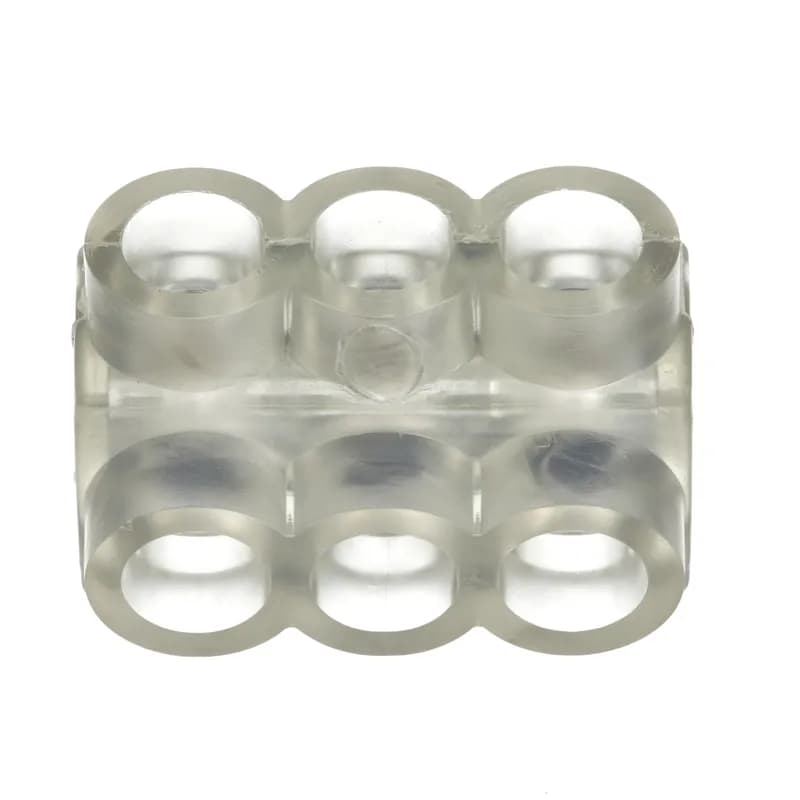

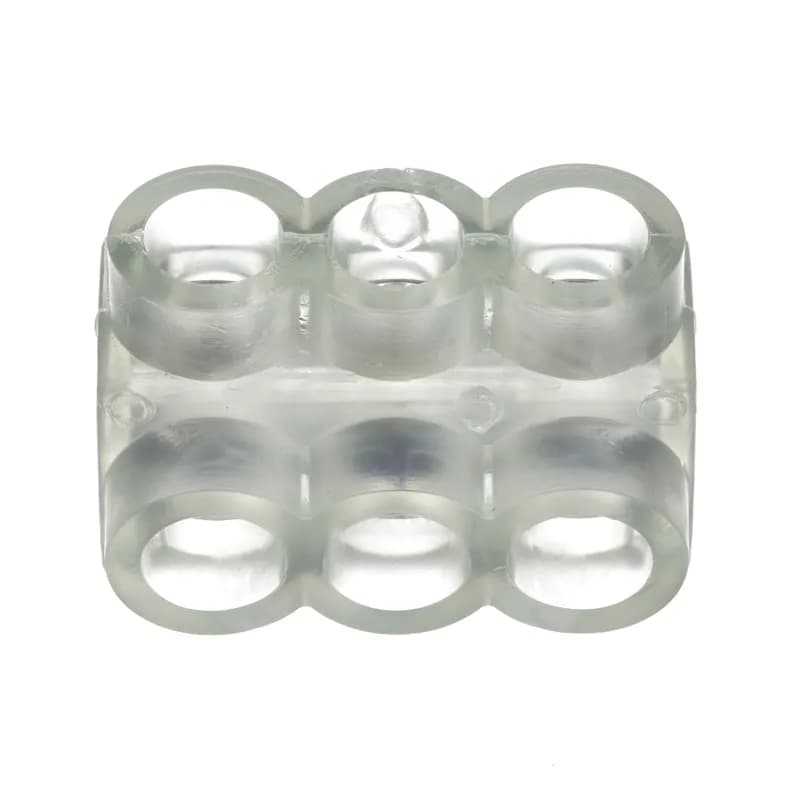

Panduit PCSB2/0-3-6 Multi-Tap connector, double-sided, clear insulation, 3 ports, 2/0 - #14 STR, #10 - #14…
UPC: 074983774494
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3-port design for versatile wiring applications
- Supports 2/0 to #14 AWG stranded and #10 to #14 AWG solid conductors
- Clear PVC insulation enables visual inspection of conductor insertion
- Dual-sided entry allows offset and opposite conductor entry
- Pre-filled with oxide-inhibiting compound to prevent oxidation
Specifications
Amperage Rating | NA A |
Application | Aluminum or Copper Code Conductors |
Color | Clear |
Conductor Range (Main/Primary) | 2/0 - #14 AWG STR #10 - #14 AWG SOL |
Connection Type | Screw Terminal |
Insulation | PVC |
Insulation | Clear PVC |
Material | Aluminum / Clear PVC |
Number Of Mounting Holes | NA |
Number of Ports | 3 |
Poles | 3 |
Series | PCSB |
Size | 2/0-#14 AWG Stranded, #10-#14 AWG Solid |
Standard | UL listed and CSA certified for use up to 600V & Temperature Rated to 90 C |
Standard | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
Temperature Rating, Maximum | NA |
Temperature Rating, Minimum | NA |
Type | Double-Sided Multi-Tap Connector |
Voltage Rating | 600 V |
Package Dimensions (L x W x H) | 7.65 IN x 3.4 IN x 3.4 IN |
Package Weight (Imperial) | 1.81 lbs |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
WL2PSC
Wide Range Insulating Sleeve with Plug - for Conductors with O.D. over Insulation .30 inches - .923 inches for use with 2 Bolt Connectors, Types: UPC, UPT, UPY, and SCU, 600 Volt Max

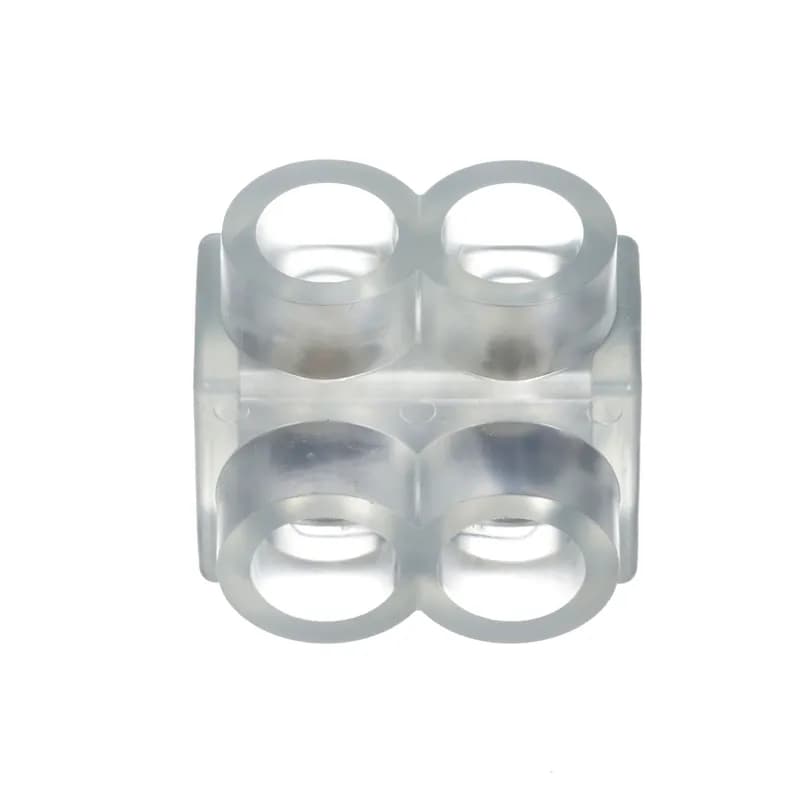

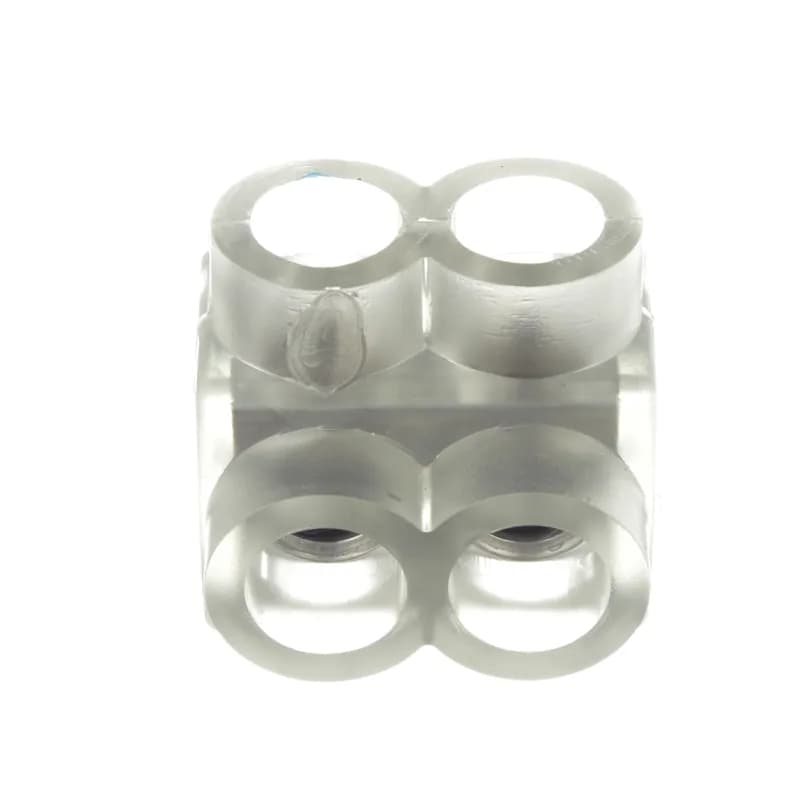

PCSB350-2-4
Multi-Tap connector, double-sided, clear insulation, 2 ports, 350 kcmil - #10 STR, #10 SOL.
PCSB350-3-4
Multi-Tap connector, double-sided, clear insulation, 3 ports, 350 kcmil - #10 STR, #10 SOL.

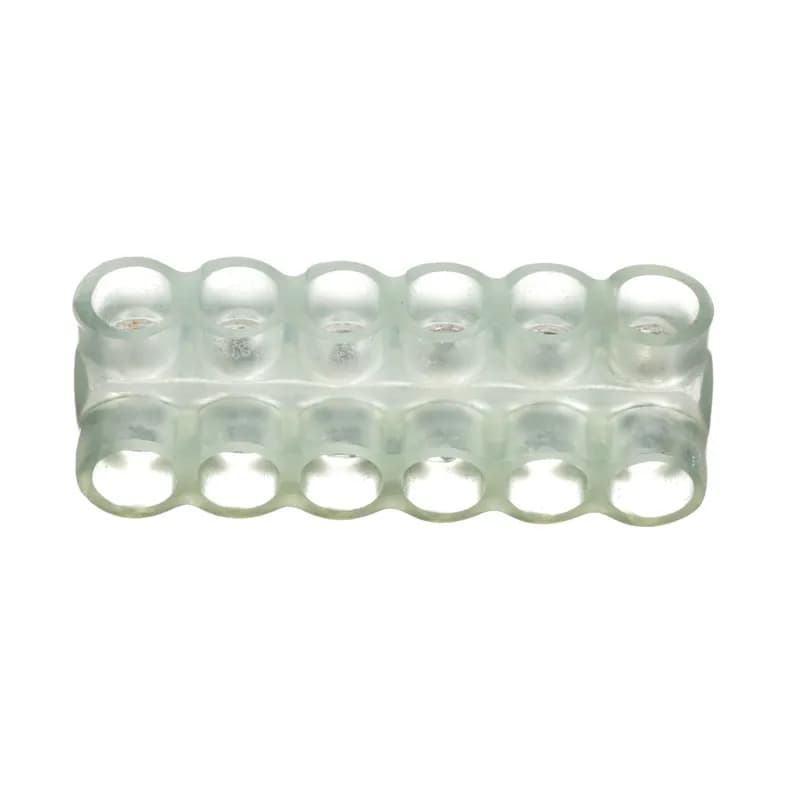

PCSB2/0-6-6
Multi-Tap connector, double-sided, clear insulation, 6 ports, 2/0 - #14 STR, #10 - #14 SOL.

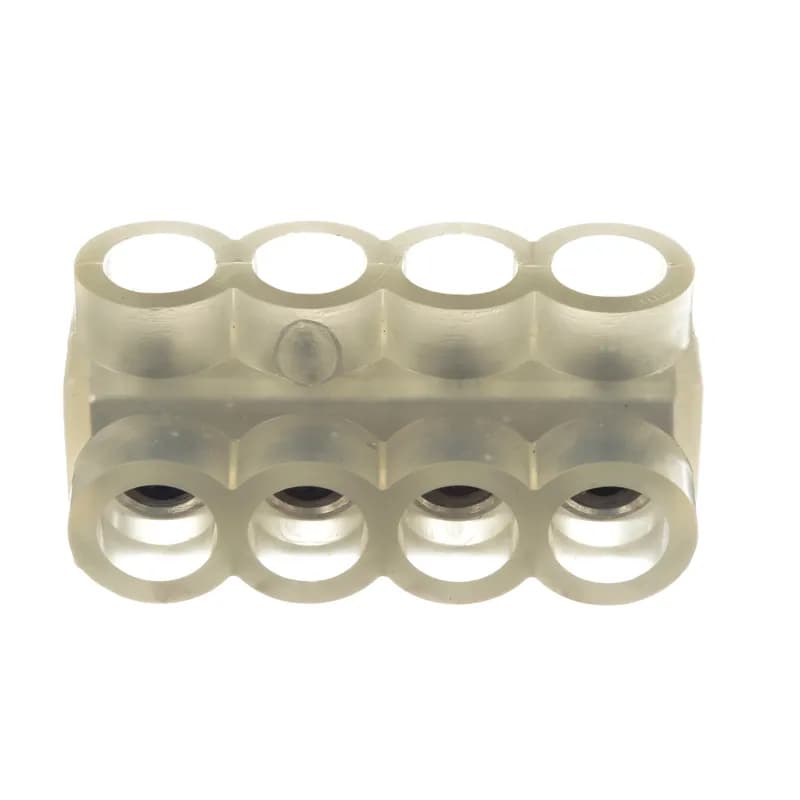

PCSB350-4-3
Multi-Tap connector, double-sided, clear insulation, 4 ports, 350 kcmil - #10 STR, #10 SOL.
PCSB350-6-2
Multi-Tap connector, double- sided, clear insulation, 6 ports, 350 kcmil - #10 STR, #10 SOL.Frequently Asked Questions
Does the PCSB2/0-3-6 include oxide-inhibiting compound?
Yes, the conductor ports are pre-filled with an oxide-inhibiting joint compound to prevent surface oxidation.
What wire sizes does the PCSB2/0-3-6 support?
The connector supports 2/0 to #14 AWG stranded conductors and #10 to #14 AWG solid conductors.
How many conductors can be connected per port?
Only one conductor is allowed per port.
What material is the PCSB2/0-3-6 connector body made from?
The connector body is made from high-strength extruded aluminum alloy.
What type of insulation does the PCSB2/0-3-6 use?
The connector uses clear blue PVC insulation for visual inspection of conductor insertion.
What is the temperature rating of the PCSB2/0-3-6?
The connector has a temperature rating of 90°C.
