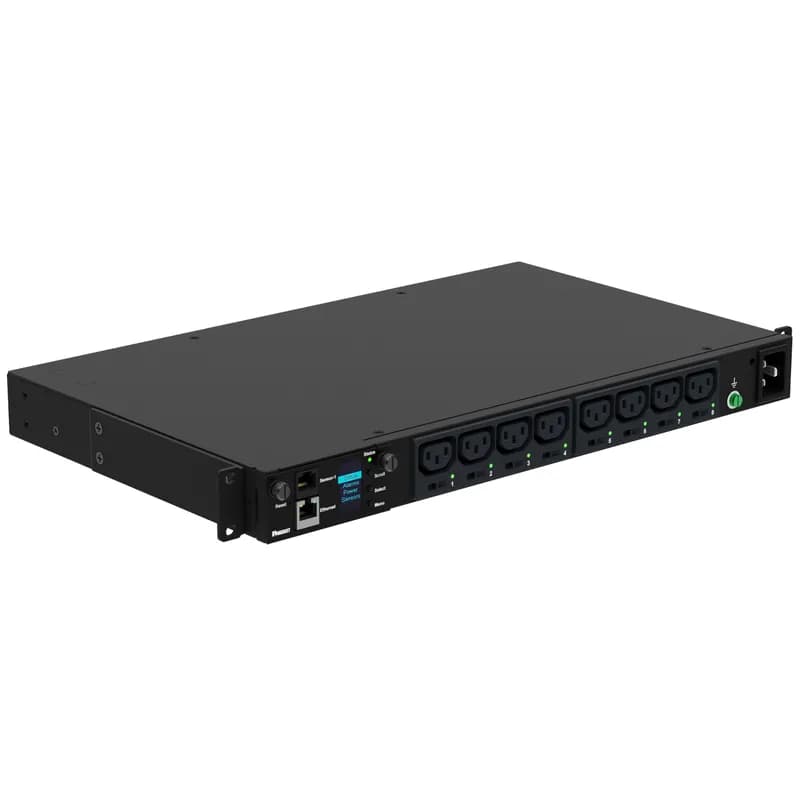

Panduit P08E25M This Panduit™ G5 Monitored Switched PDU features (8) C13 outlets. It is a 16 amp, 230 V…
UPC: 613056317598
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 8 C13 outlets for standard device connectivity
- 16A, 230V single-phase operation
- Per-outlet power monitoring for load management
- Panduit G5 Monitored Switched PDU series.
Specifications
Frequency Rating, Maximum | 230 V |
Frequency Rating, Minimum | 230 V |
Material | Metal |
Mounting | Horizontal |
Phase | 1 |
Standard | CE, UKCA, ROHS, REACH, China ROHS |
Type | PDU |
Width | 17.5 in |
Width | 444.5 mm |
Package Dimensions (L x W x H) | 78 IN x 8.2 IN x 4.6 IN |
Package Dimensions (L x W x H) | 198.12 cm x 20.828 cm x 11.684 cm |
Package Weight (Imperial) | 12.9000 L |
Package Weight (Metric) | 5.8514 kg |
UTP6AL1MBU
The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the length of the power cord?
The power cord for this Panduit PDU is 10 feet (3 meters) long.
What is the amperage rating of this Panduit PDU?
This Panduit G5 Monitored Switched PDU has a 16 amp rating.
What type of outlets does the P08E25M feature?
The Panduit P08E25M features eight C13 outlets.
What is the input plug type for this PDU?
This Panduit PDU uses an IEC 60309 2P+E 6h 16A (IP44) input plug.
What is the voltage of this Panduit switched PDU?
The Panduit P08E25M operates at 230V.
How to Install and Configure a Panduit G5 Power Distribution Unit (PDU)
This guide provides step-by-step instructions for installing a Panduit G5 Power Distribution Unit into a datacenter rack, including mounting, grounding, connecting to power, and initial configuration for universal input models.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Torx screwdriver
Supplies needed:
Mounting hardware (buttons, screws), Ground bonding cable, Star washer, PDU power cord / Facility side input cord
- Mount the PDU in the Rack
Align and install the mounting buttons onto the PDU using the appropriate screw holes for your desired orientation (outlets facing center, back, or front of the rack). Then, install the PDU by inserting the mounting buttons into the keyhole slots on the PDU mounting bracket in the rack. Use only the hardware provided for installation.
- Attach the Input Cord to Universal Input Connector (if applicable)
If installing a Universal Input PDU, open the input cord connector latches on the PDU. Insert the facility side input cord plug firmly into the connector. Close the input cord connector latches on the PDU to securely lock the input cord into place. This step must be performed by a skilled person with the facility side connector disconnected.
- Ground the PDU
Connect a ground bonding cable to the external ground bonding point on the PDU chassis, typically using the provided earthing screw and star washer. Bond the PDU to a known earthed reference terminal in the building or the rack's grounding strip/bus bar. Ensure a reliable grounded (earthed) connection to reduce the risk of electric shock due to high leakage currents.
- Connect the PDU to a Power Source
WARNING: Ensure all circuit breakers on the PDU are in the OFF position before connecting input power. Turn the feed circuit breaker for the branch circuit OFF. Connect the PDU power cord (or facility side input cord) to an appropriately rated, grounded (earthed) branch circuit electrical outlet that is near the equipment and easily accessible. Turn the feed circuit breaker ON. The PDU's OLED screen (if present) will display a status bar as the operating system loads, then the Main Menu. For permanently connected PDUs, this must be performed by a licensed electrician.
- Configure Universal Input PDU Input Type (if applicable)
For Universal Input PDUs, access the PDU's Web interface (refer to the User Manual for connection instructions). Navigate to the 'System Management' page under settings. Select 'Set Input Cord' under actions. Choose the correct cord type from the dropdown menu that matches your connected input cord part number. Select 'Save' to apply the changes; the PDU will reset. Selecting an incorrect input cord type may lead to incorrect metering and power rating display.
