Overview

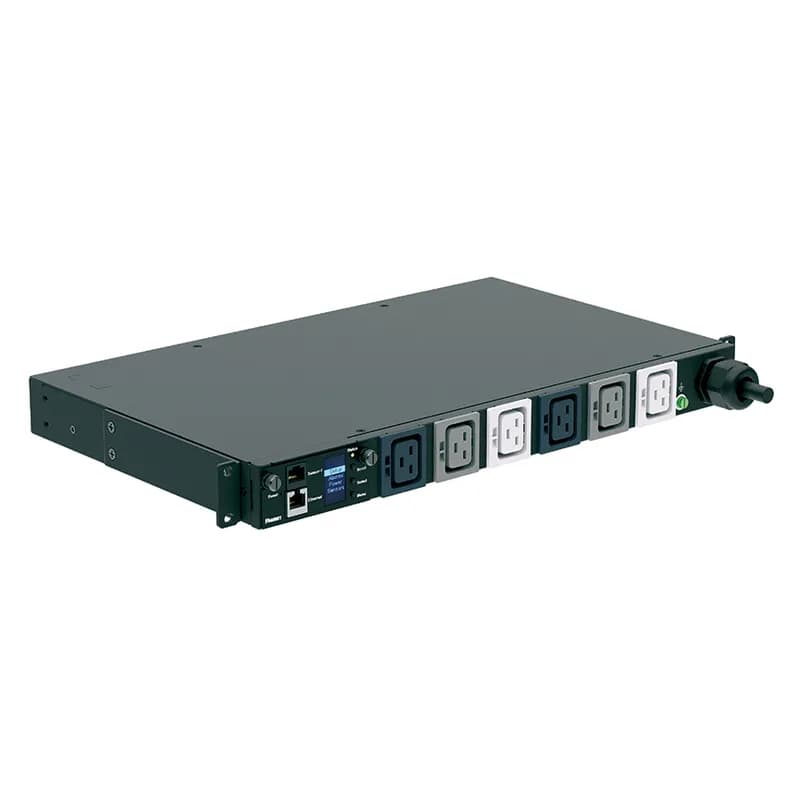

- 16 amp, 400V three-phase power distribution
- (6) IEC C19 outlets for high-power equipment
- IEC 60309 3P+N+E 6h 16A input plug with IP44-rated enclosure
- 10-foot (3m) power cord for flexible installation
- Monitored input for basic power tracking in industrial environments
Specifications
Connection Type | IEC 60309 3P+N+E 6h |
Current Rating | 16 A |
Frequency Rating, Maximum | 230 V |
Frequency Rating, Minimum | 230 V |
Ip Rating | IP44 |
Material | Metal |
Mounting | Horizontal |
Phase | 3 |
Poles | 3P+N+E |
Series | G5 Monitored Input PDU |
Standard | CE, UKCA, ROHS, REACH, China ROHS |
Type | PDU |
Voltage Rating | 400 V |
Width | 17.5 in |
Width | 444.5 mm |
Package Dimensions (L x W x H) | 78 IN x 8.2 IN x 4.6 IN |
Package Dimensions (L x W x H) | 198.12 cm x 20.828 cm x 11.684 cm |
Package Weight (Imperial) | 16.2000 L |
Package Weight (Metric) | 7.3483 kg |
Frequently Asked Questions
What is the input voltage for P06D38M?
The P06D38M PDU operates on 200-240/346-415 VAC, 3-Phase power.
What is the input current for P06D38M?
The P06D38M PDU has an input current of 16A per phase.
What type of outlets does P06D38M have?
The P06D38M PDU is equipped with six C19 outlets.
What is the form factor of P06D38M?
The P06D38M PDU has a 1U form factor.
What are the dimensions of P06D38M?
The P06D38M PDU measures 44.0 mm in length, 443.5 mm in width, and 269.8 mm in depth at the outlet position.
What is the warranty for Panduit G5 PDUs?
Panduit G5 Series PDUs come with a 3-year standard warranty, which can be extended to 5 years.
What is the maximum operating temperature?
The PDU is built with premium components to withstand 140°F (60°C) at full load.
What network connection features does the PDU have?
The PDU features a 1 GB On Board Ethernet Connection that auto negotiates to 1GB network switches, and includes Redundant Network Access (RNA).
What can the PDU monitor in real-time?
The PDU provides real-time monitoring of power, environmental conditions, and cabinet security.
Is the PDU compatible with Cisco systems?
Panduit's intelligent PDUs are compatible with Cisco Nexus Dashboard software to enhance insights related to energy savings and sustainability.
How to Install and Configure Panduit G5 Power Distribution Units (PDUs)
This guide provides step-by-step instructions for qualified personnel to safely install, ground, connect, and initially configure Panduit G5 Metered, Switched, and Metered & Switched PDUs in a datacenter rack.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Torx screwdriver, USB Drive (for firmware upgrade, if needed)
Supplies needed:
Mounting buttons (for vertical PDUs), PDU mounting bracket, Tie wraps, Ground bonding cable, Cage nuts (for 1U/2U PDUs), Input cord (for Universal Input PDUs)
- Prepare for Installation and Mount the PDU
WARNING: Installation must be performed by individuals knowledgeable about AC power products. Ensure the main feed circuit breaker for the power source is OFF before starting. Install the appropriate mounting hardware (e.g., mounting buttons for vertical PDUs or cage nuts for 1U/2U PDUs) onto the PDU or rack. Secure the PDU to the rack by inserting the mounting buttons into the keyhole slots on the PDU mounting bracket or by screwing the mounting bracket ears into the RETMA rail surface. Ensure the PDU is firmly attached and in the desired orientation.
- Ground the PDU
Connect a ground bonding cable from the external ground bonding point on the PDU chassis to a known earthed reference terminal, grounding strip, or grounding bus bar in the building or rack. Refer to the documentation for minimum bonding conductor size requirements based on the PDU's current rating (e.g., 12 AWG for up to 32A). This supplementary Earth bonding is crucial for safety.
- Connect the PDU to a Power Source
If installing a Universal Input PDU, first open the input cord connector latches on the PDU, insert the input cord plug, and then close the latches to lock the cord into the connector. Verify that the main feed circuit breaker for the power source is OFF. Ensure that all individual circuit breakers on the PDU itself are set to the ON position. Connect the PDU's input power cord to an appropriately rated, grounded (earthed) branch circuit. Refer to the label on the PDU for input ratings. Turn the main feed circuit breaker ON. The PDU's OLED screen (if present) will display a status bar during boot-up, then the Main Menu.
- Configure Universal Input PDU Input Type (if applicable)
If you have a Universal Input PDU, connect to its Web interface (refer to the User Manual for instructions). Navigate to the 'System Management' page under settings. Select 'Set Input Cord' under actions. Choose the correct input cord type from the dropdown menu that matches your connected cord. Select 'Save'; the PDU will reset to apply the new configuration. Failure to select the correct input cord type may result in incorrect metering data and power rating display.
