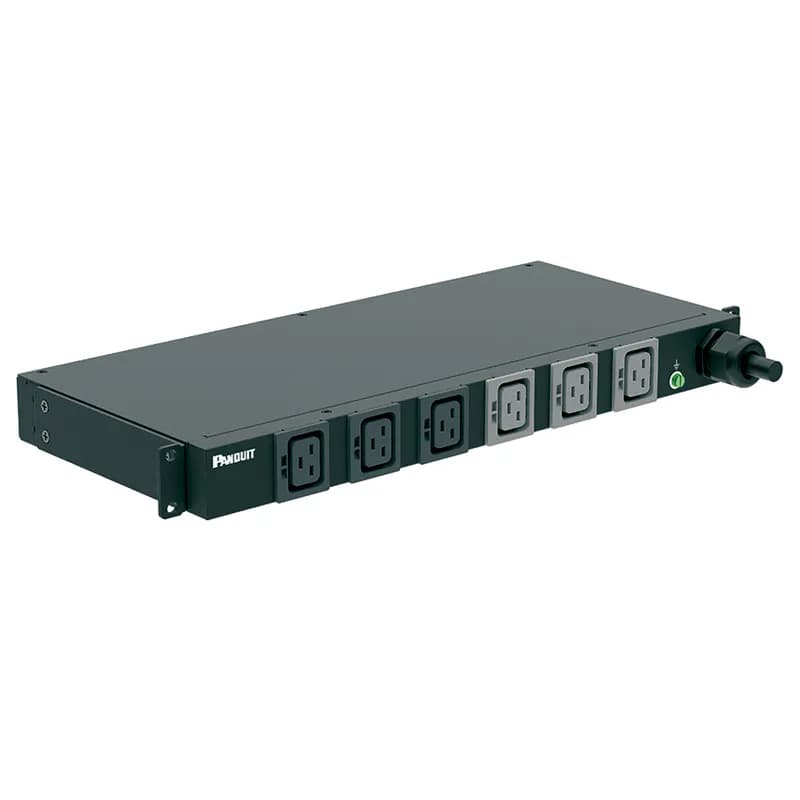

Panduit P06B35M This Panduit™ G5 Basic PDU features (6) C19 outlets. It is a 32 amp, 230 V, single phase…
UPC: 613056263406
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 6 IEC C19 outlets for high-power equipment
- 32 ampere, 230V single-phase power distribution
- IEC 60309 2P+E 6h 32A input plug with IP44 ingress protection
- 10-foot (3-meter) power cord for flexible installation
- Vertical 0U or horizontal 1U/2U mounting for space optimization
Specifications
Color | Black |
Connection Type | IEC 60309 |
Current Rating | 32 A |
Frequency Rating, Maximum | 230 V |
Frequency Rating, Minimum | 230 V |
Ip Rating | IP44 |
Material | Metal |
Mounting | Horizontal |
Phase | 1 |
Poles | 2P+E |
Series | G5 Basic |
Standard | CE, UKCA, ROHS, REACH, China ROHS |
Type | PDU |
Voltage Rating | 230 V |
Width | 17.5 in |
Width | 444.5 mm |
Package Dimensions (L x W x H) | 21 IN x 9 IN x 16 IN |
Package Dimensions (L x W x H) | 53.34 cm x 22.86 cm x 40.64 cm |
Package Weight (Imperial) | 13.0000 L |
Package Weight (Metric) | 5.8968 kg |
UTP6AL1MBU
The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
How many outlets does the P06B35M PDU have?
The P06B35M PDU is equipped with six C19 outlets.
What is the input voltage for the P06B35M PDU?
The P06B35M PDU operates on 200-240VAC, 1-Phase input voltage.
What is the input current rating for P06B35M?
The P06B35M PDU has an input current rating of 32A per phase.
What is the input plug type for P06B35M?
The P06B35M PDU uses an IEC 60309 2P+E 6h 32A input plug type.
What is the apparent power rating of P06B35M?
The P06B35M PDU has an apparent power rating of 7.4 kVA.
What are the physical dimensions of the P06B35M?
The P06B35M has a length of 43.5 mm, a width of 443.5 mm, and a depth of 197.4 mm at the outlet position.
What is the form factor of the P06B35M PDU?
The P06B35M PDU has a 1U form factor.
What type of PDU is P06B35M?
The P06B35M is a Basic PDU, designed as a non-intelligent power distribution unit for reliable power in low-cost solutions.
What is the maximum operating temperature for this PDU?
This PDU is built with premium components to withstand 140°F (60°C) at full load.
What is the warranty for Panduit G5 Series PDUs?
Panduit G5 Series PDUs come with a 3-year standard warranty and an option for a 5-year extended warranty.
How to Install and Configure a Panduit G5 PDU
This guide provides step-by-step instructions for the physical installation, grounding, power connection, and initial configuration of a Panduit G5 Power Distribution Unit (PDU) in a datacenter rack.
Tools needed:
Phillips screwdriver, Torx screwdriver
Supplies needed:
PDU mounting hardware, Ground bonding cable, Cable ties
- Review Safety Information
Before beginning installation, thoroughly read and understand all important safety information in the PDU Installation Manual. Ensure installation is performed by qualified personnel to reduce the risk of electric shock and equipment damage. Verify that all circuit breakers are in the off position before connecting input power.
- Mount the PDU in the Rack
Determine the appropriate mounting method for your PDU form factor (Vertical, 1U, or 2U). For vertical PDUs, install mounting buttons on the PDU and insert into the rack's PDU mounting bracket. For 1U/2U PDUs, install cage nuts in the desired U location and secure the PDU's mounting bracket ears to the RETMA rail. Use only the hardware provided to install the PDU.
- Ground the PDU
Connect a ground bonding cable from the external ground bonding point on the PDU chassis to a known earthed reference terminal in the building or to the rack metalwork. Ensure a reliable grounded connection before connecting AC power to reduce the risk of electric shock due to high leakage currents.
- Connect the PDU to a Power Source
Ensure the feed circuit breaker for the power source is OFF. Verify all circuit breakers on the PDU are set to the ON position. Connect the PDU's input power cord to an appropriately rated, grounded electrical outlet. Refer to the PDU label for input ratings. Turn the feed circuit breaker ON. The PDU's display will show a status bar during startup.
- Secure Power Cords
For connected IT equipment, plug power cords into the PDU outlets. Utilize the integrated cord retention features on C13 and C19 outlets by sliding a tie wrap into the notch and securing it around the cord, or use optional locking power cords to prevent accidental disconnects.
- Configure Universal Input PDU (if applicable)
If installing a Universal Input PDU, connect to the PDU's Web interface (refer to the User Manual for instructions). Navigate to the 'System Management' page, select 'Set Input Cord' under actions, and choose the correct cord type from the dropdown menu. Save the settings; the PDU will reset. Incorrect selection may lead to inaccurate metering.
