Panduit LAMA300-56-QY - One-hole, aluminum, single barrel lug, type LAMA, #6 AWG - 300 kcmil, 5/16 (7.9mm) stud hole.
Panduit

LAMA300-56-QY

UPC: 074983596140

Documents & Media
Technical DrawingFull Engineering DrawingInstallation Instructions

Contact for Pricing

Overview

The Panduit LAMA300-56-QY is a one-hole, single barrel aluminum lug designed for secure termination of stranded aluminum or copper conductors ranging from #6 AWG to 300 kcmil. Constructed from high-strength extruded aluminum alloy with a tin-plated finish, this lug delivers superior electrical and mechanical performance while resisting corrosion. The 5/16" (7.9mm) stud hole ensures compatibility with standard mounting hardware, and the plated steel or aluminum set screw provides durable electrical contact between the conductor and connector. UL Listed and CSA Certified for applications up to 600V with a temperature rating of 90°C, the LAMA300-56-QY meets rigorous safety standards for industrial and commercial electrical systems. Its wide wire range-taking capability reduces inventory requirements by accommodating multiple conductor sizes in a single lug type. The extruded aluminum construction ensures long-term reliability and mechanical strength, making it ideal for use in electrical panels, switchgear, and other high-performance applications. For optimal performance, Panduit recommends using oxide inhibiting joint compound (CMP-100) on pad-to-pad and conductor connections to enhance conductivity and prevent oxidation.
  • One-hole design with 5/16" (7.9mm) stud hole for standard mounting
  • Accommodates stranded aluminum or copper conductors from #6 AWG to 300 kcmil
  • High-strength extruded aluminum alloy with tin-plated finish for corrosion resistance
  • UL Listed and CSA Certified for 600V applications, 90°C temperature rating
  • Plated steel or aluminum set screw ensures durable electrical contact

Specifications

Amperage Rating
NA A
Barrel Type*
Single Barrel
Material
Tin-plated Aluminum
Mounting
1 In.
Number Of Holes
1
Standard
UL Listed for use up to 600V & Temperature Rated to 90 C
Stud Size
5/16 In.
Type
Mechanical Lug
Voltage Rating
600 V
Package Dimensions (L x W x H)
7.75 IN x 3.45 IN x 3.45 IN
Package Weight (Imperial)
2.25 lbs

Similar Products

LAMA250-56-QY

Application: Stranded Aluminum or Copper Code Conductor

Material: Aluminum

Standard: cULus Listed for use up to 600V & Temperature Rated to 90 C

LAMA350-38-QY

Application: Stranded Aluminum or Copper Code Conductor

Mounting: 1-1/8 In.

Stud Size: 3/8 In.

LAMA1/0-56-Q

Type: Mechanical Connectors - Lugs

Voltage Rating: 600 V

Type: Mechanical Connectors - Lugs

LAMA500-38-6Y

Mounting: 1.22 In.

Stud Size: 3/8 In.

Current Rating: 500 kcmil

LAMA600-38-6Y

Conductor Range (Main/Primary): #2 AWG - 600 kcmil

Finish: Tinned

Number Of Conductors: 1

LAMA500-38-5

Application: Stranded Aluminum or Copper Code Conductor

Insulation: Non-Insulated

Mounting: 1.22 In.

You May Also Be Interested In

The LAMA6-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

LAMA6-14-QY

The LAMA2-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

LAMA2-14-QY

The LAMA250-56-QY in-Plated Aluminum Mechanical Lug, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

LAMA250-56-QY

One-hole, aluminum, single barrel lug, type LAMA, 4 AWG - 500 kcmil, 3/8 (9.5mm) stud hole.

LAMA500-38-6Y

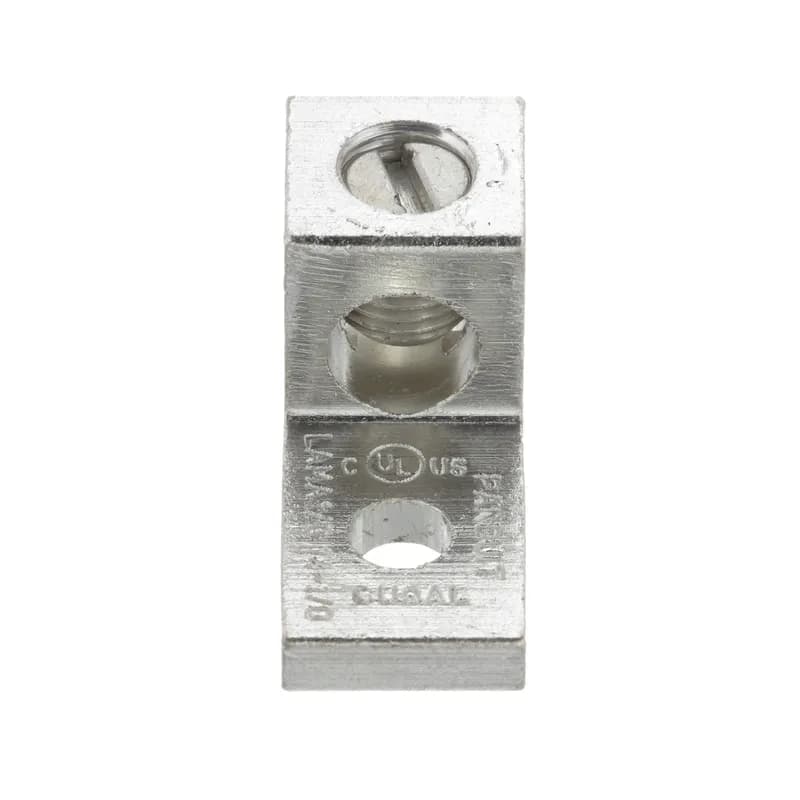

The LAMA1/0-14-QY Tin-Plated Aluminum Mechanical Lug, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
