Contact for Pricing
Overview

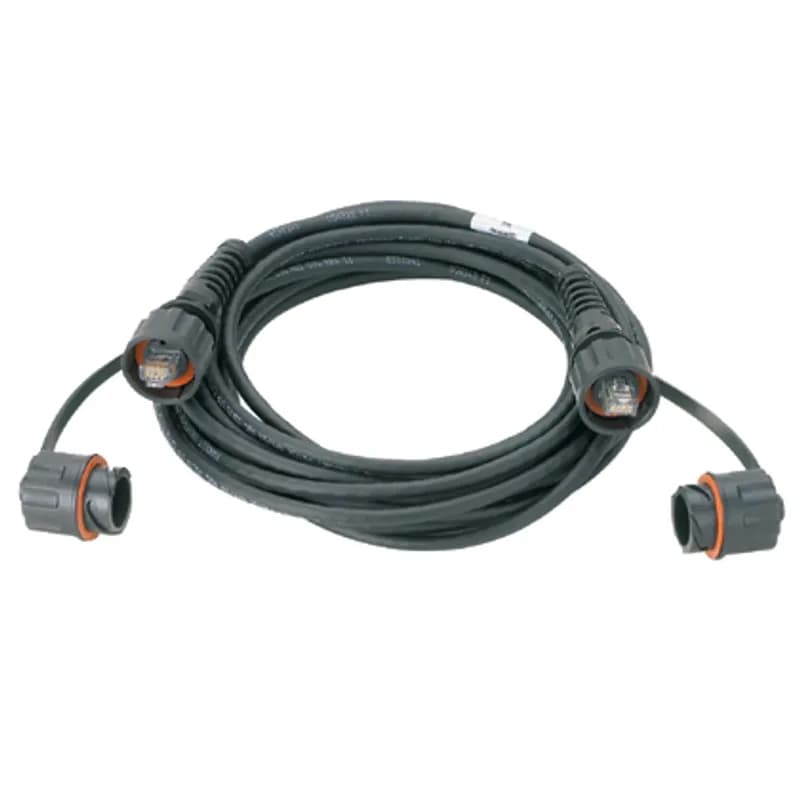

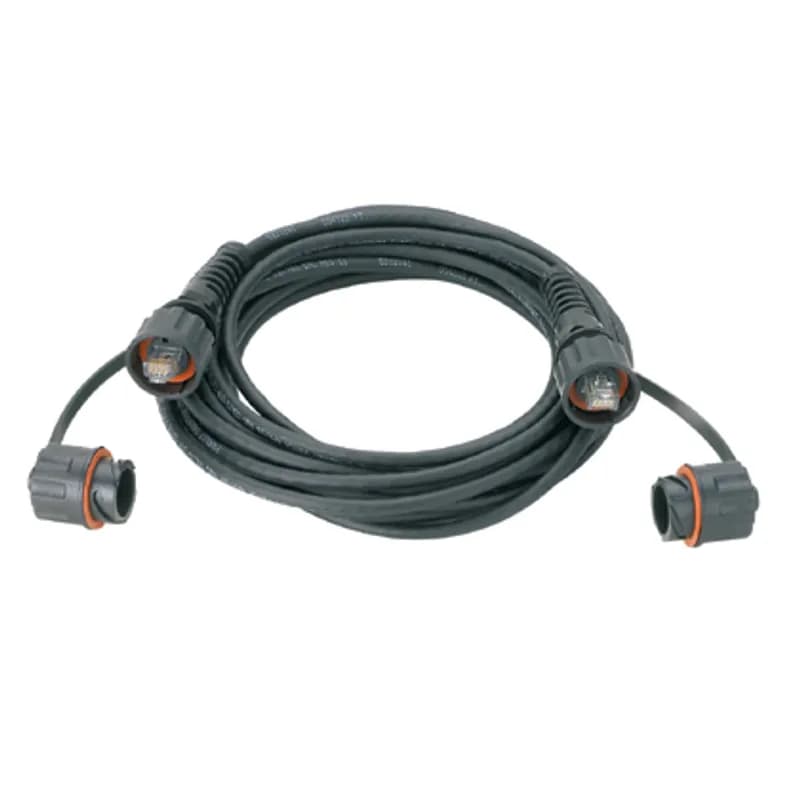

- 10-meter length with one Plug Cap for flexible industrial Ethernet connections
- Category 6A performance: 500MHz bandwidth, 10Gbps data rate, reduced crosstalk
- SFTP shielding (foil + braid) protects against EMI/RFI in noisy environments
- UL-rated CMX jacket resists abrasion, moisture, and chemicals for indoor/outdoor use
- Supports PoE+ and PoE++ (up to 100W) for powering industrial devices
Specifications
Application | Patch Cords provide an ideal solution to support industrial Ethernet from the Local Area Network (LAN) based support offices to the processing devices on the plant floor even under harsh industrial conditions. Innovative design features provide a secure, r |
Boot Type | Modular Plug with Bulkhead and Dust Cap |
Cable Type* | SF/UTP |
Color | Black |
Conductor Material | Copper |
Connection Type | RJ45 (Plug Cap) |
Connection Type | RJ45 (SFTP) |
Connection Type | SFTP |
Connection Type | RJ45 |
Frequency | 1000 MHz (Cat 6A) |
Frequency | Up to 500 MHz |
Frequency | 1000 MHz |
Frequency | Category 6A (up to 500 MHz) |
Length | 5 In. |
Material | Shielded Twisted Pair (SFTP) |
Material | Copper (Twisted Pair), Shielded |
Material | Copper |
Material* | Copper |
Outside Diameter | 0.29 in |
Outside Diameter | 7.366 mm |
Performance Level* | Category 6A |
Plug Type | Modular Plug with Bulkhead and Dust Cap |
Series | IndustrialNet |
Size | 10m |
Size | Category 6A |
Size | 10 Meter |
Standard | contacts plated with 50 micro;Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO11801 Class EA standards at swept frequencies 1 to 500 MHz, Patch cords meets IEC 60603-7;housing meets IEC 61076-3-106, Meets ANSI/TIA-1096-A |
Temperature Rating, Maximum | 158 F |
Temperature Rating, Maximum | 70 C |
Temperature Rating, Minimum | 158 F |
Temperature Rating, Minimum | 70 C |
Type | Patch Cord |
Wire Size | 26 AWG |
Package Dimensions (L x W x H) | 12 IN x 10 IN x 1.5 IN |
Package Weight (Imperial) | 0.674 lbs |
NK6XPPG24Y
The NetKey Cat 6A UTP Flat Punchdown Patch Panel terminates 4-pair, 22 26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The punchdown patch panel is 1 RU, made of steel, and is black.
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
A802
Steel Raceway Joiner with GoldGalv finish, reinforcing plate and nuts. For use with 'A' series channel.
A238
Two Gang Outlet Box, Volume 38 Cubic Inches, Length 3.844 Inches, Width 3.53 Inches, Depth 3.45 Inches, Number of Knockout 5, Knockout Size 1/2 Inch, 3/4 Inch, and 1 Inch, Color Blue, Material PVC
MPNY-1000A-9-C
Cable Tie Mounting Base, Natural Nylon 6.6 for Temperatures up to 70 Degrees Celsius (158 F), Length of 28.58mm (1.125 Inches), Width of 28.58mm (1.125 Inches), Height of 5.08mm (0.20 Inches), Acrylic Adhesive Method, 100 Pack
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
Frequently Asked Questions
What is the temperature rating for operation?
The operating temperature range is -4°F to 158°F (-20°C to 70°C).
Is the product RoHS compliant?
Yes, the patch cords are RoHS compliant.
What is the IP rating of the connectors?
The bulkhead connectors are rated IP65/IP67 for dust protection and temporary liquid immersion.
Are the patch cords compliant with PoE standards?
Yes, the patch cords meet IEEE 802.3af and IEEE 802.3at for PoE applications.
What type of environments are these patch cords suitable for?
They are suitable for harsh industrial environments with moisture, dust, and vibration.
What type of cable is used in the patch cords?
The patch cords are constructed of 24 AWG STP stranded industrial grade cable.
What is the construction material of the connectors?
The connectors use IP65/IP67 housings for UTP or STP patch cords, ensuring durability.
What standards do the patch cords comply with?
The patch cords comply with ANSI/TIA-1096-A and IEC 60603-7 standards.
