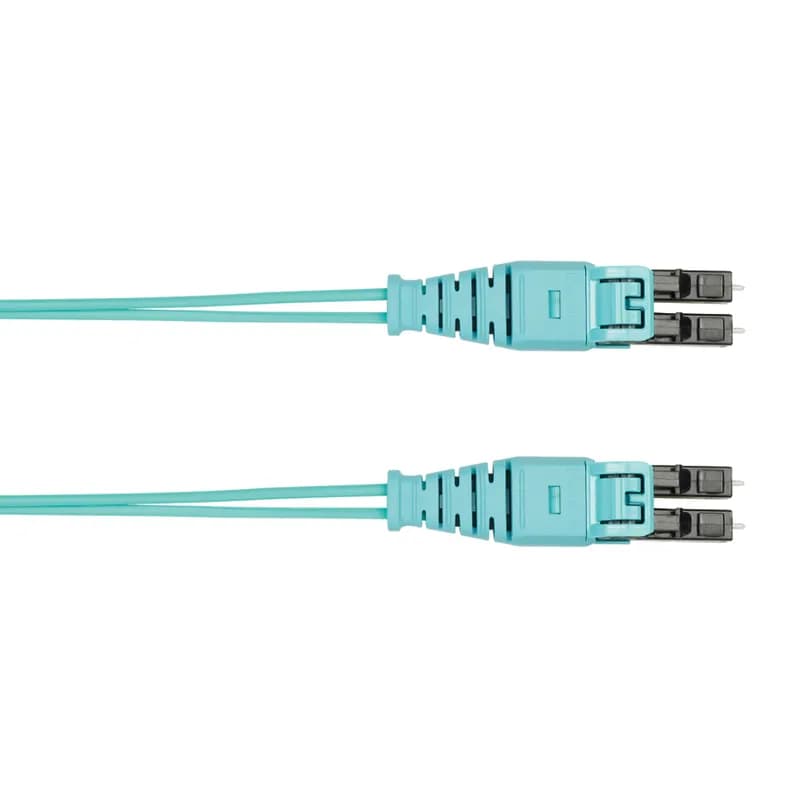

Panduit FZ2ELQ1Q1NNM004 - 2 fiber OM4 patch cord, LC push pull to LC push pull, 16mm jacket, low smoke zero halogen (LSZH) rated, Ultra IL, 4m
Panduit

FZ2ELQ1Q1NNM004

UPC: 074983121625

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit FZ2ELQ1Q1NNM004 is a 2-fiber OM4 multimode fiber optic patch cord designed for high-density data center and enterprise applications. This LC push-pull to LC push-pull patch cord features a 16mm LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in indoor environments, meeting stringent fire safety standards. With an ultra-low insertion loss rating, it ensures minimal signal degradation for reliable high-speed data transmission up to 10Gbps over OM4 fiber. The push-pull LC connectors simplify installation and removal in tight spaces, reducing the risk of connector damage. Each 4-meter cord is factory-terminated and tested for consistent performance. Ideal for structured cabling systems, data centers, campus networks, and industrial environments where space efficiency and safety compliance are critical. Compatible with OM3 and OM4 multimode fiber systems, this patch cord supports applications including 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10. The LSZH jacket resists flame propagation and emits low smoke/zero halogen, making it suitable for use in plenum and riser spaces per NEC and IEC standards.
  • 2-fiber OM4 multimode fiber for 10G/40G/100G applications
  • LC push-pull connectors for easy installation in tight spaces
  • 16mm LSZH jacket meets fire safety and environmental standards
  • Ultra-low insertion loss for reliable high-speed data transmission
  • 4-meter length optimized for patching between equipment and patch panels

Specifications

Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipme
Boot Type
LC Duplex Push-Pull
Color
Aqua
Fiber Compatibility*
OM4 50/125um
Flammability Rating*
LSZH
Length
157.440000000000000 in
Length
3998.976000000000000 mm
Number of Cores
2
Outside Diameter
NA mm
Plug Type
LC-Duplex Push-Pull
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
Temperature Rating, Maximum
140 F
Temperature Rating, Minimum
140 F
Type
OM4
Package Dimensions (L x W x H)
6 IN x 12 IN x 1 IN
Package Weight (Imperial)
0.09 lbs
