Overview

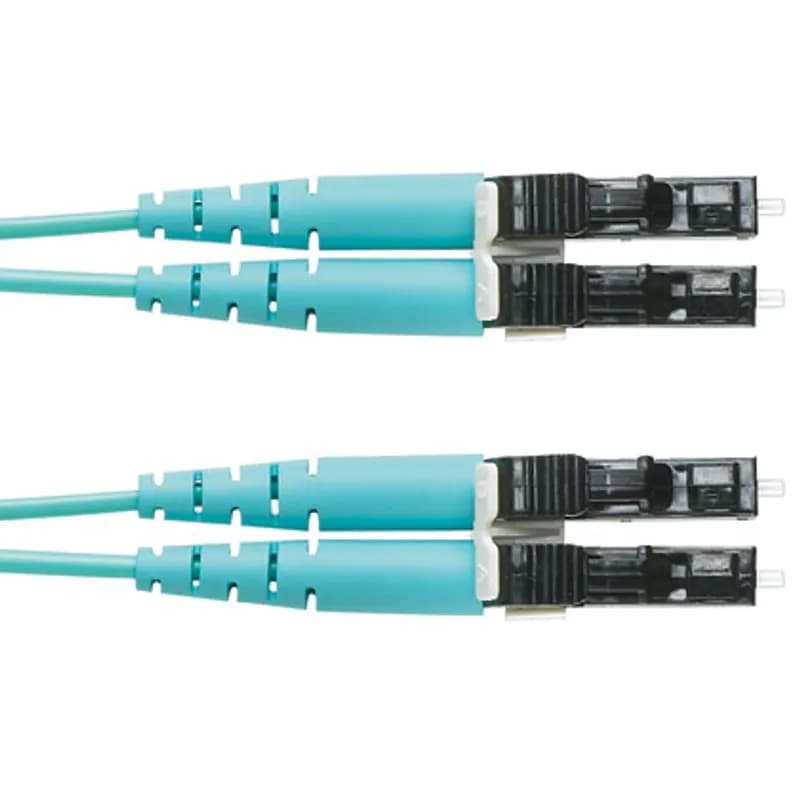

- 2-fiber OM3 fiber optic patch cord
- Low Smoke Zero Halogen (LSZH) rated jacket
- LC duplex to LC duplex connectors
- Standard Insertion Loss (Std IL)
- 27 meters cable length
Specifications
Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipmen |
Boot Type | LC Duplex |
Color | Aqua |
Fiber Compatibility* | OM3 50/125um |
Flammability Rating* | LSZH |
Length | 88.58 in |
Length | 2249.9320 mm |
Number of Cores | 2 |
Outside Diameter | NA mm |
Plug Type | LC-Duplex |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord components meet the requirements of Directive 2002/95/EC. |
Temperature Rating, Maximum | NA F |
Temperature Rating, Minimum | NA F |
Type | OM3 |
Wire Size | 1.6 mm |
Package Dimensions (L x W x H) | 9 IN x 11 IN x 1 IN |
Package Weight (Imperial) | 0.39 lbs |
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
CMSBUSCZBL
The Mini-Com Singlemode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features a blue SC simplex fiber adapter along with a black module and has zirconia split sleeves.
Frequently Asked Questions
What types of fiber are available?
The product is available in Singlemode (OS2) and Multimode (OM1, OM3, OM4, OM4+ Signature CoreTM, OM5) fiber types.
What is the operating temperature range?
The operating and installation temperature range is -10°C to 60°C.
What types of connectors are available?
The connectors available are simplex or duplex LC and SC types.
What are the cable jacket ratings?
The cable jackets are rated as Riser (OFNR) and Low Smoke Zero Halogen (LSZH).
What is the connector insertion loss for OM4 fiber?
The standard connector insertion loss for OM4 fiber is 0.15 dB max, and ultra is 0.10 dB max.
What is the storage temperature range?
The storage and shipping temperature range is -40°C to 70°C.
What safety standards does this product meet?
The product meets various standards including LSZH IEC 60332-1-2 and TIA 568.3-D.
What is the cable outside diameter for simplex and duplex?
The outside diameter is 3mm for duplex and 1.6mm for simplex cables.
