Contact for Pricing
Overview
- 576-fiber capacity for high-density applications
- Singlemode fiber type for long-distance transmission
- Flat profile design optimizes rack space
- 1-meter cable length for flexible routing
- Manufactured in the US by Panduit
Specifications
Number of Cores | 576 |
Series | FOBKF |
Size | 1m flat |
Package Dimensions (L x W x H) | 14 IN x 14 IN x 1.5 IN |
Package Weight (Imperial) | 1.23 lbs |
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
CMSBUSCZBL
The Mini-Com Singlemode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features a blue SC simplex fiber adapter along with a black module and has zirconia split sleeves.
Frequently Asked Questions
What is the purpose of QuickNet fiber breakout kits?
QuickNet fiber breakout/furcation kits provide a robust transition from higher count 250μm loose tube or ribbon cables into individual 12-fiber tubes for field termination or splicing.
What is the breakout length of the kit?
The kit provides a 1-meter breakout length, which ensures drawers open completely without stressing the incoming cable or transition point.
What types of fibers can the furcation tubes accommodate?
The flat furcation tubes can accommodate flat ribbon fiber, collapsible ribbons, or discrete 250μm fibers from a higher count loose tube cable design.
What components are included in the kit?

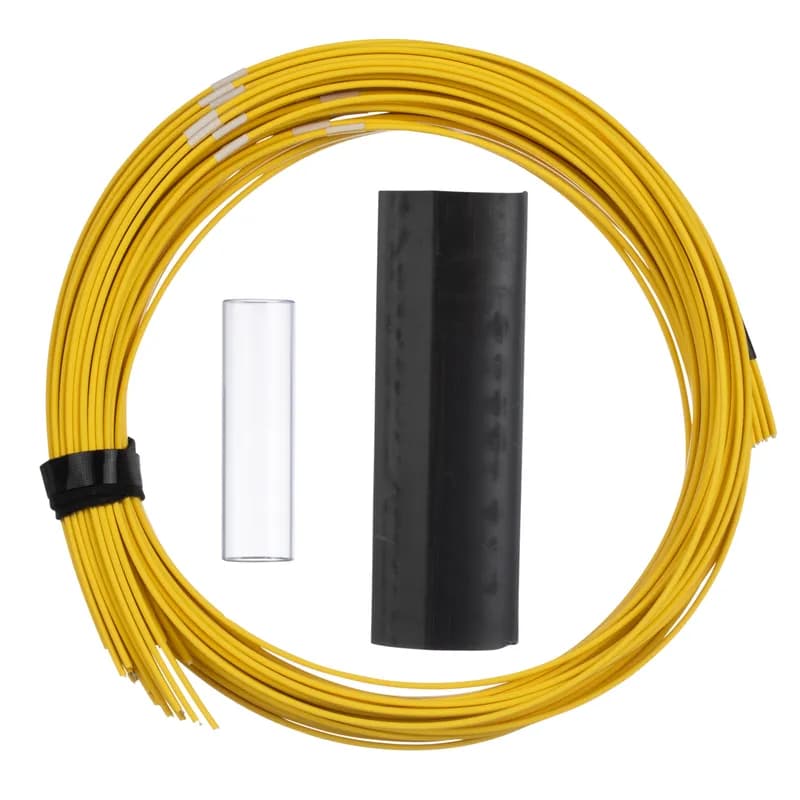

The kits include a clear plastic transition tube, a suitable number of flat furcation tubes, and a piece of adhesive heat shrink.
What are the applications for these kits?
These kits are used for field termination or splicing of high fiber count cables in enterprise and datacenter applications.
What are the dimensions of the ribbon shaped tubes?
The ribbon shaped tubes have an ID of 0.06 in. x 0.18 in. and an OD of 0.09 in. x 0.18 in.
What is the operating temperature range?
The operating temperature range is -20°C to +70°C (-4°F to 158°F).
What is the installation temperature range?
The installation temperature range is -10°C to +60°C (14°F to 140°F).
What is the maximum cable OD for FOBKF576YM1?
The maximum cable outer diameter for the FOBKF576YM1 kit is 1.07 in. (27.2mm).
What is the fiber count for FOBKF576YM1?
The FOBKF576YM1 kit is designed for a fiber count of 576.
How to Install the Fiber Breakout Kit FOBKF576YM1
This guide provides step-by-step instructions for installing the Fiber Breakout Kit FOBKF576YM1, including cable preparation and heat shrink application.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Heat gun
Supplies needed:
Heat shrink tubing, Furcation tubes, Tape
- Prepare the cable
Cut the cable jacket to 63 inches, allowing for 20 inches for the splice cassette, 41.5 inches for furcation tubing, and a 1.5-inch gap.
- Strip the cable jacket
Carefully strip the jacket to expose the fibers, ensuring not to cut any fibers in the process.
- Feed fibers into the bundle
Insert the exposed fibers into the furcation tube bundle, leaving a 1.5-inch gap between the cable jacket and the end of the bundle.
- Install heat shrink tubing
Slide the heat shrink tubing onto the cable first, followed by the clear tubing, ensuring they are positioned correctly.
- Secure the bundle
Tape the ends of the cable to secure the bundle in place as you apply heat to the heat shrink tubing.
- Apply heat shrink
Use a heat gun to carefully apply heat to the heat shrink tubing, ensuring not to overheat the furcation tube ends.
