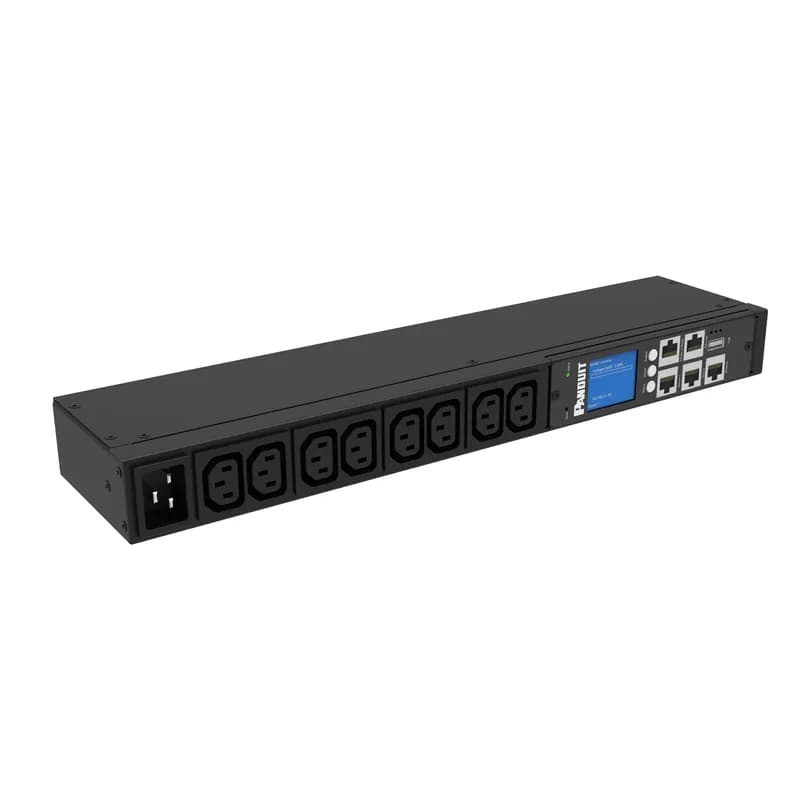

Overview
- 12 IEC C13 outlets for standard equipment connections
- 16 amp single-phase capacity for high-density loads
- C20 inlet for compatibility with standard power cords
- Steel housing with black, low-gloss textured paint finish
- UL/cUL 60950 listed for safety compliance
- External ground stud for secure equipment grounding
- Power on/off LED indicator for status visibility
- Vertical or panel-mount design for flexible installation
- EIA 310-D compliant for 19-inch rack compatibility
Specifications
Amperage Rating | 16 A |
Connection Type | C20 inlet |
Current Rating | 16 A |
Frequency Rating | 230 V |
Length | 1.7 In. |
Mounting | Horizontal |
Number Of Receptacles | (12)C13 |
Phase | Single Phase |
Standard | CE Approved |
Type | Basic PDU |
Width | 16.9 In. |
Package Dimensions (L x W x H) | 20.08 IN x 6.3 IN x 2.953 IN |
Package Weight (Imperial) | 1.32 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the input voltage for E12B01M?
The E12B01M operates with an input voltage of 100-240 VAC.
What is the maximum operating temperature?
The E12B01M can operate at a maximum ambient temperature of 55°C at full load.
How many outlets does E12B01M have?
The E12B01M has a total of 12 outlets.
What type of outlets does E12B01M use?
The E12B01M features 12 C13 type outlets.
What is the input current rating for E12B01M?
The E12B01M has an input current rating of 16A.
What is the power rating of E12B01M?
The E12B01M has an apparent power rating of 3.7 kVA.
What is the warranty period for E12B01M?
The E12B01M comes with a 3-year standard warranty, extendable by 2 years with product registration.
Can E12B01M be daisy-chained?
Yes, the E12B01M can be daisy-chained with up to 16 PDUs.
What is the chassis dimension of E12B01M?
The chassis dimensions of the E12B01M are 44mm height, 430mm width, and 50mm depth.
What type of circuit breakers does E12B01M use?
The E12B01M is equipped with hydraulic-magnetic circuit breakers.
How to Install the ES2P Intelligent PDU
This guide provides step-by-step instructions for installing and configuring the ES2P Intelligent Power Distribution Unit (PDU) in a data center rack.
Estimated time: 45m
Tools needed:
Phillips screwdriver, Torx screwdriver
Supplies needed:
Mounting screws, Ground bonding cable
- Mount the PDU
Align and install the mounting buttons with the screw holes on the back of the PDU. Insert the mounting buttons into the keyhole slots on the PDU mounting bracket in the rack.
- Ground the PDU
Connect the ground bonding cable to the external ground bonding point located on the chassis of the PDU. Ensure that the other end is securely bonded to a known earthed reference terminal.
- Connect the PDU to Power
Turn the feed circuit breaker Off. Connect the PDU to an appropriately rated branch circuit. Turn the feed circuit breaker On and verify that the LCD screen displays the main menu.
