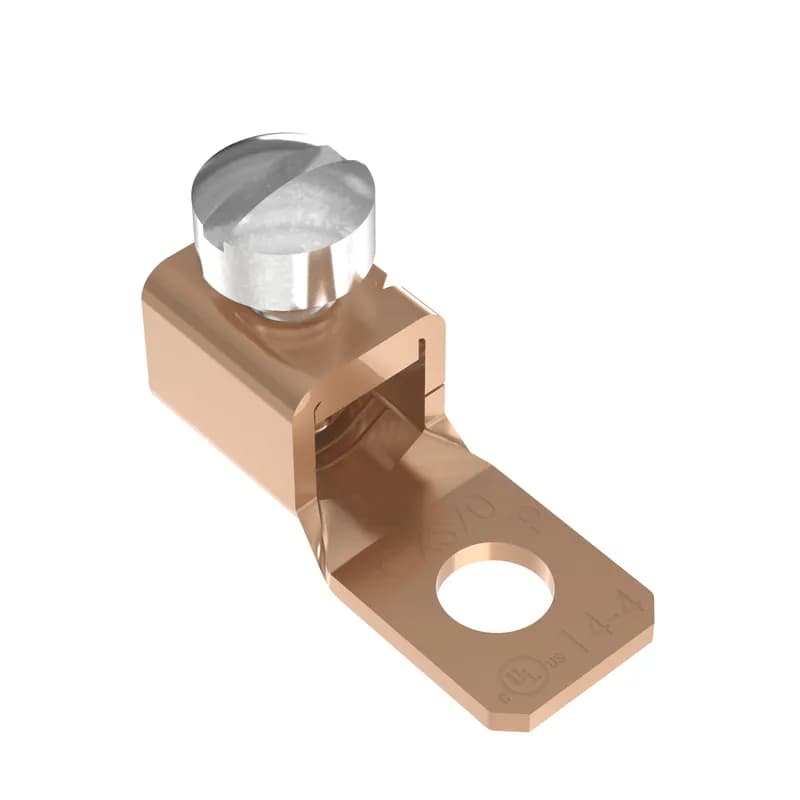

Panduit CXS70-14-C - The CXS70-14-C Mechanical Connector Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel slotted screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
Panduit

CXS70-14-C

UPC: 074983837304

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Overview

The Panduit CXS70-14-C is a high-strength electrolytic copper mechanical connector lug designed for reliable electrical and mechanical performance in wire termination applications. Engineered as a single-piece, one-hole straight fixed tongue lug, it accommodates stranded copper conductors ranging from 14 AWG to 4 AWG, providing a wide wire range-taking capability that reduces inventory requirements. The connector features a plated, fillister head steel set screw for durable electrical contact and barrel serrations to enhance wire pullout strength. The internal pressure bar and V-bottom collar ensure uniform clamping force, guaranteeing positive contact between the conductor and connector. Certified by cULus for use up to 600V and rated to 90°C, the CXS70-14-C is ideal for applications requiring high-performance wire termination in electrical infrastructure, power distribution, and industrial environments. Its compact design and robust construction make it a reliable choice for minimizing downtime and ensuring long-term performance in demanding installations.
  • Single-piece high-strength electrolytic copper construction for premium electrical and mechanical performance
  • Accommodates stranded copper conductors from 14 AWG to 4 AWG
  • Plated steel set screw with barrel serrations for superior wire pullout strength
  • Internal pressure bar and V-bottom collar ensure uniform clamping force for positive contact
  • cULus Listed for use up to 600V and temperature rated to 90°C
