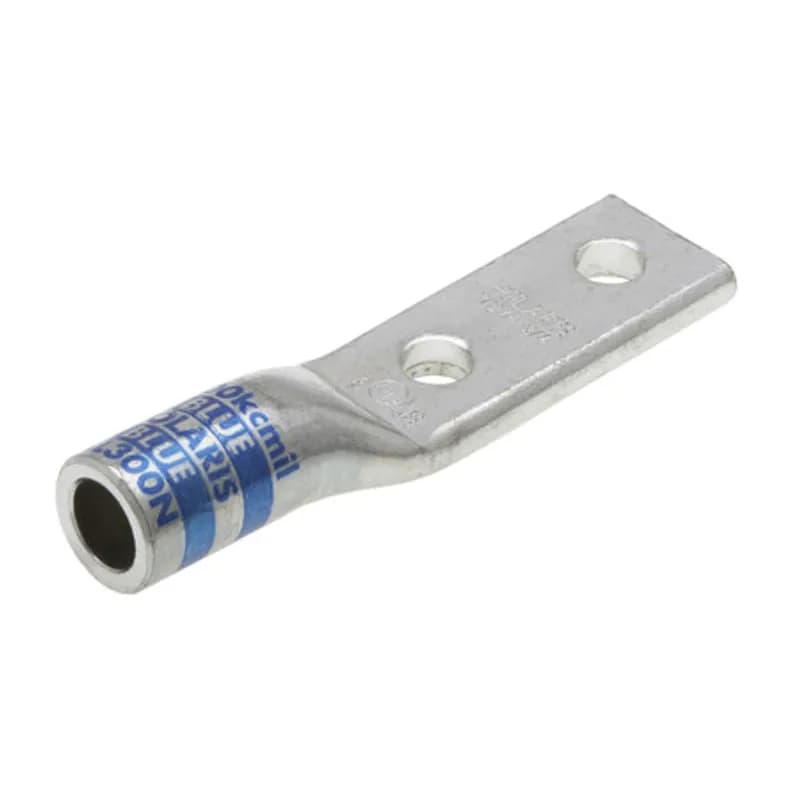

NSi Industries AL1000N - 2HoleStandard BarrelAluminum Compression Lug1000MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
NSI Industries

AL1000N

UPC: 662381031112

Documents & Media
Technical BulletinInstallation Instructions

Contact for Pricing

Overview

NSI Industries AL1000N is a high-conductivity aluminum compression lug engineered for 1000 MCM conductors, featuring a 2-hole standard barrel configuration with a 1/2" bolt size. Manufactured from 6061T-6 aluminum alloy with electro-tin plating, this lug delivers low contact resistance and superior corrosion protection in harsh environments. The center stop design ensures proper cable insertion depth, preventing over-insertion and maintaining optimal electrical performance. Color-coded and die-index markings simplify crimp tool selection and installation, reducing the risk of misapplication. Listed for a maximum of 35kV when properly installed to cable manufacturer specifications, the AL1000N meets UL 486A/B standards and is rated for 600V (2000V max per UL486B) with a temperature rating of 90°C. It is compatible with both copper and aluminum conductors, making it a versatile solution for power distribution, panelboard connections, and industrial wiring applications. The NEMA-standard mounting hole spacing ensures compatibility with standard hardware, while the 1/2" bolt size accommodates common mounting configurations. For applications exceeding 2000V, NSI Industries advises following cable manufacturer voltage stress relief instructions to maintain safety and performance. Recommended crimp tools include the NSI N1240 or N121D, which are designed to produce consistent, reliable crimps. The AL1000N is packaged in standard quantities of 24 units per carton for efficient inventory management and distribution.
  • High-conductivity 6061T-6 aluminum alloy construction
  • Tin-plated finish for corrosion resistance and low contact resistance
  • Center stop ensures proper cable insertion and termination
  • Color-coded and die-index marked for easy crimp tool selection
  • UL 486A/B listed, 35kV max rating (600V/2000V max per UL486B)
  • Dual-rated for copper and aluminum conductors
  • 1/2" bolt size with NEMA-standard mounting hole spacing
  • Temperature rated to 90°C
  • Compatible with NSI N1240/N121D crimp tools

Specifications

Application
Terminate, Splice, Tap Power Connectors
Cable Size
1000 MCM (STR)
Color
Brown
Connection Type
Compression
Environmental Conditions
90 C
Finish
Tin Plated Bronze
Material
Aluminum
Mounting
1/2 Mounting Holes
Number Of Holes
2
Size
1000 MCM
Size
L=7.88 - W=2.46 - OD=2.18 - ID=1.83
Special Features
1000 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing
Standard
UL486A/B
Stud Size
1/2 IN
Type
Standard Barrel - Two Hole
Voltage Rating
35 kV
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
7.437 IN x 2.5 IN x 1.831 IN
Package Dimensions (L x W x H)
18.89 cm x 6.35 cm x 4.6507 cm
Package Weight (Imperial)
0.840 L
Package Weight (Metric)
0.381 kg
