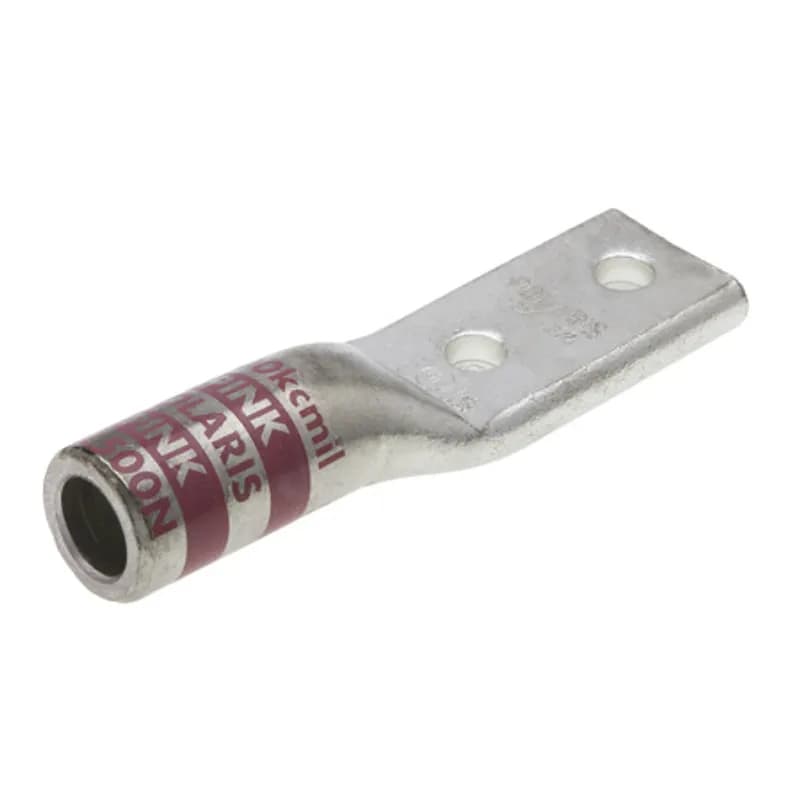

NSI Industries AL400N 2HoleStandard BarrelAluminum Compression Lug 400 MCM -1/2 Bolt Standard BarrelAluminum…
UPC: 662381031075
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 2-hole standard barrel design with 1/2" bolt compatibility for secure mechanical fastening
- High-conductivity 6061T-6 aluminum alloy with electro-tin plating for corrosion resistance
- Center stop ensures proper cable installation depth for consistent crimping results
- UL486A/B and cULus listed to 35 kV when installed per cable manufacturer specifications
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 400 MCM (STR) |
Color | Green |
Environmental Conditions | 90 C |
Finish | Tin Plated Bronze |
Material | Aluminum |
Mounting | 1/2 Mounting Holes |
Number Of Holes | 2 |
Size | L=6.42 - W=1.60 - OD=1.19 - ID=.759 |
Special Features | 400 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Standard Barrel - Two Hole |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 6.429 IN x 1.606 IN x 1.19 IN |
Package Dimensions (L x W x H) | 16.3297 cm x 4.0792 cm x 3.0226 cm |
Package Weight (Imperial) | 2.640 L |
Package Weight (Metric) | 1.198 kg |
AL400-48
1 HoleStandard BarrelAluminum Compression Lug400MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SA4-CR
Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.
AL250-48
1 HoleStandard BarrelAluminum Compression Lug250MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
ASC600T
Dual Rated Aluminum Splice 600 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
ASC8T
Dual Rated Aluminum Splice 8 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
SA500-1000
500 - 1000MCM Dual Rated Stacking Adapters for Aluminum and Copper Compression Terminals DualRated Stacking Adapteris a type of copper compression connector that is produced from tin-plated pure aluminium for good conductivity and corrosion resistance. The adapter allows for thestacking of standard two-hole compression lugs.
CAL1-48
Cast Aluminum Meter Socket Lug 1 AWG - 1/2 Bolt Made of dead-soft EC grade aluminum. 840 common dies- one die installs on all sizes. For aluminum or copper conductors. Pre-filled with oxide inhibitor. Installing dies (color red): .840, 18, 324, TX, 76, 11A, 249.Frequently Asked Questions
What conductor sizes are compatible with the AL400N?
The AL400N supports a wire range of 400 MCM to 4/0 AWG, making it suitable for large conductors in medium-voltage applications.
What is the outer diameter of the AL400N?
The outer diameter of the AL400N is 1.190 inches, designed to accommodate standard compression tooling.
What is the color code for the AL400N?
The AL400N is color-coded green, which corresponds to its die index marking for easy tool selection and crimp verification.
Is the AL400N pre-filled with oxide inhibitor?
Yes, the AL400N is pre-filled with oxide inhibitor to prevent oxidation and ensure long-term reliability.
What is the temperature rating of the AL400N?
The AL400N has a temperature rating of 90°C, ensuring reliable performance in high-temperature environments.
How to Install Aluminum Compression Connectors
This guide provides step-by-step instructions for installing aluminum compression connectors, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Aluminum compression connectors, Cable
- Select the appropriate connector
Choose the correct lug or splice connector based on the size of the cable being installed, ensuring it matches the specifications in the provided chart.
- Strip the cable insulation
Carefully strip the insulation from the conductor without nicking the strands, leaving enough length to fully insert the stripped conductor into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel completely.
- Crimp the connector
Using the appropriate crimping tool, crimp the connector according to the manufacturer's specifications, ensuring the number of crimps is per side for a splice connector.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
