NSi Industries AL1/0N - 2HoleStandard BarrelAluminum Compression Lug1/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
NSI Industries

AL1/0N

UPC: 662381031006

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

NSI Industries AL1/0N 1/0 AWG Aluminum Compression Lug (SKU: AL1/0N) is a high-conductivity, dual-rated connector engineered for reliable electrical terminations in industrial and utility applications. Manufactured from premium aluminum tubing with electro-tin plating, this compression lug delivers superior corrosion resistance and low contact resistance, ensuring long-term performance in harsh environments. Key specifications include a 1/2" bolt size, 35kV maximum voltage rating when properly installed per cable manufacturer specifications, and a temperature rating of 90°C. The center stop ensures proper cable insertion, while color-coded barrels and die index markings simplify installation and tool selection. Pre-filled with oxide inhibitor and capped with a color-coded end plug, the AL1/0N is ready for immediate use, reducing installation time and minimizing errors. UL486A/B and cULus listed, this lug is compatible with both copper and aluminum conductors, making it a versatile choice for power distribution, substations, and renewable energy systems. The 2-hole standard barrel design accommodates dual conductor terminations, optimizing space and reducing inventory requirements. With a wire range of 1/0 AWG and expanded range up to 6 AWG, the AL1/0N supports a wide variety of applications, from motor controls to high-voltage switchgear. NSI Industries, a trusted name in electrical infrastructure, ensures each AL1/0N meets rigorous quality standards for durability and electrical performance. Pair with NSI’s N1240 or N121D crimp tools for optimal results. For applications exceeding 2000V, consult cable manufacturer guidelines for voltage stress relief instructions.
  • High-conductivity aluminum construction with electro-tin plating for corrosion resistance
  • 1/0 AWG wire range (expanded to 6 AWG with NSI N12ID tool), 1/2" bolt size
  • 35kV maximum voltage rating, 90°C temperature rating, UL486A/B and cULus listed
  • Center stop ensures proper cable insertion; color-coded and die-index marked for easy identification
  • Pre-filled with oxide inhibitor and capped for ready-to-use installation

Specifications

Application
Terminate, Splice, Tap Power Connectors
Cable Size
1/0 AWG (STR)
Color
Tan
Connection Type
Compression
Environmental Conditions
90 C
Finish
Tin Plated Bronze
Material
Aluminum
Mounting
1/2 Mounting Holes
Number Of Holes
2
Size
1/0 AWG
Size
L=4.74 - W=.84 - OD=.63 - ID=.39
Special Features
1/0 AWG (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing
Standard
UL486A/B
Stud Size
1/2 IN
Type
Standard Barrel - Two Hole
Voltage Rating
35 kV
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
4.748 IN x 0.847 IN x 0.63 IN
Package Dimensions (L x W x H)
12.0599 cm x 21.5138 mm x 16.002 mm
Package Weight (Imperial)
0.660 L
Package Weight (Metric)
0.299 kg

Similar Products

AL1000-58

Finish: Tin Plated

Size: 1000 MCM

Mounting Type: Single-Hole

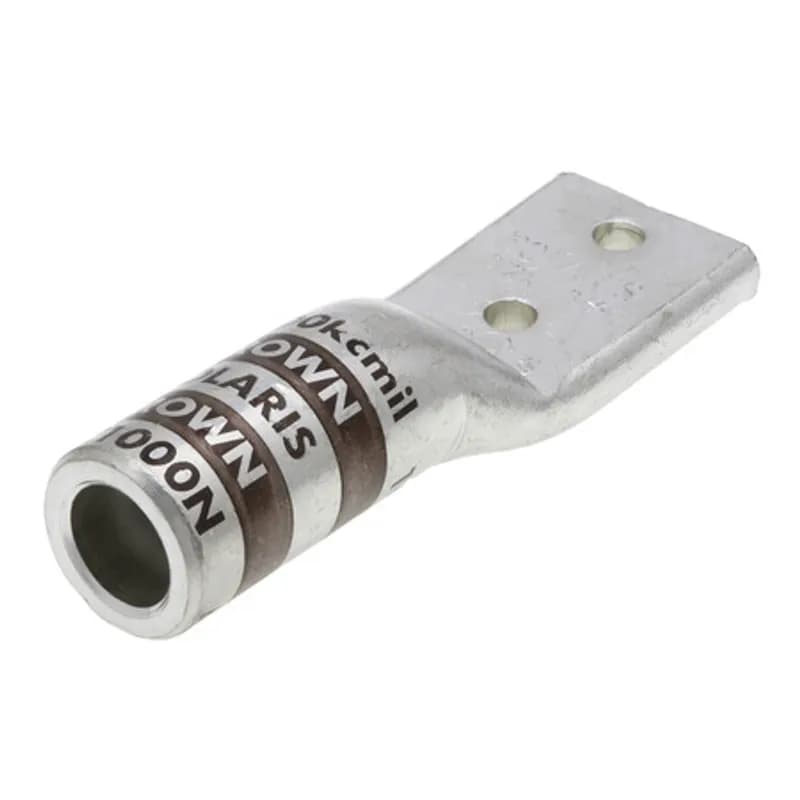

AL1000N

Cable Size: 1000 MCM (STR)

Color: Brown

Size: L=7.88 - W=2.46 - OD=2.18 - ID=1.83

AL2/0N

Cable Size: 2/0 AWG (STR)

Color: Olive

Size: L=4.79 - W=.937 - OD=.690 - ID=.440

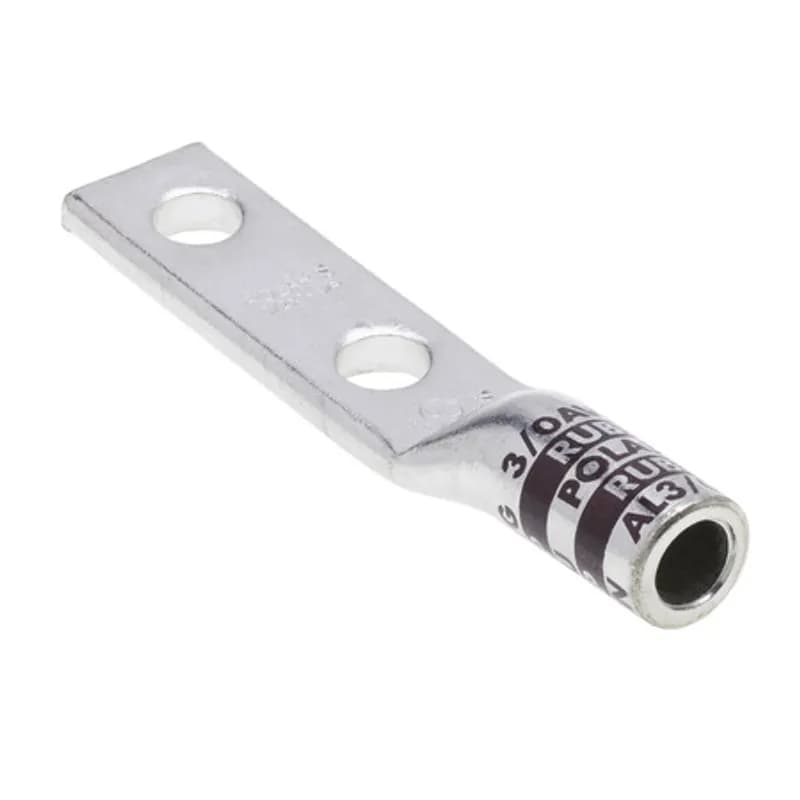

AL3/0N
