Authorized NSI Industries Distributor

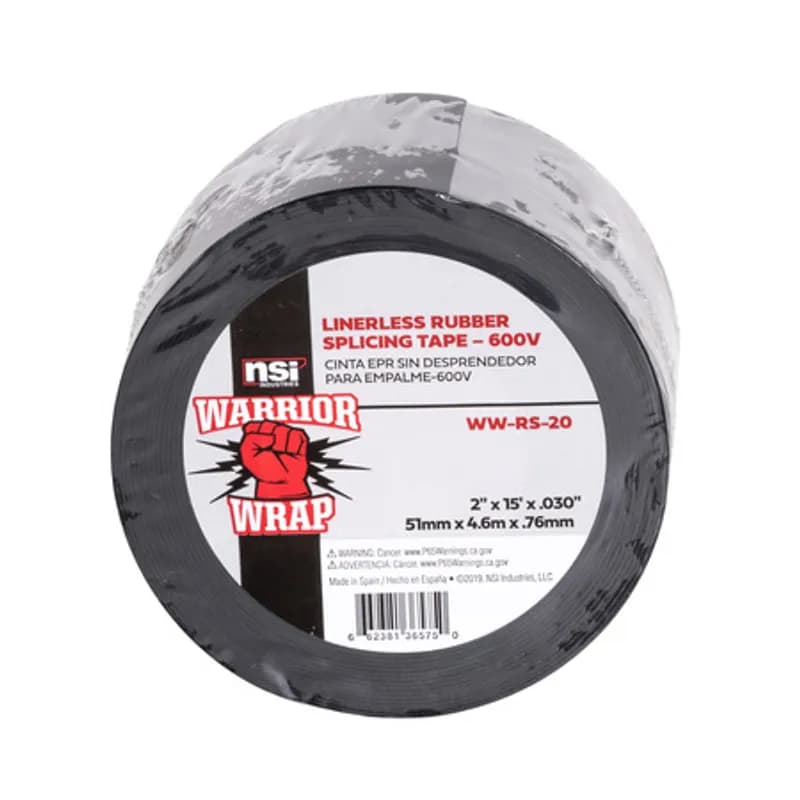

NSI Industries WW-RS-20 - WarriorWrap WW-RS-20 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
NSI Industries

WW-RS-20

UPC: 662381365750

Documents & Media
Specification Sheet

Contact for Pricing

Overview

NSI Industries WarriorWrap WW-RS-20 is a 30mil thick, 2-inch wide, 15-foot long black linerless rubber splicing tape engineered for professional electrical applications up to 600V. This ethylene-propylene rubber (EPR) tape features a self-bonding acrylic adhesive that eliminates the need for liners, enabling faster taping speeds and a uniform, void-free build-up. With a breaking strength of 333.6 PSI and elongation of 890%, WW-RS-20 conforms seamlessly to irregular shapes, making it ideal for insulating and jacketing splices on power cables, terminations, and stress cone construction. The tape meets ASTM D-4388 Type I, II, and III specifications, offering outstanding corona and ozone resistance, high thermal conductivity, and flame retardancy. Its excellent moisture, UV, corrosion, and chemical resistance ensure long-term reliability in harsh environments. Compatible with all extruded cable insulations, WW-RS-20 delivers superior adhesion to uneven surfaces while dissipating heat efficiently. Lead-free and designed for professional use, this general-purpose tape is a trusted solution for electrical contractors and maintenance teams requiring durable, high-performance splicing tape.
  • 30mil thickness, 2" width, 15ft length for professional splicing applications
  • Self-bonding EPR rubber with acrylic adhesive for void-free, uniform build-up
  • Breaking strength: 333.6 PSI; Elongation: 890% for superior conformability
  • Rated up to 600V; meets ASTM D-4388 Type I, II, III specifications
  • Excellent moisture, UV, corrosion, and chemical resistance; flame retardant

Specifications

Backing Material
NSI
Color
Black
Length
15 FT
Material
Rubber
Maximum Voltage
600 V
Resists
Moisture, Corrosion, Corona, Ozone, UV, and Chemicals
Series
WarriorWrap
Size
30 mil thick, 2 inches wide, 15 ft long
Temperature Range
80 C, 176 F
Tensile Strength
333.6 PSI
Thickness
30 MILS
UV Resistance
Yes
Voltage Rating
600 V
Warranty
1 Year
Width
2 IN
Package Dimensions (L x W x H)
15 FT x 2 IN x 0.03 IN
Package Dimensions (L x W x H)
4.572 m x 5.08 cm x 0.762 mm
Package Weight (Imperial)
0.245 L
Package Weight (Metric)
0.111 kg
WarriorWrap WW-RS-15 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RS-15

WarriorWrap WW-RS-15 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-SR-10 Gray Silicone Rubber High-Voltage Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 20mil thick, 1 inch wide, 30ft long and is made from silicone rubber. The self-bonding design features no adhesive but forms a solid mass when wrapped under tension. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for heavy-duty jobs including jacketing high-voltage terminations on extruded dielectric cables, or for insulating high temperature silicone insulated cables.

WW-SR-10

WarriorWrap WW-SR-10 Gray Silicone Rubber High-Voltage Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 20mil thick, 1 inch wide, 30ft long and is made from silicone rubber. The self-bonding design features no adhesive but forms a solid mass when wrapped under tension. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for heavy-duty jobs including jacketing high-voltage terminations on extruded dielectric cables, or for insulating high temperature silicone insulated cables.
WarriorWrap WW-HRL-10 Black High-Voltage Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1 inch wide, 30ft long and has an ethylene rubber-based design. The self-bonding adhesive helps stick to uneven surfaces and easily conforms to irregular shapes, while the liner repels dirt and dust during installation. Top breaking strength and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-HRL-10

WarriorWrap WW-HRL-10 Black High-Voltage Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1 inch wide, 30ft long and has an ethylene rubber-based design. The self-bonding adhesive helps stick to uneven surfaces and easily conforms to irregular shapes, while the liner repels dirt and dust during installation. Top breaking strength and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-HRL-15 Black High-Voltage Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 30ft long and has an ethylene rubber-based design. The self-bonding adhesive helps stick to uneven surfaces and easily conforms to irregular shapes, while the liner repels dirt and dust during installation. Top breaking strength and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-HRL-15

WarriorWrap WW-HRL-15 Black High-Voltage Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 30ft long and has an ethylene rubber-based design. The self-bonding adhesive helps stick to uneven surfaces and easily conforms to irregular shapes, while the liner repels dirt and dust during installation. Top breaking strength and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-HR-20 Black High-Voltage Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 30ft long and has an ethylene rubber-based design. The self-bonding adhesive helps stick to uneven surfaces and easily conforms to irregular shapes. Top breaking strength and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-HR-20

WarriorWrap WW-HR-20 Black High-Voltage Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 30ft long and has an ethylene rubber-based design. The self-bonding adhesive helps stick to uneven surfaces and easily conforms to irregular shapes. Top breaking strength and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-RSL-75 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RSL-75

WarriorWrap WW-RSL-75 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-RSL-15 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RSL-15

WarriorWrap WW-RSL-15 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-RSL-20 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RSL-20

WarriorWrap WW-RSL-20 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

Frequently Asked Questions

What is the maximum voltage rating of WW-RS-20?

The WW-RS-20 is rated up to 600V.

What is the continuous operating temperature for WW-RS-20?

The continuous operating temperature is 194°F (90°C).

What is the emergency overload temperature for WW-RS-20?

The emergency overload temperature is 266°F (130°C).

Is WW-RS-20 compatible with all cable insulations?

Yes, WW-RS-20 is compatible with all extruded cable insulations.

What is the thickness of WW-RS-20 tape?

The thickness of WW-RS-20 tape is 30 mils.

What is the elongation at break for WW-RS-20?

The elongation at break is 890%.

What are the recommended storage conditions for WW-RS-20?

Store in original packaging, horizontally, at temperatures between 5ºC and 35ºC.

What is the shelf life of WW-RS-20?

The shelf life is 60 months from the date of manufacture.

What materials are used in WW-RS-20?

WW-RS-20 is made of ethylene rubber with an acrylic adhesive.

What safety features does WW-RS-20 have?

WW-RS-20 is flame retardant and has excellent ozone resistance.
