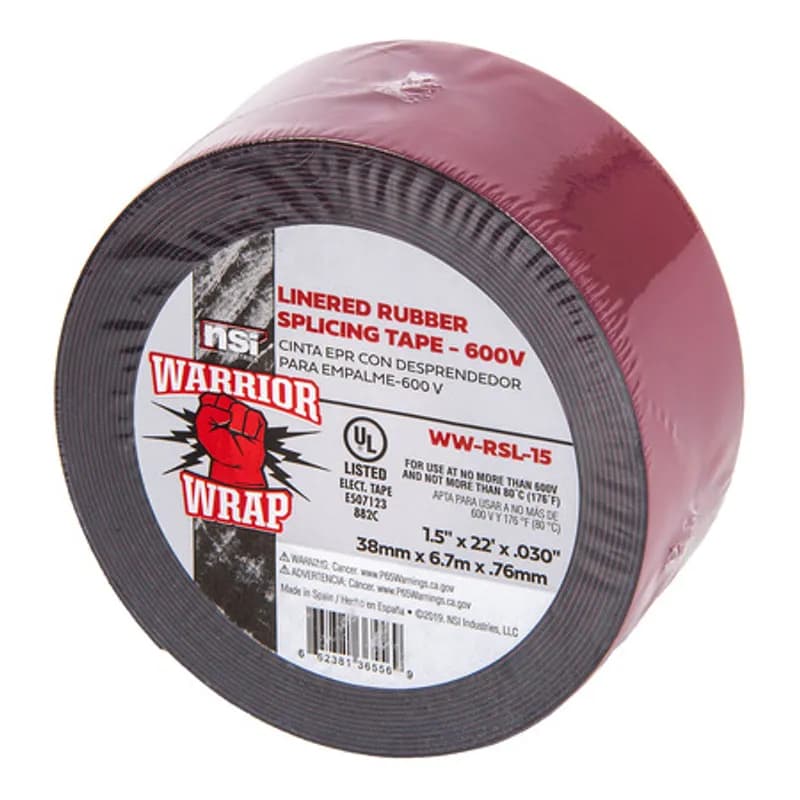

NSI Industries WW-RSL-15 - WarriorWrap WW-RSL-15 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
NSI Industries

WW-RSL-15

UPC: 662381365569

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Its Warrior Time. At NSI, we put our 45 years of experience in the electrical industry into WarriorWrap, electrical tape strong enough to rise to any challenge.That quality starts with strong adhesion to stick to uneven surfaces. But that’s not all—it also features the best breaking strength around and unmatched elasticity. This general purpose linered rubber splicing tape can handle a broad range of jobs, like the insulation and jacketing of splices on power cables up to 600V. The self-bonding design delivers superior moisture protection and creates a uniform, void-free building that can fit into any space. This tape also features industry-leading breaking strength (333.6 PSI) and elongation (890%) to stretch and grip with the best of them. Weather resistant, highly adhesive and flame retardant, our linered rubber splicing tape is built to last. Experience next-generation professional tape, with a comprehensive lineup that gets the job done right the first time, every time.
  • Superior Design WarriorWrap outperforms the competition with strong adhesion, elasticity and breaking strength, all independently UL tested and certified
  • General Purpose This ethylene rubber-based tape can tackle many tasks and is primarily useful for insulating electrical wires and cable splices up to 600V in conjunction with a jacketing tape
  • Self-Bonding Forms a secure, uniform, moisture-resistant and void-free build up that is compatible with all extruded cable insulations and easily conforms to irregular shapes
  • Durable Performance Flame-retardant design rated for continuous temperatures up to 194 degrees F (90 C) features excellent moisture, UV, corrosion and chemical resistance
  • Easy to Use Self-bonding linered splicing tape repels dust and dirt during installation and is perfect for insulating, jacketing or for building stress cones

Specifications

Backing Material
NSI
Length
22 FT
Maximum Voltage
600 V
Temperature Range
80 C, 176 F
Tensile Strength
435.11 PSI
Thickness
30 MILS
Warranty
1 Year
Width
1.500000000000000 in
Width
38.100000000000000 mm
Width
1.5 in
Package Dimensions (L x W x H)
22 FT x 1.5 IN x 0.03 IN
Package Dimensions (L x W x H)
6.7056 m x 3.81 cm x 0.762 mm
Package Weight (Imperial)
0.343 L
Package Weight (Metric)
0.156 kg

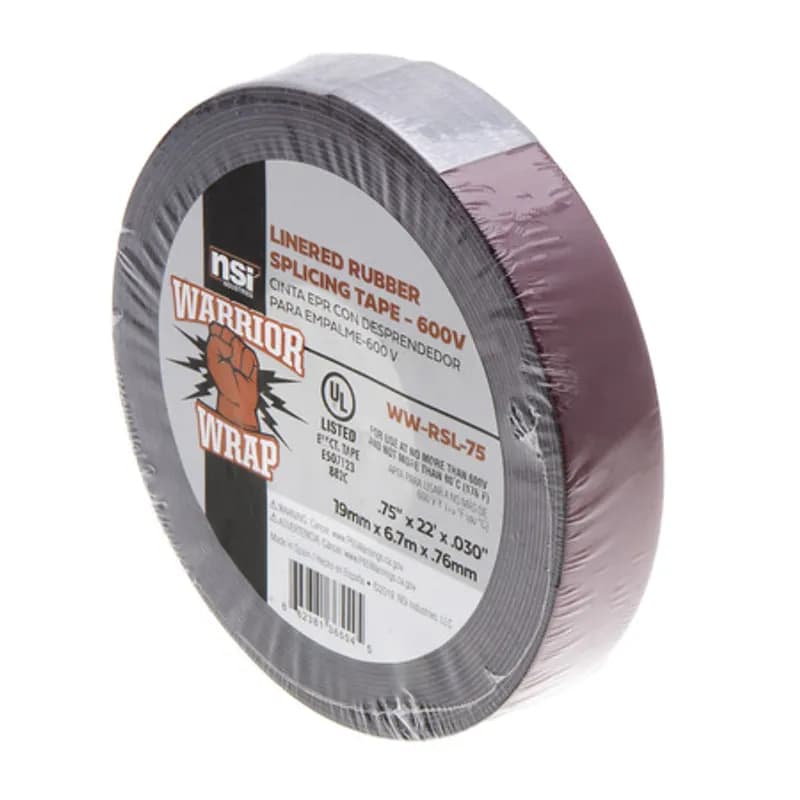

WarriorWrap WW-RSL-75 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RSL-75

WarriorWrap WW-RSL-75 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

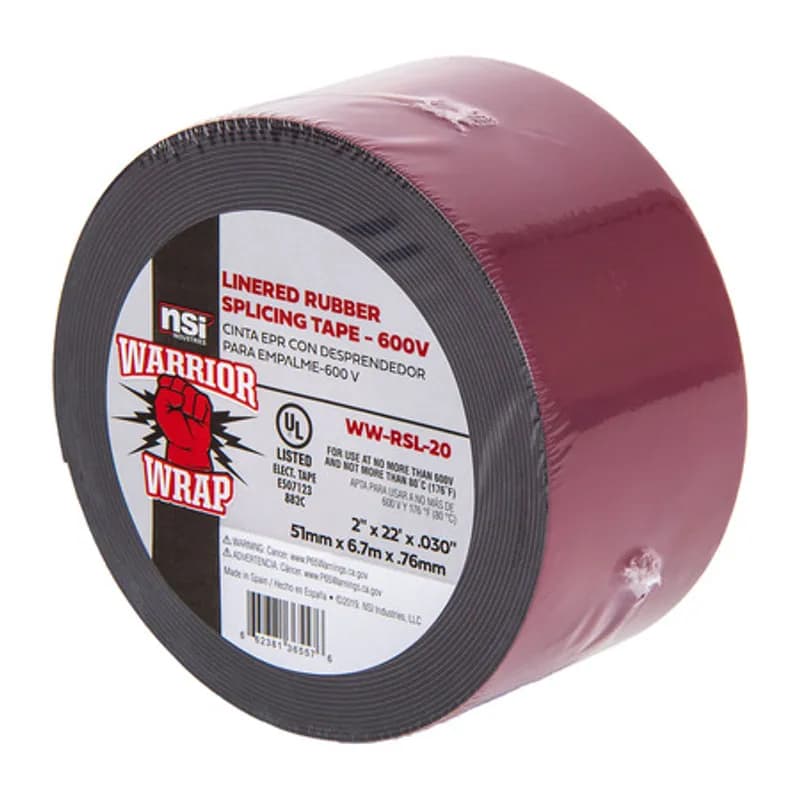

WarriorWrap WW-RSL-20 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RSL-20

WarriorWrap WW-RSL-20 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 2 inches wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.
WarriorWrap WW-RSL-10 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RSL-10

WarriorWrap WW-RSL-10 Black Linered Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1 inch wide, 22ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes while the liner repels dust and dirt during installation. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

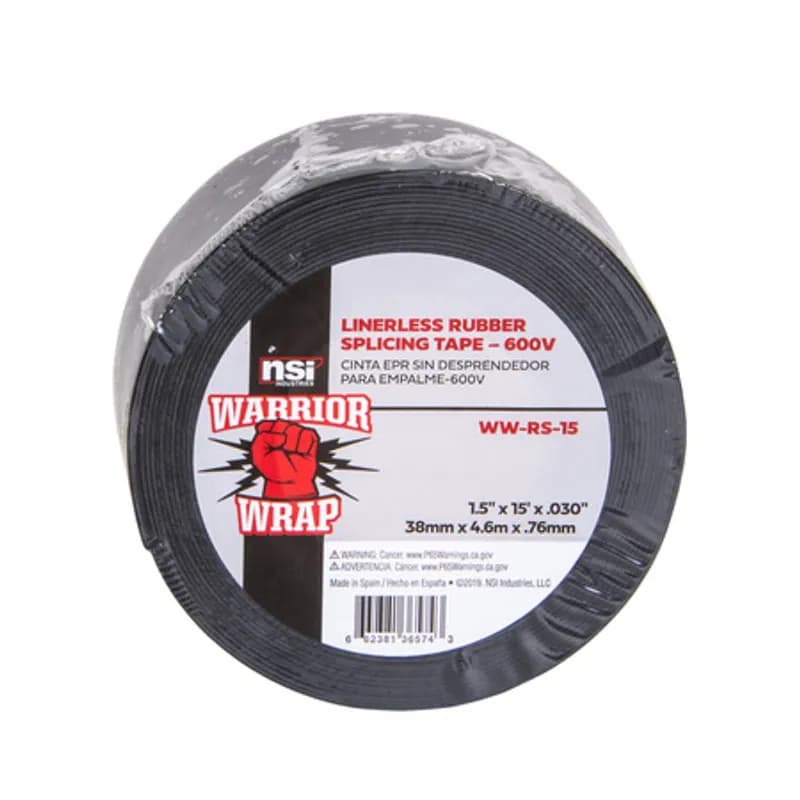

WarriorWrap WW-RS-15 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RS-15

WarriorWrap WW-RS-15 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 1.5 inch wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

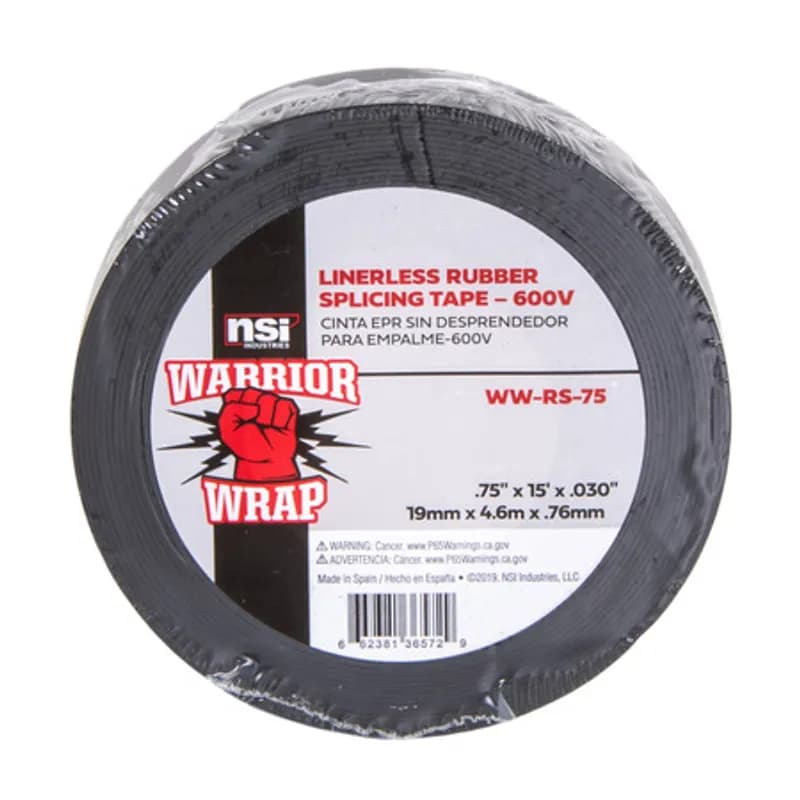

WarriorWrap WW-RS-75 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

WW-RS-75

WarriorWrap WW-RS-75 Black Linerless Rubber Splicing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 15ft long and is made from temperature-stable materials. The self-bonding adhesive ensures moisture protection and easily conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for insulating, jacketing of splices on power cables, jacketing terminations or for building stress cones.

Frequently Asked Questions

What is the maximum voltage rating for WW-RSL-15?

The WW-RSL-15 is rated for use up to 600 volts.

What is the continuous operating temperature?

The continuous operating temperature is 176°F (80°C).

What is the thickness of the WW-RSL-15 tape?

The WW-RSL-15 tape has a thickness of 30 mils (0.76mm).

Is WW-RSL-15 compatible with all cable insulations?

Yes, WW-RSL-15 is compatible with all extruded dielectric cable insulations.

What color is the WW-RSL-15 tape?

The WW-RSL-15 tape is black.

How should WW-RSL-15 be stored?

Store WW-RSL-15 in its original packaging, horizontally, at temperatures between 5ºC and 35ºC.

What is the shelf life of WW-RSL-15?

The shelf life of WW-RSL-15 is 24 months from the date of manufacture.

What is the tensile strength of WW-RSL-15?

The tensile strength of WW-RSL-15 is 435.11 psi.

What is the elongation percentage for WW-RSL-15?

The elongation percentage for WW-RSL-15 is 500%.

What warranty does NSI Industries provide for WW-RSL-15?

NSI Industries warrants that WW-RSL-15 will be free from material and manufacturing defects at the date of shipment.
