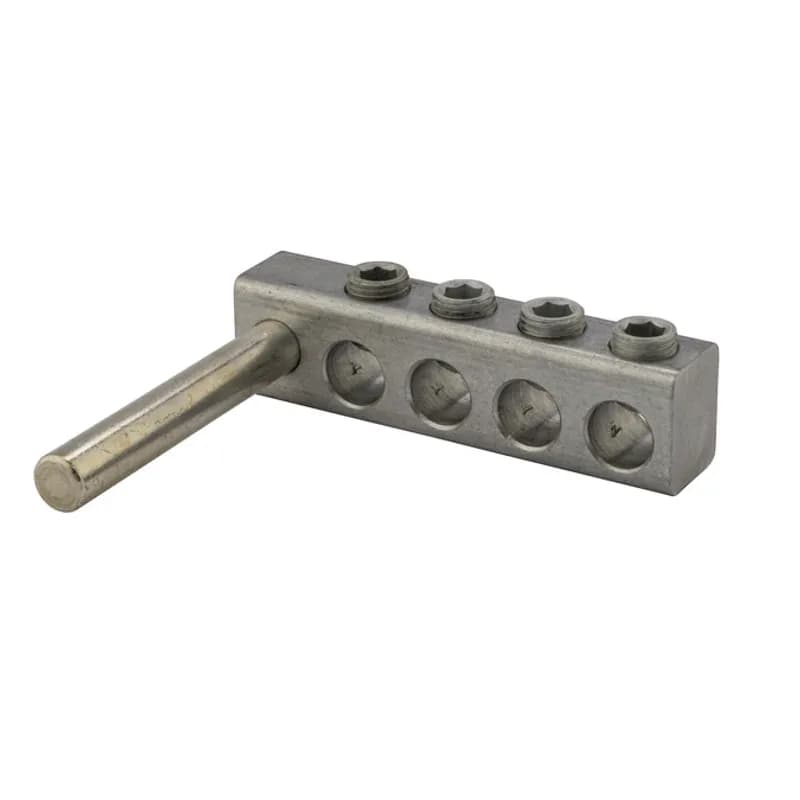

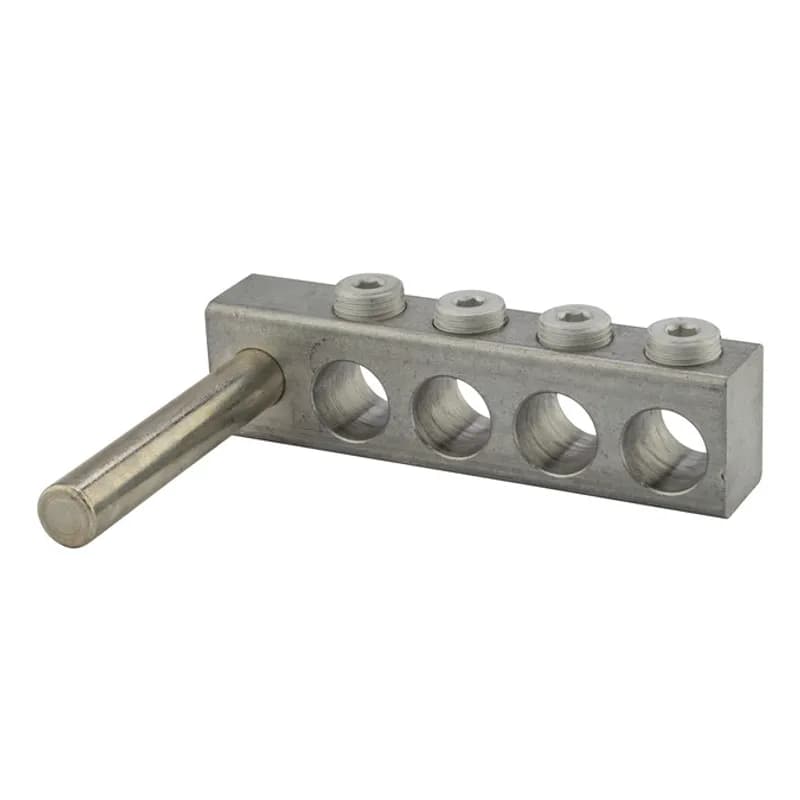

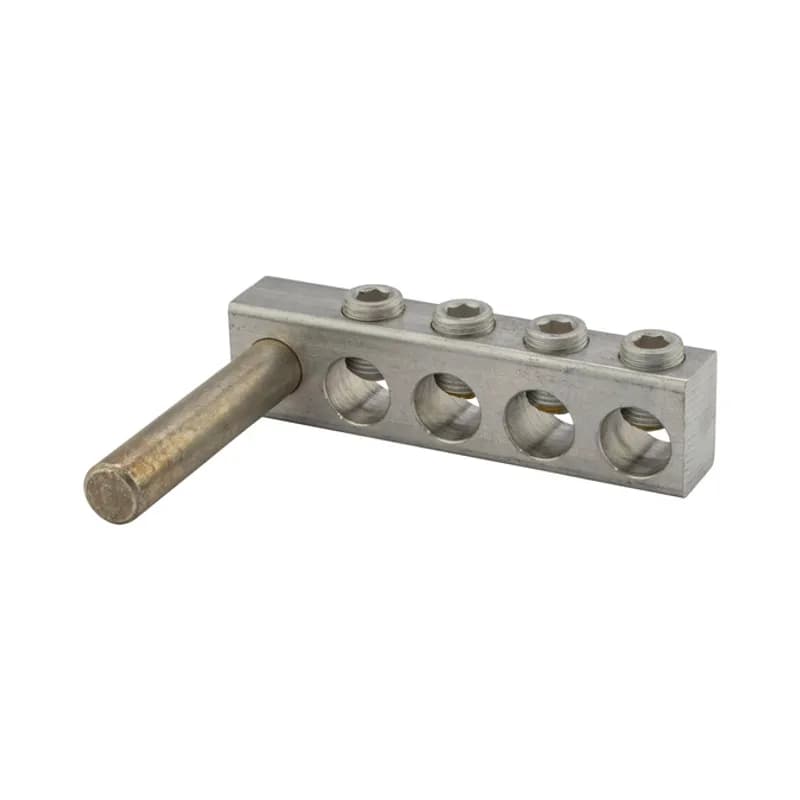

NSI Industries TS350-4 - 4 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
NSI Industries

TS350-4

UPC: 662381023650

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries TS350-4 is a 4-port, dual-rated transformer stud connector engineered for reliable electrical connections in industrial and commercial transformer applications. Constructed from 6061-T6 aluminum alloy, this connector delivers superior electrical conductivity and mechanical strength, ensuring long-term performance under demanding conditions. The clear-plated aluminum body minimizes contact resistance, while the tin-plated copper stud further enhances electrical efficiency when connecting to transformer terminals. This dual-rated connector supports both copper and aluminum conductors, offering versatility for mixed-material wiring systems. Rated for 600V and 90°C operation, the TS350-4 meets or exceeds ANSI C119.4 Class A standards, providing compliance with industry safety and performance requirements. Its reusable set-screw design simplifies installation and maintenance, reducing downtime and labor costs. Ideal for transformer secondary connections, distribution panels, and heavy-duty electrical assemblies, the TS350-4 combines durability, compliance, and ease of use in a single, high-performance component. The TS350-4 is designed for conductors ranging from 350 MCM down to -6 AWG. The 6061-T6 aluminum alloy construction provides exceptional electrical and mechanical performance. The clear plating on the connector body and the tin plating on the copper stud are specifically chosen to ensure low contact resistance for efficient connections to transformer studs. This dual-rated capability makes it suitable for a wide array of applications where both copper and aluminum conductors are utilized. The connector's ability to meet or exceed ANSI C119.4 Class A standards underscores its quality and reliability in demanding electrical environments. SKU: TS350-4. UNSPSC Code: 39121408.
  • 4-port design for multi-conductor connections
  • Dual-rated for copper and aluminum conductors (350 MCM - 6 AWG)
  • 6061-T6 aluminum alloy with clear plating for low contact resistance
  • Tin-plated copper stud for enhanced electrical performance
  • Meets ANSI C119.4 Class A standards, rated 600V, 90°C
  • Meets or exceeds ANSI C119.4 Class A
  • Rated 600V and 90 degrees Celsius
  • Versatile and reusable set screw design

Specifications

Connection Type
Set Screw
Material
6061T-6 Aluminum Alloy
Poles
4 Port
Size
350 MCM - 6 AWG
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
4.95 IN x 0.88 IN x 1.25 IN
Package Dimensions (L x W x H)
12.573 cm x 22.352 mm x 3.175 cm
Package Weight (Imperial)
0.784 L
Package Weight (Metric)
0.356 kg
