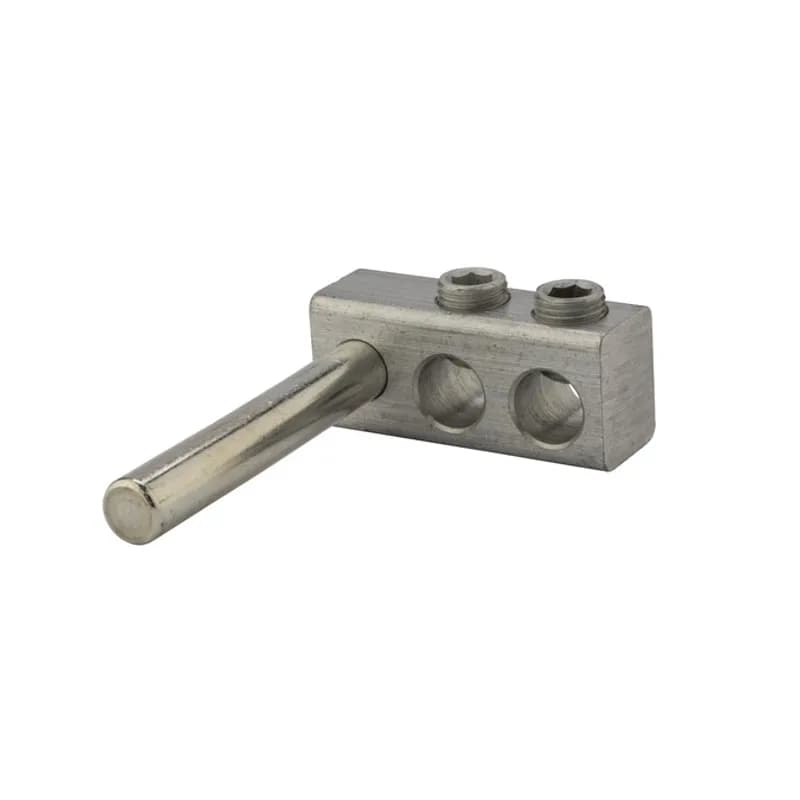

NSI Industries TS250-2 - 2 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
NSI Industries

TS250-2

UPC: 662381023568

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries TS250-2 is a high-quality, dual-rated aluminum transformer stud connector designed for reliable electrical connections in demanding applications. Constructed from robust 6061-T6 aluminum alloy, this connector offers superior electrical and mechanical performance. Its clear plating ensures low contact resistance, while the tin-plated copper stud further enhances conductivity for secure connections to transformers. Engineered for versatility, the TS250-2 accommodates both copper and aluminum conductors ranging from 250 MCM down to -6 AWG, making it suitable for a wide array of electrical systems. This connector meets or exceeds ANSI C119.4 Class A standards, underscoring its commitment to quality and safety. It is rated for a maximum voltage of 600V and a continuous operating temperature of 90°C (AL9CU), ensuring dependable performance under load. The TS250-2 features two conductor ports and is designed for use with a 1/2" mounting bolt, with a maximum torque value of 360 in./lbs. and requiring a 5/16" hex wrench for installation. Its compact dimensions, with a length of 2.59 inches, width of 0.88 inches, and height of 1.13 inches, facilitate installation in various electrical enclosures. Each standard carton contains one unit, providing a convenient solution for electrical contractors and maintenance professionals. Key Specifications: - SKU: TS250-2 - Manufacturer: NSI Industries - Wire Range: 250 MCM -6 AWG - Number of Conductors: 2 - Material: 6061-T6 Aluminum Alloy - Stud Material: Tin-Plated Copper - Plating: Clear plated (conductor side), Electro-tin plated (stud side) - Voltage Rating: 600V max. - Temperature Rating: 90°C - Standard: Meets or exceeds ANSI C119.4 Class A - Mounting Bolt Size: 1/2" - Max Torque Value: 360 in./lbs. - Hex Wrench Size: 5/16" - Dimensions (L x W x H): 2.59" x 0.88" x 1.13" - UNSPSC Code: 39121408
  • Constructed from high-strength 6061-T6 aluminum alloy for superior performance.
  • Dual-rated for use with both copper and aluminum conductors.
  • Tin-plated copper stud ensures low contact resistance for transformer connections.
  • Meets or exceeds ANSI C119.4 Class A standards.
  • Rated 600V maximum and 90°C temperature rating.

Specifications

Connection Type
Set Screw
Material
6061T-6 Aluminum Alloy, Tin Plated Copper
Poles
2
Size
250 MCM -6 AWG
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
2.59 IN x 0.88 IN x 1.13 IN
Package Dimensions (L x W x H)
6.5786 cm x 22.352 mm x 2.8702 cm
Package Weight (Imperial)
0.440 L
Package Weight (Metric)
0.200 kg
