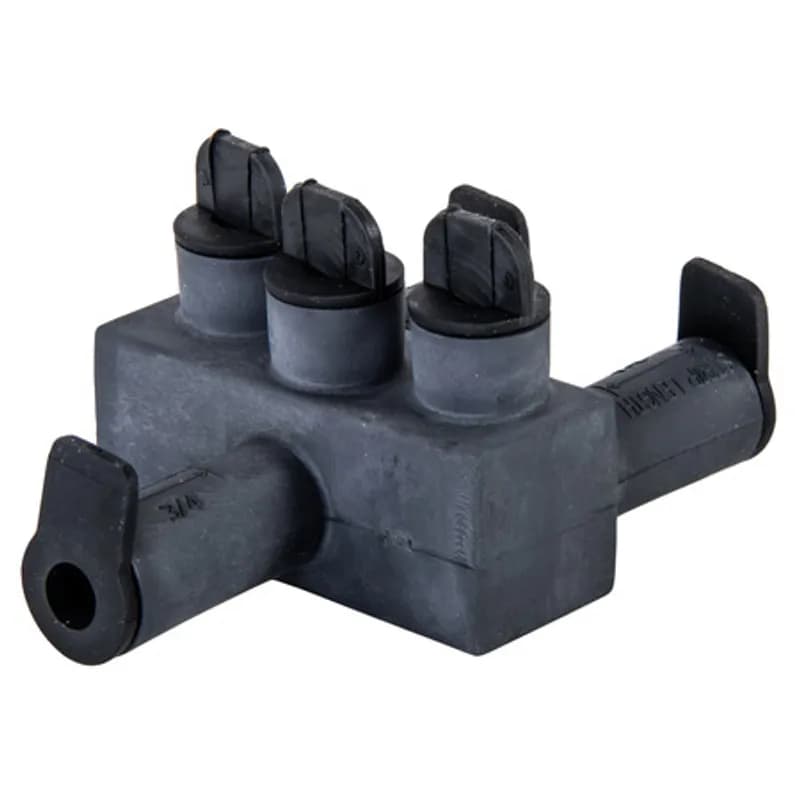

NSI Industries ISPBO2/0B - The Polaris ISPBO2/0B Multi-Tap Direct Burial Submersible Offset Port Connector features 3 ports, two on one side and one on the other, sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each offset port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.
NSI Industries

ISPBO2/0B

UPC: 662381800664

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The Polaris ISPBO2/0B 3-Port Offset Entry Submersible Connector provides the simplest solution for forming a secure connection between up to three conductors in direct burial or temporary submersal applications with a wide range of wire sizes. Sized for 2/0 - 14 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional connector options using just a hex key and torque wrench. The aluminum alloy body is wrapped in high-dielectric strength rubber insulation with a nominal thickness of 125 mils, which is ergonomically molded to offer a comfortable grip and is resistant to abrasion, chemicals and UV rays. Meets or exceeds UL486D and ANSI C119.1 specifications for use in temporary submersion, direct burial, or damp locations subject to occasional flooding. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered radial tipped set-screws. The ISPBO2/0 connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 195 and 150 respectively. Polaris: the original pre-insulated connector and still the brand most asked for by name.
  • Offset Wire Entry: Form secure connections between 3 conductors quickly using the offset entry ports sized for wires between 2/0 and 14 AWG
  • Direct Burial Applications: High-strength aluminum alloy body and rubber insulation with a nominal thickness of 125 mils built for temporary submersal or direct burial applications
  • Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
  • Pre-filled Oxide Inhibitor: All 3 offset entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or contamination
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

Specifications

Aluminum Conductor Max AMP
150 Amp
Aluminum Conductor Note
Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Application
Wire Termination
Color
Black
Copper Conductor Max
195 Amp
Environmental Conditions
90 C
Finish
EPDM Rubber Insulated
Housing Material
Aluminum
Housing Material
Aluminium
Material
Aluminum
Number Of Conductors
3
Number Of Poles
1
Size
L=2.79 - W=4.18 - H=2.10 IN
Special Features
Offset 2/0-14 AWG - Bagged - Dual Rated
Standard
ANSI C119.4, C119.1, UL486D UL 486D
Temperature Rating
90 C
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Submersible Pedestal Connectors
Voltage Rating
600 V
Warranty
1 Year
Wire Size
2/0-14 AWG
Wire Type
Class B & C
Wire/Cable Class
Class B, Class C
Package Dimensions (L x W x H)
2.79 IN x 4.18 IN x 2.1 IN
Package Dimensions (L x W x H)
7.0866 cm x 10.6172 cm x 5.334 cm
Package Weight (Imperial)
0.306 L
Package Weight (Metric)
0.139 kg

Similar Products

ISPBO2/0

Special Features: Offset 2/0-14 AWG - Dual Rated

Voltage Rating: 600 V

Environmental Conditions: 90 C

ISPBS2/0B

Number Of Conductors: 2

Special Features: Splice 2/0-14 AWG - Bagged - Dual Rated

Size: L=.880 - W=5.05 - H=2.10 IN

ISPBS2/0

Number Of Conductors: 2

Special Features: Splice 2/0-14 AWG - Dual Rated

Voltage Rating: 600 V

ISPBS350B

Number Of Conductors: 2

Special Features: Splice 350 MCM-6 AWG - Bagged - Dual Rated

Size: L=1.25 - W=8.83 - H=3.38 IN

ISPBS350

Wire Size: 350 MCM-12 AWG

Number Of Conductors: 2

Special Features: Splice 350 MCM-6 AWG - Dual Rated

ISPB2/0-2

Environmental Conditions: 90 C

Size: L=1.93 - W=2.65 - H=2.10 IN

Temperature Rating: 90 C

You May Also Be Interested In

The Polaris ISPBO2/0 Multi-Tap Direct Burial Submersible Offset Port Connector features 3 ports, two on one side and one on the other, sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each offset port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.

ISPBO2/0

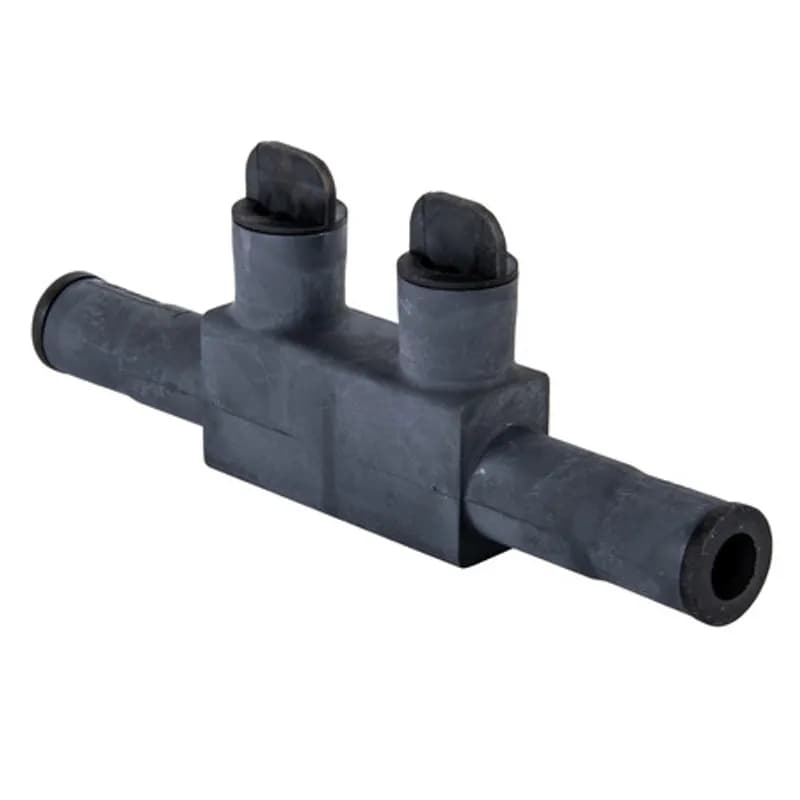

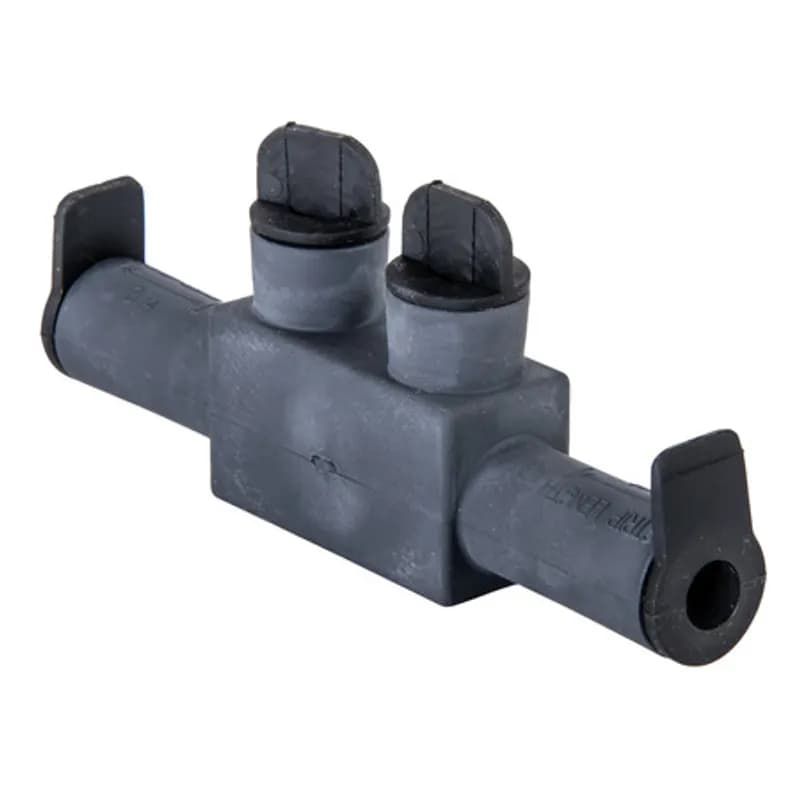

The Polaris ISPBS2/0B Multi-Tap Direct Burial Submersible In-Line Port Connector features 2 in-line ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.

ISPBS2/0B

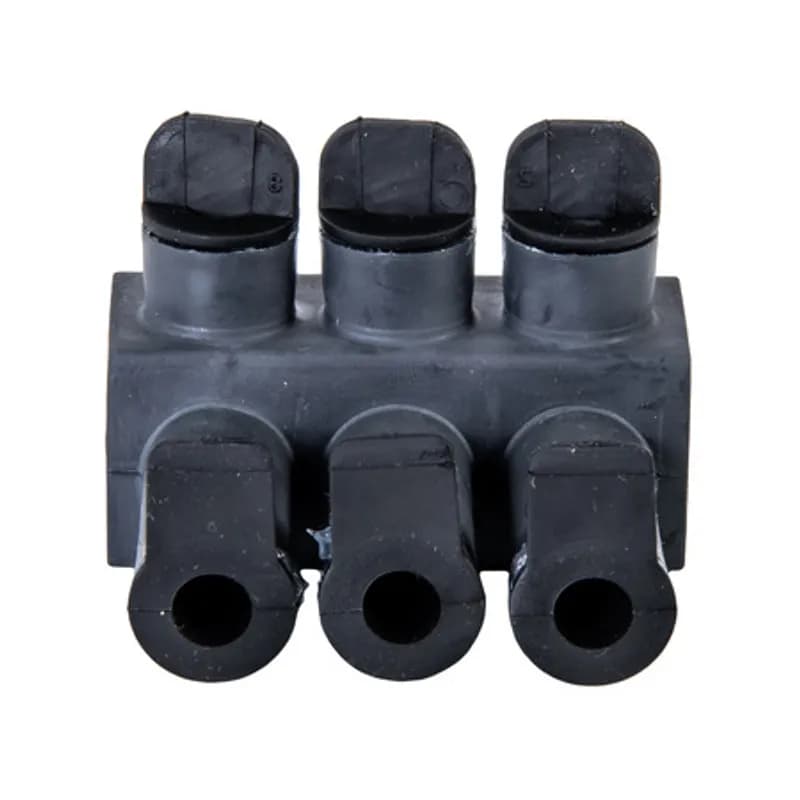

The Polaris ISPB2/0-3B Multi-Tap Direct Burial Single-Sided Entry Connector features 3 ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each single-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Rated for temporary submersion, wet or damp locations and direct burial applications. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL 486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.
