NSI Industries IPLD250-3 - The Polaris IPLD250-3 Multi-Tap Dual-Sided Entry Black Connector features 3 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
More images

NSI Industries IPLD250-3 The Polaris IPLD250-3 Multi-Tap Dual-Sided Entry Black Connector features 3 ports sized…

UPC: 662381923011

Documents & Media
BrochureTechnical BulletinInstallation Instructions

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The NSI Polaris IPLD250-3 is a 3-port, dual-sided entry, pre-insulated multi-tap connector engineered for secure, high-current splicing of 250 MCM to 6 AWG copper or aluminum conductors. Designed for installation in cable trays, panel boards, ducts, raceways, or troughs, this connector eliminates the need for tape, covers, or additional supplies—streamlining every job with a single tool solution. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, providing abrasion, chemical, and UV resistance while preventing combustion. Each port is pre-loaded with an oxide inhibitor and features removable access plugs over hex screws for precise torque control (175–225 in./lbs) using a 1/4" hex key. The IPLD250-3 supports a 600V rating, operates at 90°C, and is dual-rated for copper (290A max) and aluminum (230A max) cables. Cold-temperature performance is verified down to -45°C.
  • Dual-Sided Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 250 MCM and 6 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 3 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Full Product Line: Polaris matches your application with multiple UL-listed parallel configurations across a range of gauges and number of ports

Specifications

Aluminum Conductor Max AMP
230 Amp
Aluminum Conductor Note
Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Application
Wire Termination
Color
Black
Connection Type
Screw Terminal
Copper Conductor Max
290 Amp
Current Rating
290 A (Cu), 230 A (Al)
Environmental Conditions
90 C
Finish
Plastisol Insulated
Housing Material
Aluminum
Housing Material
Aluminium
Material
Aluminum Alloy, Plastisol
Material
Aluminum
Mounting Type
Cable Trays, Panel Boards, Ducts, Raceways, Troughs
Number Of Conductors
3
Number Of Poles
1
Poles
3
Series
Polaris IPLD
Size
250 MCM - 6 AWG
Size
L=2.930 - W=2.280 - H=2.180 IN
Special Features
(3) 250 MCM-6 AWG - Dual Rated
Standard
UL 486A/B
Temperature Rating
90 C
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Double Sided Entry
Voltage Rating
600 V
Warranty
1 Year
Wire Size
250 MCM-6 AWG
Wire Type
Class B & C
Wire/Cable Class
Class B, Class C
Package Dimensions (L x W x H)
2.93 IN x 2.28 IN x 2.18 IN
Package Dimensions (L x W x H)
7.4422 cm x 5.7912 cm x 5.5372 cm
Package Weight (Imperial)
0.350 L
Package Weight (Metric)
0.159 kg
The Polaris IPLD250-3B Multi-Tap Dual-Sided Entry Black Connector features 3 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies, and comes packaged in a clear plastic bag with a mounting hole for hanging in retail displays. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD250-3B

The Polaris IPLD250-3B Multi-Tap Dual-Sided Entry Black Connector features 3 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies, and comes packaged in a clear plastic bag with a mounting hole for hanging in retail displays. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Bi-Metal Pin Connectors with Insulating Cover, 600V, Aluminum Cable Size 8 AWG to Copper Pigtail Wire Size 10 AWG, Tin Plated, Die Code 24, Die Color Code Blue

61905A

Bi-Metal Pin Connectors with Insulating Cover, 600V, Aluminum Cable Size 8 AWG to Copper Pigtail Wire Size 10 AWG, Tin Plated, Die Code 24, Die Color Code Blue
Panduit DV18-250B-3K Female Disconnect

DV18-250B-3K

Panduit DV18-250B-3K Female Disconnect
Rectangular Power Connectors, Housing, Receptacle / Plug, Wire-to-Wire, 1 Position, Wire & Cable, UL 94V-2, Power, Panel Mount

53884-1

Rectangular Power Connectors, Housing, Receptacle / Plug, Wire-to-Wire, 1 Position, Wire & Cable, UL 94V-2, Power, Panel Mount
The Polaris IPLD250-10 Multi-Tap Dual-Sided Entry Connector features 10 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD250-10

The Polaris IPLD250-10 Multi-Tap Dual-Sided Entry Connector features 10 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

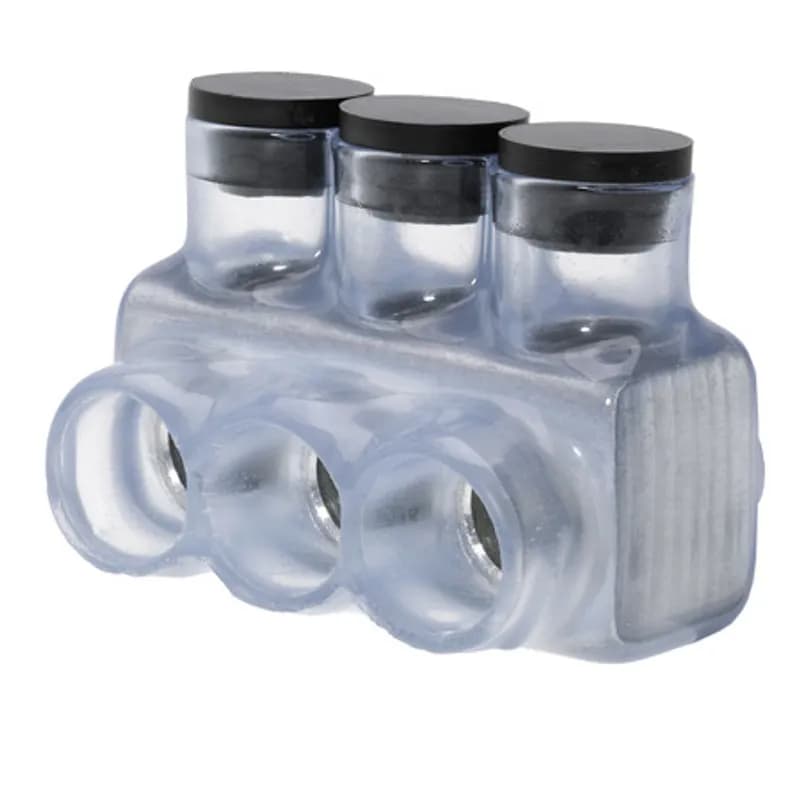

The Polaris IPL250-4 Multi-Tap Single Side Entry Connector features 4 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPL250-4

The Polaris IPL250-4 Multi-Tap Single Side Entry Connector features 4 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris IPL4-4 Multi-Tap Single Side Entry Connector features 4 ports sized for 4-14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPL4-4

The Polaris IPL4-4 Multi-Tap Single Side Entry Connector features 4 ports sized for 4-14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris PL500-10 Uninsulated Multi-Tap Connector features 10 ports sized for 500 MCM - 4 AWG wires. The body is made from aluminum alloy and plated for corrosion resistance. Each pass-through port features a hex screw used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

PL500-10

The Polaris PL500-10 Uninsulated Multi-Tap Connector features 10 ports sized for 500 MCM - 4 AWG wires. The body is made from aluminum alloy and plated for corrosion resistance. Each pass-through port features a hex screw used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
