Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview

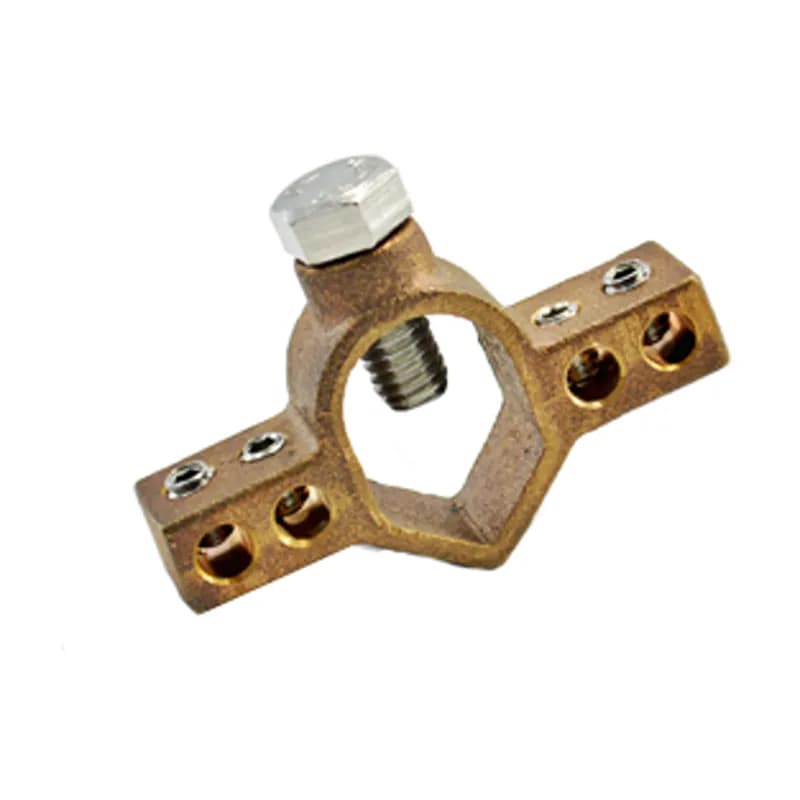

- NEC 2008 250.94 compliant for intersystem bonding terminations
- Dual-rated for copper or aluminum conductors (#2 to #6 AWG)
- Stainless steel screws for corrosion resistance
- Compact design (1.4"H x 1.19"W x 3.93"L) for indoor/outdoor use
- UL467 and cULus Listed for grounding and bonding
Specifications
Application | Used as an Intersystem bonding means by utilizing 4-terminal points for connecting communication systems to the same electrical grounding electrod, rod or rebar. Patented |
Conductor Material | Brass/Stainless Steel |
Conductor Size | Terminal: Conductor Ranges: #14-#10 requires 20 in lbs of torque, #8-#4 requires 45 in lbs of torque-Solid or Stranded Copper Conductors Only. Under Ground Rod: #8-#2 Solid/Stranded Ground Rod bolt requires 150 in-lb of torque. |
Connection Type | Screw Clamp |
Material | Stainless Steel |
Mounting Type | Direct Burial |
Series | IGBC |
Size | 5/8 & 1/2 Ground Rod or #3 & #4 Reinforcing Bars in |
Special Features | Rated for Direct Burial Terminals contain allen head type set screws |
Standard | UL |
Type | Intersystem Bonding Bridge |
Package Weight (Imperial) | 0.310 L |
Package Weight (Metric) | 0.141 kg |
95074
A 3/4 in. ground clamp for direct burial applications. The clamp is cast from a high strength, highly conductive copper alloy and uses a brass/stainless steel hex head bolt. It is sized for 0.750 in. conductor and wire size 10 SOL - 2 STR.
GG40250-2030
E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial

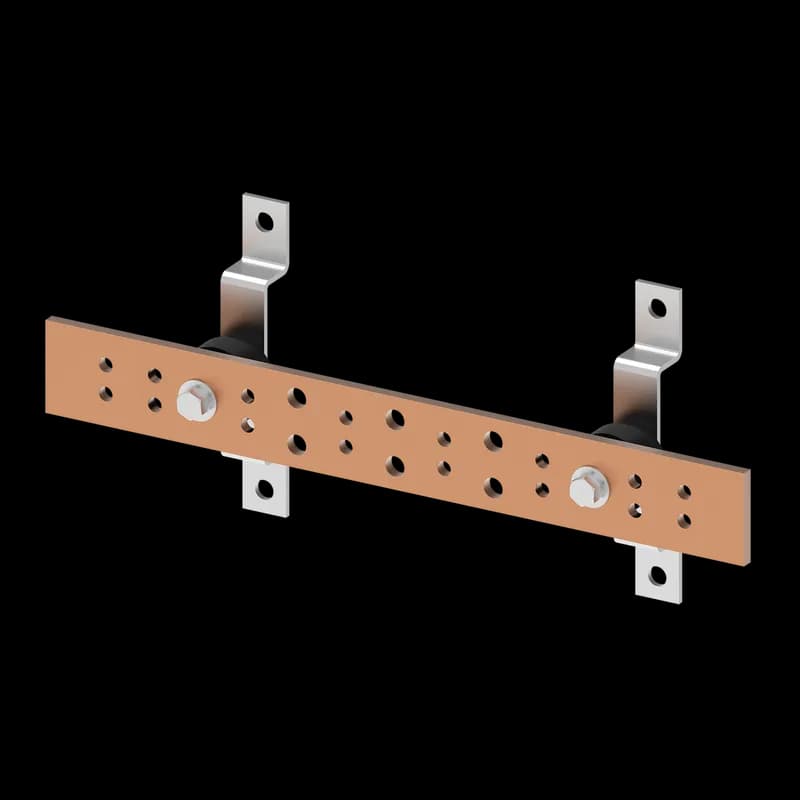

HDW3/8-KT
Stainless steel mounting hardware for busbar; two 3/8-16 hex bolts, two 3/8-16 hex nuts, four 3/8 flat washers and two 3/8 Belleville compression washers. Mounting hardware for rack or cabinet; two #12-24 thread-forming screws and two M6 thread-forming screws.
Frequently Asked Questions
What is the material of the IGBC-063?
The IGBC-063 is made of a brass body with stainless steel screws.
What is the purpose of the IGBC-063?
The IGBC-063 is used as an intersystem bonding means for connecting communication systems to the same electrical grounding electrode.
What are the dimensions of the IGBC-063?
The dimensions are A: 2.66 inches, B: 0.50 inches, C: 0.63 inches, D: 0.26 inches.
What certifications does the IGBC-063 have?
The IGBC-063 is certified under NEMA Standard FB-1 and UL Standard UL-467.
What is the trade size for the IGBC-063?
The trade size for the IGBC-063 is 1/2 inch to 5/8 inch.
Is the IGBC-063 patented?
Yes, the IGBC-063 has a patent number D648,281.
What is the standard package quantity for the IGBC-063?
The standard package quantity for the IGBC-063 is 100 units.
What is the UPC number for the IGBC-063?
The UPC number for the IGBC-063 is 78174702371.
