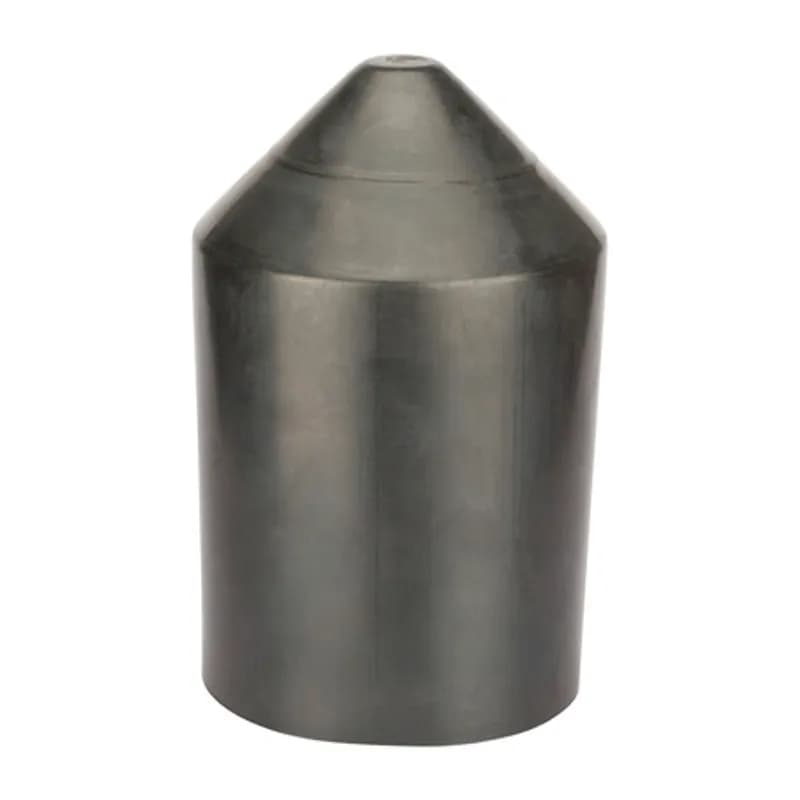

NSI Industries HSC-195 - Easy-Splice Heat Shrinkable End Cap 750 - 1500 MCM These caps replace greases, tapes, epoxy, encapsulation, or dips. In most sizes, installation may be accomplished in less than one minute. Heat-shrinkable end caps provide for efficient and positive cable end sealing. Made of thermally stabilized polyolefin, the interior of the HSC is coated with a meltable sealant to assure a watertight seal, complete insulation, abrasion and corrosion resistance. Seals may be affected over lead, steel, aluminum, copper and all standard plastic and elastomeric insulating materials and conduit. HSC end sealing caps are qualified to ANSI C119.1-1986 and rated to ICEA electrical withstand test for 1,000 volts. HSC end sealing caps can be used as a live seal for cables carrying up to 1,000 volts. They can also be used as end seals for storing and pulling de-energized cable.
NSI Industries

HSC-195

UPC: 662381014672

Contact for Pricing

Overview

The NSI Industries HSC-195 Easy-Splice Heat Shrinkable End Cap is engineered for efficient and positive cable end sealing, offering a superior alternative to traditional greases, tapes, epoxies, encapsulation, or dips. Designed for conductor sizes ranging from 750 to 1500 MCM, this end cap features a general use range of 1.950 inches (max) to 1.050 inches (min). Installation is remarkably fast, often accomplished in under one minute for most sizes, significantly reducing labor time and complexity. Constructed from thermally stabilized polyolefin, the HSC-195 is built for durability and reliable performance. Its interior is coated with a meltable sealant that activates upon heating, creating a watertight seal that provides complete insulation, abrasion resistance, and corrosion resistance. This robust sealing capability ensures protection against environmental ingress, making it suitable for a wide variety of cable types and conditions. The HSC-195 can effectively seal over lead, steel, aluminum, copper, and all standard plastic and elastomeric insulating materials, as well as conduit. Meeting stringent industry standards, the HSC end sealing caps are qualified to ANSI C119.1-1986 and rated to ICEA electrical withstand test for 1,000 volts. This makes the HSC-195 suitable for use as a live seal on cables carrying up to 1,000 volts. Furthermore, it serves as an excellent end seal for storing and pulling de-energized cable, offering protection during these critical phases of cable management. Each standard carton contains 10 units, ensuring you have an adequate supply for your projects. Choose the NSI HSC-195 for a fast, reliable, and compliant cable end sealing solution.
  • Replaces greases, tapes, epoxy, encapsulation, or dips
  • Installation in less than one minute for most sizes
  • Watertight seal, complete insulation, abrasion and corrosion resistance
  • Seals over lead, steel, aluminum, copper, plastic, elastomeric materials, and conduit
  • Qualified to ANSI C119.1-1986 and rated to ICEA 1,000V withstand test

Specifications

Amperage Rating
1000 V
Application
NSI
Power Frequency
1 x 1012 ohm-cm
Power Frequency Withstand Voltage Wet&Dry
430 V/mil
Ribs
Black
Size
1.94 IN
Special Features
Heat Shrink End Caps Provide For Efficient And Positive Cable End Sealing
Standard
ANSI C119.1-1986 Qualified
Type
Heat Shrink End Cap
Voltage Rating
1000V
Warranty
1 Year
Package Dimensions (L x W x H)
6.25 IN x 1.95 IN x 1.95 IN
Package Dimensions (L x W x H)
15.875 cm x 4.953 cm x 4.953 cm
Package Weight (Imperial)
0.190 L
Package Weight (Metric)
0.086 kg
