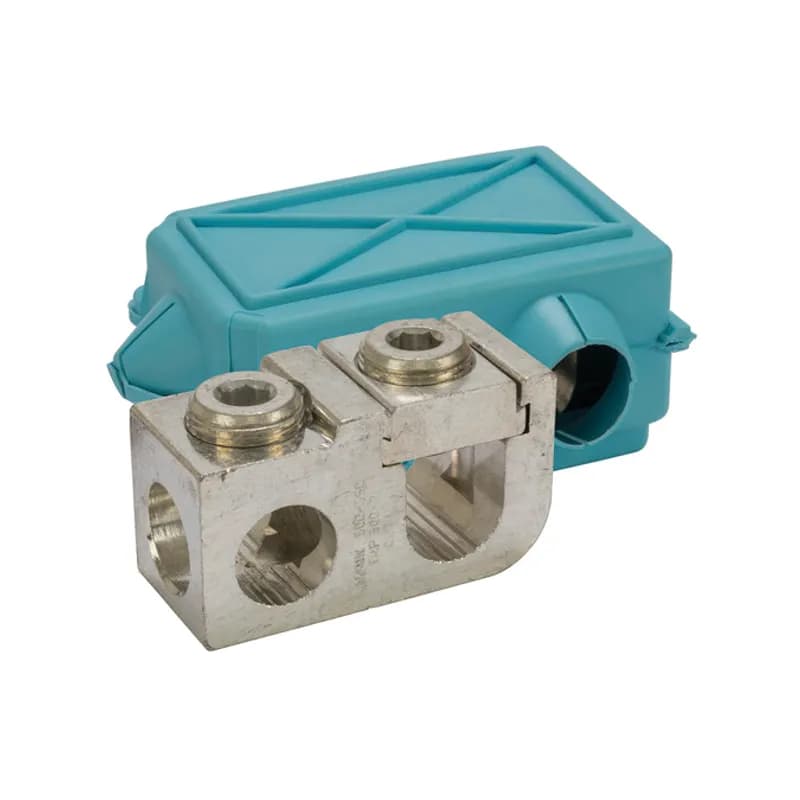

NSI Industries GP-500WC - 500 MCM Parallel "T" Tap Connector With Cover Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.
NSI Industries

GP-500WC

UPC: 662381003065

Contact for Pricing

Overview

The NSI Industries GP-500WC 500 MCM Parallel 'T' Tap Connector with Cover is a high-performance, UL Listed mechanical connector designed for safe and efficient tapping of main conductors without cutting. Engineered for copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum applications, this connector supports solid and stranded wires ranging from 500 MCM to 2 AWG for the main conductor and 500 MCM to 2 MCM for the tap conductor. The lay-in feature eliminates the need to cut the main conductor, while the perpendicular tap allows for both parallel and 'T' tap configurations. The flexible, snap-fit cover ensures a secure, watertight seal without the need for additional taping, reducing installation time and labor costs. Electro-tin plated for low contact resistance, the GP-500WC is rated for 600V and 90°C, making it suitable for demanding industrial and commercial applications. The connector features a secure snap cover that eliminates the need for taping, a rubber grommet for watertight sealing, and double shear-head bolts to ensure a perfect connection every time. With a maximum torque value of 375 in./lbs. and a hex wrench size of 0.375 inches, installation is straightforward and requires no special tools. The GP-500WC is UL Listed/cULus Listed under E155274 and UL486A/B, and CSA 701642 certified, ensuring compliance with industry standards. Ideal for use in energized conductor applications (tap must not be under load), this connector is not recommended for extra-flexible cables or submersible applications.
  • Lay-in feature eliminates need to cut main conductor
  • Perpendicular tap supports parallel or 'T' tap configurations
  • Snap-fit cover provides secure, watertight seal without taping
  • Electro-tin plated for low contact resistance
  • Rated 600V, 90°C; UL Listed/cULus Listed and CSA certified

Specifications

Application
Wire Termination
Color
Blue
Color
Blue Cover
Connection Type
Lay-in
Environmental Conditions
90 C
Finish
Aluminum
Housing Material
Aluminum
Housing Material
Aluminium
Material
Aluminum
Number Of Conductors
2
Number Of Poles
1
Series
GP
Size
L=4.89 - W=3.34 - H=2.12 IN
Size
500 MCM
Special Features
(Main) 500-350 MCM - (Tap) 500 MCM-2 AWG - Dual Rated - 2 Pack - With Blue Cover
Standard
UL486B
Temperature Rating
90 C
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Aluminum Tap Connector With Cover
Voltage Rating
600 V
Warranty
1 Year
Wire Size
(Main) 500-350 MCM - (Tap) 500 MCM-2 AWG
Wire Type
AL/CU
Package Dimensions (L x W x H)
4.89 IN x 3.34 IN x 2.12 IN
Package Dimensions (L x W x H)
12.4206 cm x 8.4836 cm x 5.3848 cm
Package Weight (Imperial)
0.740 L
Package Weight (Metric)
0.336 kg
