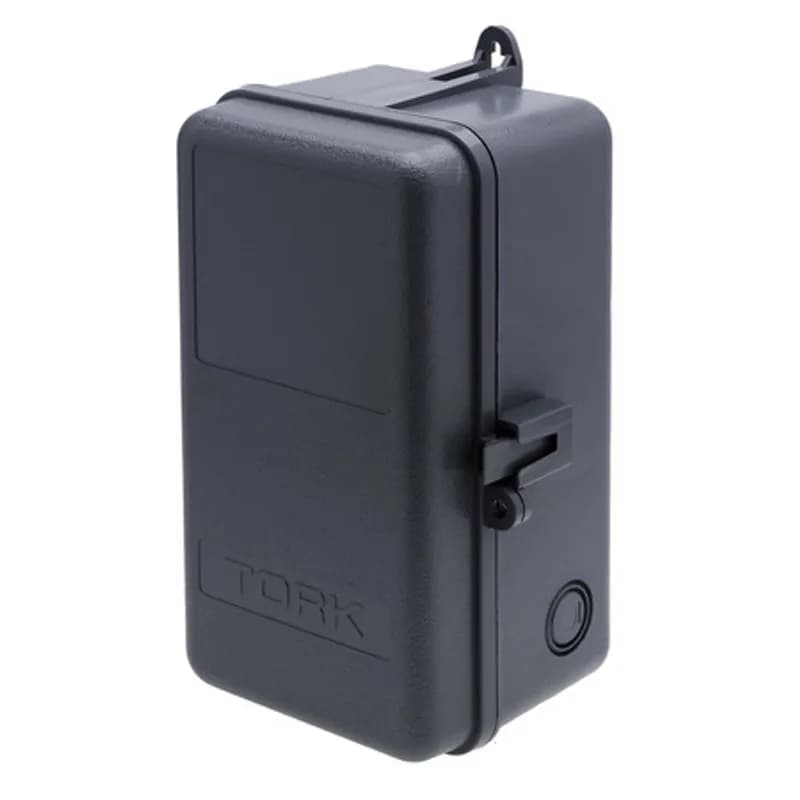

NSI Industries DTS400B - 365 Day Digital Signal Timer 4CH
NSI Industries

DTS400B

UPC: 786261821874

Contact for Pricing

Overview

Tork 7/365 Day 4 Channel SPDT Digital Time Switch APPLICATIONS: Indoor and Outdoor Lighting Heating and Air Conditioning Security Systems Horns and Bells Low Voltage Lighting Misting and Spraying Roof Cooling Clock Correction Systems Process Functions FEATURES: TIMER SUPPLY: 120/208-270/277 50/60Hz INPUT VOLTAGE: 120/208-270/277 50/60Hz DRY CONTACTS: SPDT NO. OF CHANNELS: 2 Channel SCHEDULING: 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 minute apart. SEASONS: 1 to 4 with different daily schedules which can wrap around into the new year. HOLIDAYS: 1 to 24 individual dates. SIGNAL/PULSE DURATION: 2 different settings per channel: each 1-99 seconds. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. In signal mode, activates pulse. CLOCK FORMAT: AM/PM or Military time. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 7 days of real time backup. ENCLOSURE: Noryl Indoor/Outdoor NEMA 3R with lockable hasp. BRAND EQUIVALENT: Paragon EC74/50S UPC: 786261821874 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Contact Rating NO: 30A NC: 30A BALLAST: 120VAC. Contact Rating NO: 30A NC: 10A 277VAC. Contact Rating NO: 20A NC: 10A TUNGSTEN: 120-277VAC. Contact Rating NO: 15A NC: 2A PILOT DUTY: 120-277VAC. Contact Rating NO: 720VA NC: 720VA MOTOR LOAD: 120VAC. Contact Rating NO: 1HP NC: 1HP 208-277VAC. Contact Rating NO: 2HP NC: 2HP RESISTIVE: 28VDC. Contact Rating NO: 30A NC: 30A

    Specifications

    Action
    SPDT
    Application
    NSI
    Base
    Screw
    Contact Rating
    120-208-240-277 VAC
    Enclosure
    NEMA 3R Noryl With Lockable Hasp
    Environmental Conditions
    -40 to + 149 F
    Frequency Rating
    50-60 Hz
    Initiation
    Contact
    Mounting
    Screw Mount
    Number Of Poles
    1
    Operating Temperature
    -40 to + 149 F
    Phase
    Single Phase
    Size
    L=5.000 - H=9.125 - W=4.500 IN
    Special Features
    SPDT 4 Channel 365-7 Day Digital Time Switch
    Standard
    UL917
    Timing Range
    365-7 Day
    Type
    365-7 Day Time Switch
    Package Dimensions (L x W x H)
    4.5 IN x 5 IN x 9.125 IN
    Package Dimensions (L x W x H)
    11.43 cm x 12.7 cm x 23.1775 cm
    Package Weight (Imperial)
    2.246 L
    Package Weight (Metric)
    1.019 kg
    The TORK DTS200B 365/7-Day Multipurpose Advanced Digital Timer has two channels designed for 30 amp, 120/208-240/277 VAC loads and has a Noryl plastic enclosure with a locking hasp for indoor or outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set up to 99 different on/off times each day of the week, with 24 unique holiday blocks. Designed for applications in the home, office, factory, church or school, including lights, heaters or air conditioners, water heaters, school warning signals or traffic lights.

    DTS200B

    The TORK DTS200B 365/7-Day Multipurpose Advanced Digital Timer has two channels designed for 30 amp, 120/208-240/277 VAC loads and has a Noryl plastic enclosure with a locking hasp for indoor or outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set up to 99 different on/off times each day of the week, with 24 unique holiday blocks. Designed for applications in the home, office, factory, church or school, including lights, heaters or air conditioners, water heaters, school warning signals or traffic lights.

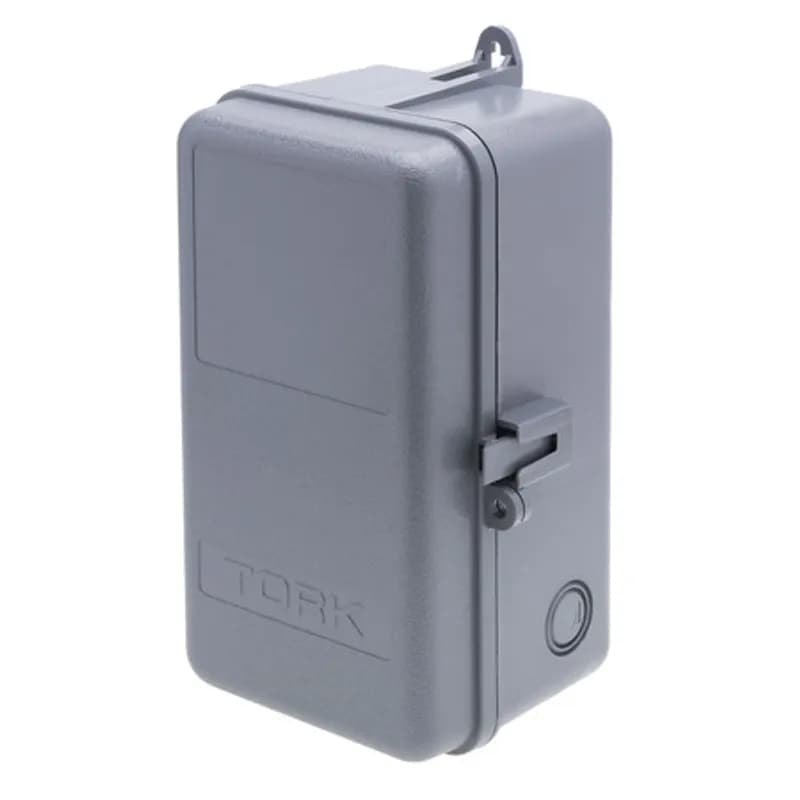

    The TORK DG200A 365/7-Day Multipurpose Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set different on/off times each day and 9 unique holiday blocks. Designed for applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights
