NSI Industries AS-K2-H6 - Power Distribution Block-Small (2) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
NSI Industries

AS-K2-H6

UPC: 662381165510

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries AS-K2-H6 Power Distribution Block (SKU: AS-K2-H6) is a compact and versatile solution for efficient power distribution in electrical systems. Constructed with a high-strength, high-conductivity aluminum alloy connector body mounted in a robust glass-filled polyester base, this block is built for durability and reliable performance. It features a 350 Amp per pole rating and is designed for operation at 90°C and 600V. The AS-K2-H6 offers two primary connection points, accommodating wire sizes from 2/0 AWG down to 14 AWG, and six secondary connection points for wire sizes ranging from 4 AWG to 14 AWG. This configuration makes it ideal for splitting a single power source into multiple circuits. Each block can be used independently or combined with other Connector Blok™ units to create custom multi-block configurations, offering significant flexibility for various project requirements. The block boasts a default SCCR (Short Circuit Current Rating) of 10,000 Amps, ensuring safety under fault conditions. It is CSA certified and UL Recognized. The compact dimensions of 2.90" (L) x 2.71" (W) x 1.04" (H) allow for space-efficient installations. Optional Connector Blok™ covers are available for added protection and safety. This distribution block is suitable for both copper and aluminum conductors.
  • High-strength, high-conductivity aluminum alloy construction
  • Durable glass-filled polyester base
  • 2 primary connection points (2/0-14 AWG)
  • 6 secondary connection points (4-14 AWG)
  • 350 Amp per pole rating, 600V, 90°C

Specifications

Amperage Rating
350 Amps Per Pole
Application
NSI
Color
Black
Material
Aluminum body -Glass Filled Polyester Base
Mounting
2 Mounting Holes
Number Of Terminals
8
Size
L=2.90 - H=2.34 - W=1.04 IN
Special Features
(2) 2/0-14 AWG (Line Side) - (6) 4-14 AWG (Load Side) - 350 Amps Per Pole
Standard
Recognized to UL1059
Type
Double Primary
Voltage Rating
600 V
Warranty
1 Year
Wire Size
(2) 2/0-14 AWG(Line) - (6) 4-14 AWG(Load)
Package Dimensions (L x W x H)
2.9 IN x 1.04 IN x 2.34 IN
Package Dimensions (L x W x H)
7.366 cm x 2.6416 cm x 5.9436 cm
Package Weight (Imperial)
0.702 L
Package Weight (Metric)
0.318 kg
Power Distribution Block (2) 2/0-14 AWG Primary (2) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K2-K2

Power Distribution Block (2) 2/0-14 AWG Primary (2) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
50 Amp Copper Soldering Lug

S-3

50 Amp Copper Soldering Lug

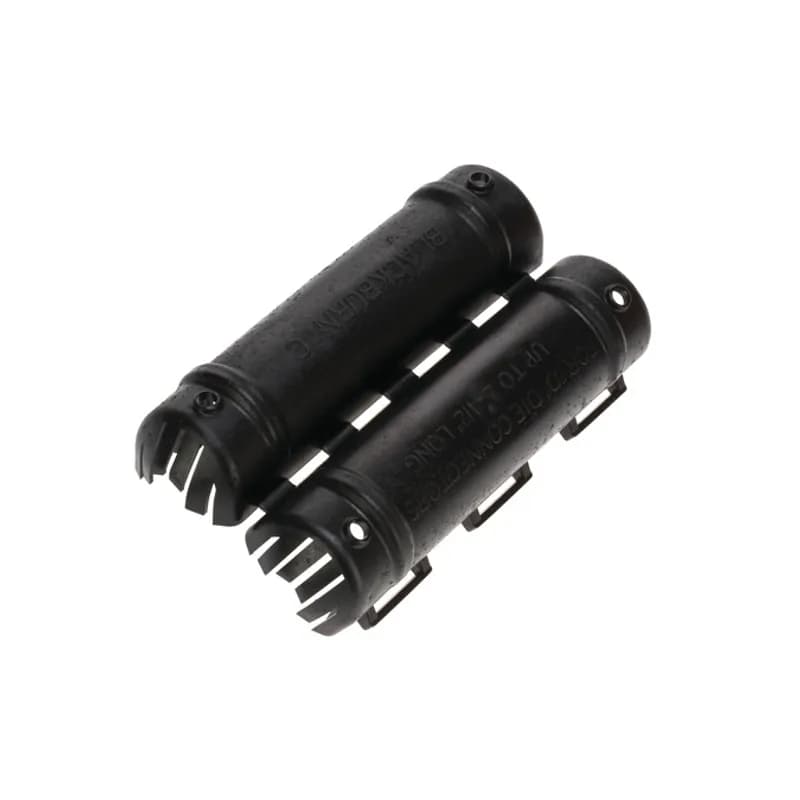

Insulating Cover For WR Series Tap Connector "D" Die Hinged polyurethane cover for easy installation of WR Series tap connectors. Eliminates taping. Drain Ports prevent accumulation of moisture. Ultraviolet stabilized.
