Authorized NSI Industries Distributor
NSI Industries 571-SI - 1/2" Steel U-Shaped Strap Connector, Insulated

NSI Industries 571-SI 1/2" Steel U-Shaped Strap Connector, Insulated

UPC: 781747105714


Documents & Media
Specification SheetVideo ClipWarrantyConflict Minerals Report

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

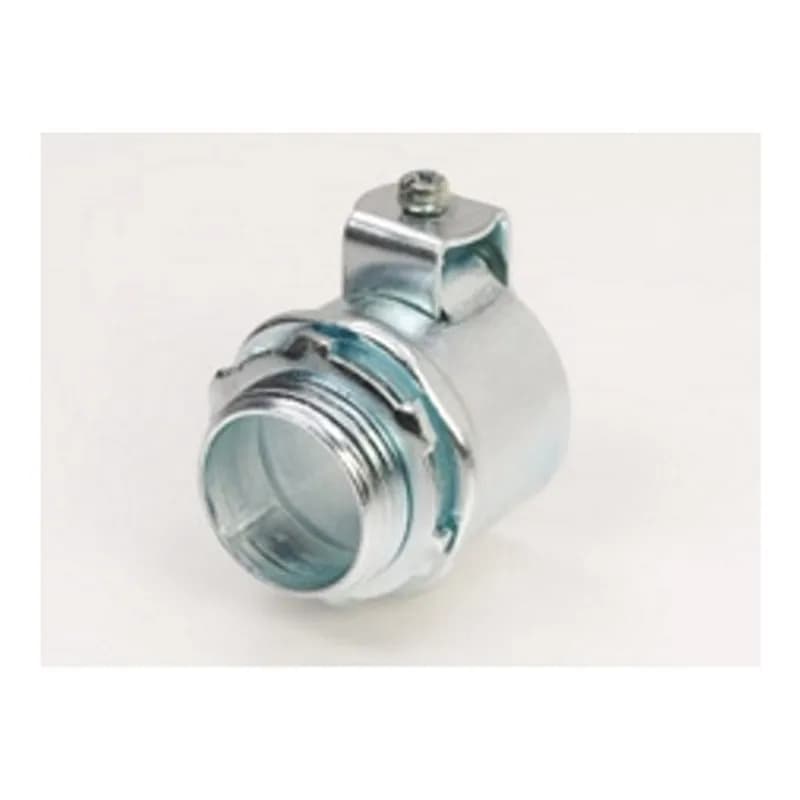

The NSI Industries 571-SI is a 1/2" steel U-shaped strap connector with integrated insulation, designed for secure fastening of armored or metal clad cables and flexible metal conduits to enclosures or boxes. Constructed from zinc electroplated steel, this connector provides mechanical strength and corrosion resistance for industrial applications. The integrated insulation ensures electrical isolation, protecting against accidental contact in high-risk environments. With dimensions of 0.580" (A), 1-5/32" (B), and 1-5/8" (C), the 571-SI accommodates cable diameters from 8/3 (0.701") to 6/3 (0.855"). Manufactured by NSI Industries, a trusted name in industrial fittings, the 571-SI delivers reliable performance in demanding installations where both mechanical security and electrical safety are critical.
  • 1/2" trade size for armored/metal clad cable and flexible metal conduit
  • Zinc electroplated steel construction with integrated insulation
  • Dimensions: 0.580" (A) x 1-5/32" (B) x 1-5/8" (C)
  • Accommodates cable diameters from 8/3 (0.701") to 6/3 (0.855")
  • Manufactured by NSi Industries in the USA

Specifications

Angle
180 Deg
Application
Recommended cable types used to connect armored or metal clad cable or steel or aluminum flexible metal conduit to box or enclosure. Diameter for 8/3 (.701" 0 min) to 6/3 (.855" 0 max)
Conductor Range
8/3 to 6/2 (.63" - .78") AC/MC/MCIA
Connector Type
U Shaped
Finish
Zinc Electroplated
Material
Steel
Number Of Conductors
1 Cable
Size
1/2 IN
Special Features
HCFMCI-A
Standard
UL
Temperature Rating
105?°C
Trade Size
1/2 in
Type
Connector
Package Weight (Imperial)
0.119 L
Package Weight (Metric)
0.054 kg
Straight Malleable Iron AC/MC/FMC connector. 3/8" trade size. UL listed for sizes 14/4 to 6/3 AC/MC/MCIA. For use with 3/8" trade size FMC.

403-I

Straight Malleable Iron AC/MC/FMC connector. 3/8" trade size. UL listed for sizes 14/4 to 6/3 AC/MC/MCIA. For use with 3/8" trade size FMC.
Cable Lok Set Screw Connector, Size Range 0.450 Inch - 0.610 Inch or 1/2 Inch Knockout, AC Steel 14/2 14/3 14/4 12/2 12/3 12/4 10/2, AC Aluminum Interlocked 14/2 14/3 14/4 12/2 12/3 12/4 10/2, MC (I) Steel 14/2 14/2 14/4 12/2 12/3 12/4 10/2 10/3, MC (I) Aluminum 14/2 14/3 14/4 12/2 12/3 12/4, Flex RW 3/8 Inch Steel and Aluminum 10/2 10/3, Material Zinc Plated Steel with Nylon Insulator

XC 730

Cable Lok Set Screw Connector, Size Range 0.450 Inch - 0.610 Inch or 1/2 Inch Knockout, AC Steel 14/2 14/3 14/4 12/2 12/3 12/4 10/2, AC Aluminum Interlocked 14/2 14/3 14/4 12/2 12/3 12/4 10/2, MC (I) Steel 14/2 14/2 14/4 12/2 12/3 12/4 10/2 10/3, MC (I) Aluminum 14/2 14/3 14/4 12/2 12/3 12/4, Flex RW 3/8 Inch Steel and Aluminum 10/2 10/3, Material Zinc Plated Steel with Nylon Insulator
1" Single Screw Strap Connectors

BL-19

1" Single Screw Strap Connectors
Connector, Strap, Single Screw, Zinc Die Cast, Insulated Throat, Trade Size 3/4 Inch.

BL-18I

Connector, Strap, Single Screw, Zinc Die Cast, Insulated Throat, Trade Size 3/4 Inch.
Mighty-Seal Jacketed MC Cable Connectors, 90 Degree PVC Jacketed MC and TECK Cable Connector

895-DC2

Mighty-Seal Jacketed MC Cable Connectors, 90 Degree PVC Jacketed MC and TECK Cable Connector
3" Two Screw MC Insulated Connector

688-DCI2

3" Two Screw MC Insulated Connector
Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 2 Inch, Rectangular throat

686-DCX2

Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 2 Inch, Rectangular throat
3/4" Steel U Shaped Strap Connectors, Insulated

572-SI

3/4" Steel U Shaped Strap Connectors, Insulated

Frequently Asked Questions

What material is the 571-SI made from?

The 571-SI is made of steel and has a zinc electroplated finish.

What is the trade size of the 571-SI?

The trade size of the 571-SI is 1/2 inch.

What certifications does the 571-SI have?

The 571-SI is certified under UL File Number c(UL)us; E20534 and meets UL Standard UL514B.

What material is the 571-SI made from?

The 571-SI is made of steel and has a zinc electroplated finish.

What is the trade size of the 571-SI?

The trade size of the 571-SI is 1/2 inch.

What certifications does the 571-SI have?

The 571-SI is certified under UL File Number c(UL)us; E20534 and meets UL Standard UL514B.

What types of cables can the 571-SI connect?

The 571-SI is recommended for connecting armored or metal clad cable, as well as steel or aluminum flexible metal conduit to a box or enclosure.

What are the dimensions of the 571-SI?

The dimensions are: A = 0.580 inches, B = 1-5/32 inches, C = 1-5/8 inches.

How many units are in a standard package?

A standard package contains 200 units of the 571-SI.

What types of cables can the 571-SI connect?

The 571-SI is recommended for connecting armored or metal clad cable, as well as steel or aluminum flexible metal conduit to a box or enclosure.
