Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview

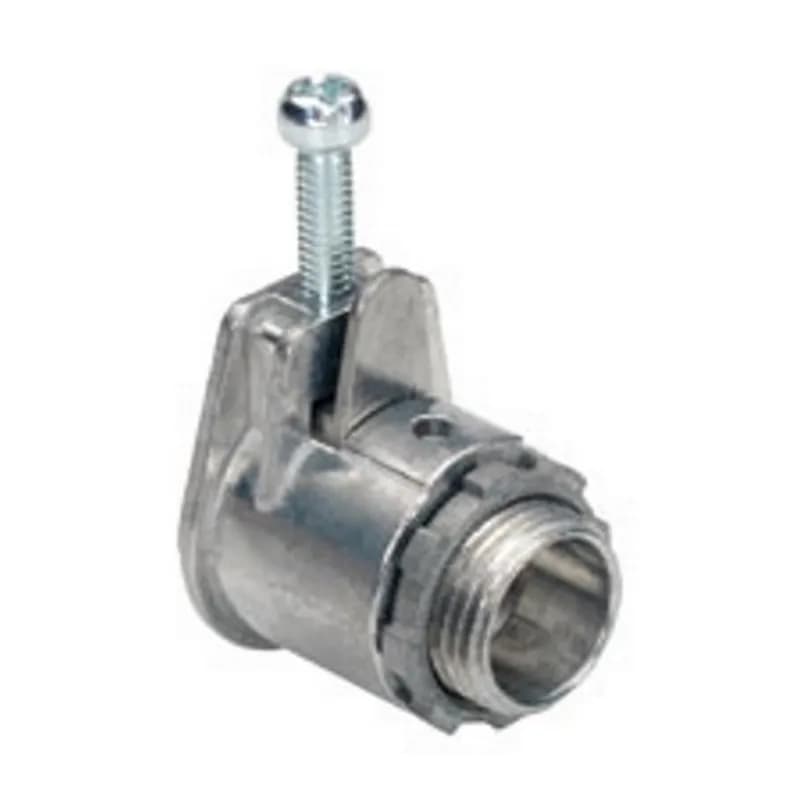

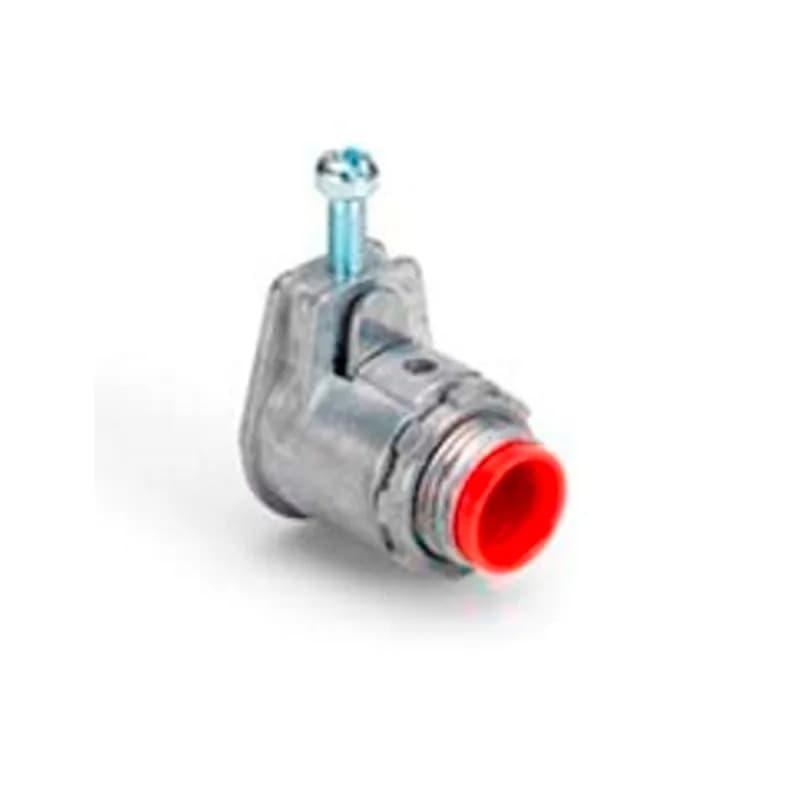

- 3/4 Inch Trade Size
- Durable Zinc Die Cast Construction
- Insulated Throat for Enhanced Safety
- Single Screw Design for Secure Connection
- Manufactured in the USA
Specifications
Angle | 180 |
Application | Recommended cable types used to connect 6/3 AC90 and FMC Cable conduit to box or enclosure. Insulated Throat - 105degreeC |
Conductor Range | 6/3 AC90 |
Connector Type | Single Screw, Strap, Insulated |
Finish | Ball burnish |
Material | Zinc Die Cast |
Number Of Conductors | 1 Cable |
Size | 3/4 IN |
Standard | cULus |
Temperature Rating | 105?°C |
Trade Size | 3/4 in |
Type | Connector |
Package Weight (Imperial) | 0.148 L |
Package Weight (Metric) | 0.067 kg |
Similar Products
BL-18
Conductor Range: 6/3
Special Features: 3/4" Flexible Metal Conduit and 6/3 AC90 Cable
Connector Type: Single Screw, Strap
Frequently Asked Questions
What is the trade size of the BL-18I connector?
The trade size of the BL-18I connector is 3/4 inch.
What is the trade size of the BL-18I connector?
The trade size of the BL-18I connector is 3/4 inch.
What is the material of the BL-18I connector?
The BL-18I connector is made of zinc die cast.
What cable types are compatible with the BL-18I?
The BL-18I is recommended for connecting 6/3 AC90 and FMC cable conduit.
What is the material of the BL-18I connector?
The BL-18I connector is made of zinc die cast.
What cable types are compatible with the BL-18I?
The BL-18I is recommended for connecting 6/3 AC90 and FMC cable conduit.
What is the maximum operating temperature?
The maximum operating temperature is 105°C.
What are the UL certifications for the BL-18I?
The BL-18I has UL File Numbers c(UL)us; E9391 & E20534 and meets UL Standard UL514B.
What is the maximum operating temperature?
The maximum operating temperature is 105°C.
What are the UL certifications for the BL-18I?
The BL-18I has UL File Numbers c(UL)us; E9391 & E20534 and meets UL Standard UL514B.
