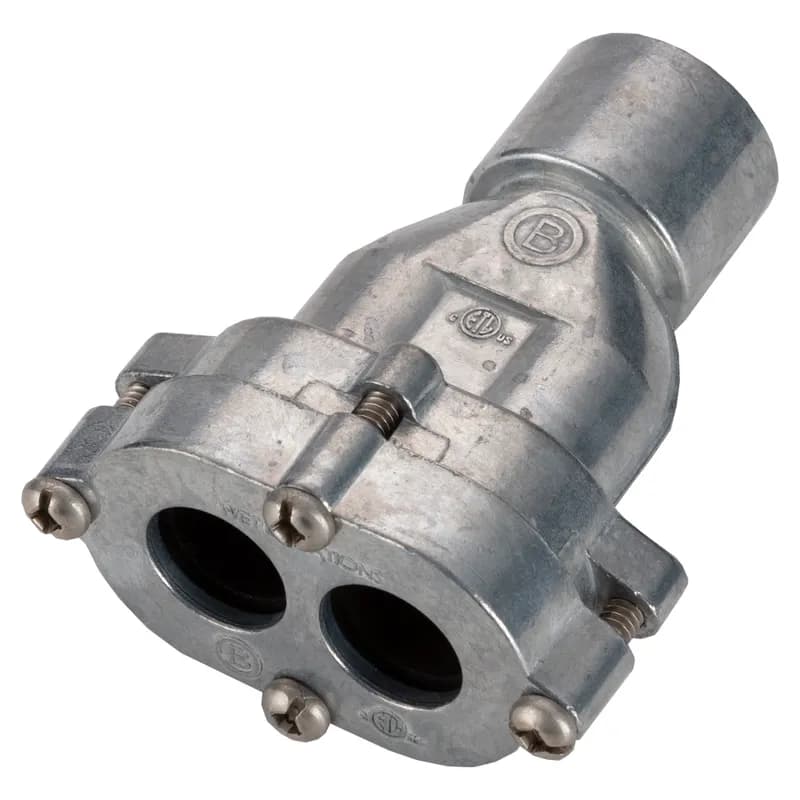

NSI Industries 5195-DC Mighty-Seal EMT to DUPLEX JMC/TECK Transition Coupling 3/4"
UPC: 781747951953
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Direct transition between 3/4" EMT and DUPLEX JMC/TECK cables
- Accommodates 12/2 to 10/3 JMC and 12/2 to 14/4 Teck cable sizes
- Patented Mighty-Seal design (US Patent #10,059,659) for watertight performance
- Zinc die-cast construction for durability in wet/corrosive environments
- Meets Federal Specification A-A-50552, NEMA FB-1, and UL-514B standards
Specifications
Application | Bridgeport's 5195-DC makes it easy to transition between Rigid Conduit and multiple JMC/TECK cables in wet locations. |
Material | Zinc Die Cast |
Size | 3/4 IN |
Special Features | Recommended Cable Sizes include: 12/2 to 10/3 JMC; 12/2 TO 14/4 Teck; Over Armor Diameter: .48" to .64"; Over Jacket Diameter: .58" to .72" |
Standard | UL514B |
Type | DUPLEX JMC/TECK |
Package Weight (Imperial) | 0.646 L |
Package Weight (Metric) | 0.293 kg |
XC240-5
Connector, Screw-In, Size 3/8 Inch, Length 1.31 Inch, Width 0.92 Inch, Die Cast Zinc, Bag of 5
AMC-52QI
Connector, Duplex, E-Z Lock, Steel, .375 Inch Throat Opening, No Tools Required. Quick Install. Patented
254-TB
Squeeze Connector, Straight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Cable Range 0.812 to 0.938 Inch, Steel277
Squeeze Connector, Straight, Trade Size 3 Inch, Knockout Size 3 Inch, Cable Range 3.312 to 3.563 Inch, Malleable Iron
3135
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Cable Range 0.906 to 1.093 Inch, Steel with Zinc Plating, Nylon Insulated3137
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range 1.250 to 1.468 Inch, Malleable Iron with Zinc Plating, Nylon InsulatedFrequently Asked Questions
What is the trade size of the 5195-DC?
The trade size of the 5195-DC is 3/4".
What cable sizes are compatible with the 5195-DC?
Compatible cable sizes include 12/2 to 10/3 JMC and 12/2 to 14/4 Teck.
What is the primary material of the 5195-DC?
The primary material of the 5195-DC is Zinc Die Cast.
What are the over armor and jacket diameter specifications?
The over armor diameter ranges from .48" to .64", and the over jacket diameter ranges from .58" to .72".
What are the dimensions of the 5195-DC?
The dimensions are A: 1.25, B: 1.477, C: 2.867, and D: 3.608.
What is the patent number for the 5195-DC?
The patent number for the 5195-DC is US Patent #10,059,659.
What certifications does the 5195-DC have?
The 5195-DC is certified under UL Standard UL-514B and has an ETL Listing.
Is the 5195-DC suitable for wet locations?
Yes, the 5195-DC is designed for use in wet locations.
What is the standard package quantity for the 5195-DC?
The standard package quantity for the 5195-DC is 40 units.
