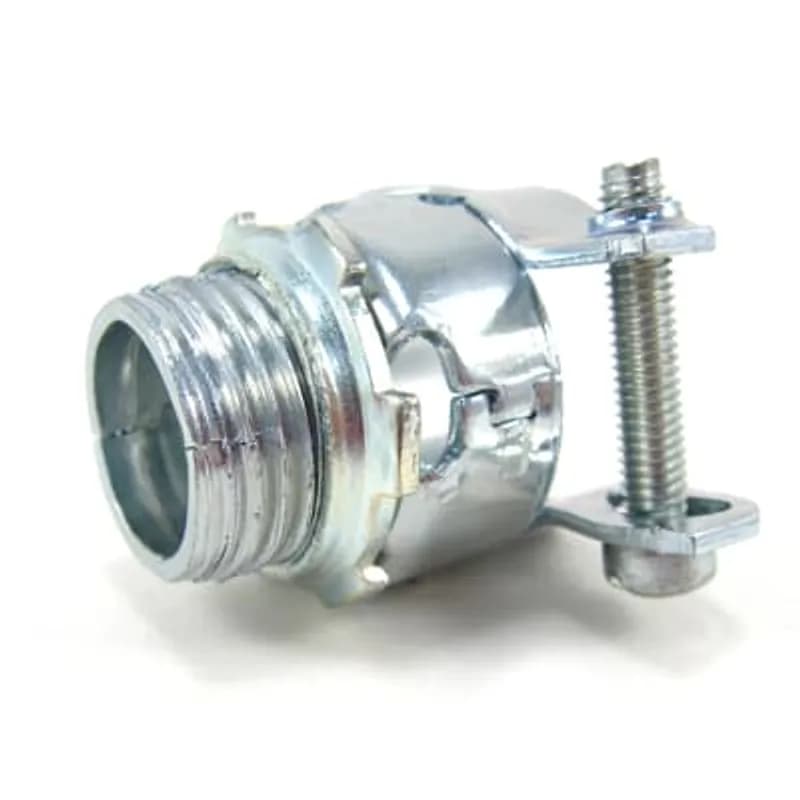

ABB - Installation Products 254-TB - Squeeze Connector, Straight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Cable Range 0.812 to 0.938 Inch, Steel

ABB Installation Products 254-TB Squeeze Connector, Straight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Cable Range…

UPC: 786210002545


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 254-TB is a steel squeeze connector engineered for straight conduit connections in industrial electrical installations. Designed to fit a trade size of 1/2 inch and a knockout size of 1/2 inch, this connector ensures compatibility with standard electrical enclosures and conduit systems. Its robust steel construction delivers reliable mechanical protection for armored cable, metal-clad cable, and flexible metal conduit, making it ideal for demanding environments where secure conduit termination is critical. Key specifications include a cable opening range from 0.812 to 0.938 inches, accommodating a variety of wire and cable diameters within this specification. The squeeze-on design simplifies installation, requiring only standard conduit tools for a fast, tool-free connection. With dimensions of 1 1/32 inches (A), 1 1/8 inches (B), and 1 3/32 inches (C), the 254-TB is optimized for space-efficient installations without compromising performance. Manufactured by ABB under SKU 254-TB, this connector is part of the T&B fittings line, known for its precision-engineered components that meet the rigorous demands of industrial electrical systems. Whether used in commercial buildings, manufacturing facilities, or utility installations, the 254-TB provides a durable, low-maintenance solution for conduit termination. Its steel construction ensures long-term reliability, while the straightforward design minimizes installation time and reduces the risk of errors.
  • Trade size: 1/2 inch, knockout size: 1/2 inch
  • Cable range: 0.812 to 0.938 inches
  • Steel construction for durability and mechanical protection
  • Squeeze-on design for tool-free installation
  • Compatible with armored cable, metal-clad cable, and flexible metal conduit

Specifications

Application
For Use with Armored Cable and Flexible Metal Conduit
Connection Type
Squeeze Connector
Material
Steel
Size
1/2 Inch
Size
Trade Size 1/2 Inch
Special Features
T&B Squeeze Connectors Will Fit Every Size of Armored Cable, Leaded Cable and Flexible Conduit
Standard
UL E23018, CSA 2884
Type
Armored Cable/Flexible Metal Conduit Fittings
Package Dimensions (L x W x H)
4 IN x 5 IN x 8 IN
Package Dimensions (L x W x H)
10.16 cm x 12.7 cm x 20.32 cm
Package Weight (Imperial)
0.0900 L
Package Weight (Metric)
0.0410 kg
90 Degree Locknut Style MCIA Cable Connector

802-MCIA2

90 Degree Locknut Style MCIA Cable Connector
Metal-Clad and Armored Cable Fitting, Straight, Trade Size 3/8 Inch, Knockout Size 1/2 Inch, Cable Range 0.460 to 0.781 Inch, Steel with Zinc Plating

301-TB

Metal-Clad and Armored Cable Fitting, Straight, Trade Size 3/8 Inch, Knockout Size 1/2 Inch, Cable Range 0.460 to 0.781 Inch, Steel with Zinc Plating
Squeeze Connector, Straight, Trade Size 3 Inch, Knockout Size 3 Inch, Cable Range 3.312 to 3.563 Inch, Malleable Iron

277

Squeeze Connector, Straight, Trade Size 3 Inch, Knockout Size 3 Inch, Cable Range 3.312 to 3.563 Inch, Malleable Iron
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Cable Range 0.906 to 1.093 Inch, Steel with Zinc Plating, Nylon Insulated

3135

Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Cable Range 0.906 to 1.093 Inch, Steel with Zinc Plating, Nylon Insulated
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range 1.250 to 1.468 Inch, Malleable Iron with Zinc Plating, Nylon Insulated

3137

Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range 1.250 to 1.468 Inch, Malleable Iron with Zinc Plating, Nylon Insulated
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 2-1/2 Inch, Knockout Size 2-1/2 Inch, Cable Range 2.812 to 3.062 Inch, Malleable Iron with Zinc Plating, Nylon Insulated

3141

Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 2-1/2 Inch, Knockout Size 2-1/2 Inch, Cable Range 2.812 to 3.062 Inch, Malleable Iron with Zinc Plating, Nylon Insulated
Metal-Clad and Armored Cable Fitting, Straight, Trade Size 1/8 Inch, Knockout Size 1/2 Inch, Cable Range 0.670 to 0.920 Inch, Steel with Zinc Plating

302-TB

Metal-Clad and Armored Cable Fitting, Straight, Trade Size 1/8 Inch, Knockout Size 1/2 Inch, Cable Range 0.670 to 0.920 Inch, Steel with Zinc Plating
Squeeze Connector, Straight, Trade Size 4 Inch, Knockout Size 4 Inch, Cable Range 3.500 to 4.600 Inch, Malleable Iron

281-TB

Squeeze Connector, Straight, Trade Size 4 Inch, Knockout Size 4 Inch, Cable Range 3.500 to 4.600 Inch, Malleable Iron

Frequently Asked Questions

What are the dimensions of the 254-TB?

The 254-TB has dimensions of 1 1/32 inches (A), 1 1/8 inches (B), and 1 3/32 inches (C).

What is the material of the 254-TB?

The 254-TB is constructed from steel, ensuring durability and mechanical protection.

What cable types are compatible with the 254-TB?

The 254-TB fits armored cable, metal-clad cable, and flexible metal conduit within the specified cable range of 0.812 to 0.938 inches.

Can the 254-TB be used with flexible metal conduit?

Yes, the 254-TB is compatible with flexible metal conduit as specified in the catalog.

What tools are required to install the 254-TB?

The 254-TB requires only standard conduit tools for installation, as it features a squeeze-on design.

Is the 254-TB suitable for outdoor installations?

The 254-TB is designed for indoor and outdoor use, provided it is installed in a compatible enclosure.
