NSI Industries 1109A-P - 24 Hour Time Switch 120-277V Plastic
More images

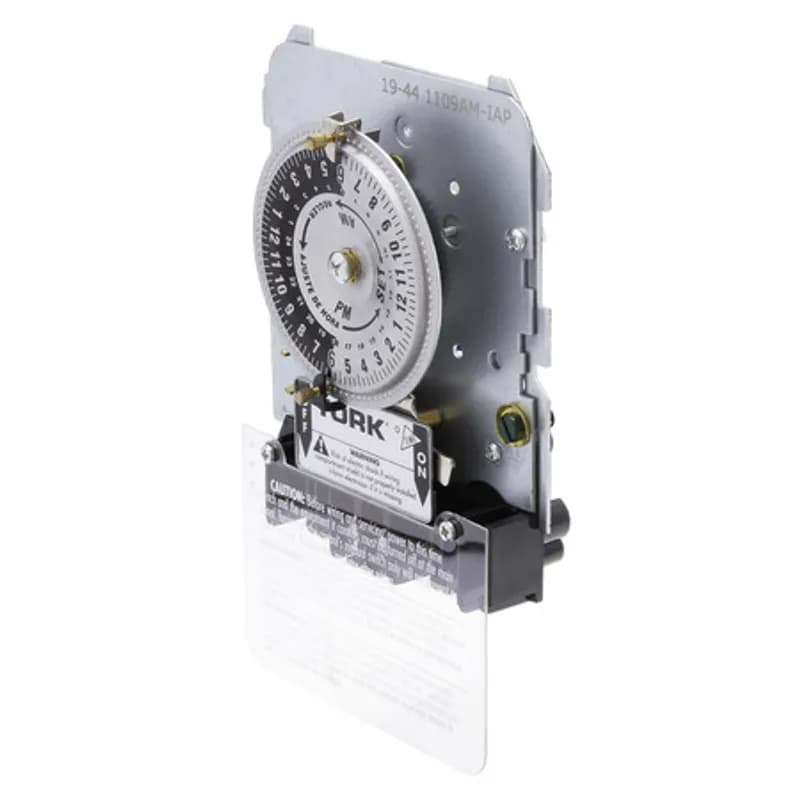

NSI Industries 1109A-P 24 Hour Time Switch 120-277V Plastic

UPC: 786261101082


Documents & Media
Technical BulletinSpecification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The NSi Industries 1109A-P is a 24-hour time switch (SKU: 1109A-P) designed for automated load control in industrial and commercial settings. This DPST (Double Pole Single Throw) device operates on a 120-277V range and handles up to 40A. Its durable plastic enclosure is rated for both indoor and outdoor use, providing protection against environmental factors. The 1109A-P enables precise scheduling of connected loads, reducing manual operation and energy waste. It is compatible with standard electrical systems and is suitable for applications such as lighting control, HVAC systems, and time-dependent equipment operation.
  • 24-hour time switch for automated load control
  • Operates on 120-277V with 40A DPST configuration
  • Durable plastic enclosure rated for indoor/outdoor use
  • Reduces manual operation and energy waste through precise scheduling
  • Compatible with lighting control, HVAC systems, and time-dependent equipment

Specifications

Current Rating
40 A
Current Rating
40A
Material
Plastic
Poles
DPST
Series
1109A
Voltage Rating
120-277 V
Voltage Rating
120-277V
Package Dimensions (L x W x H)
4.312 IN x 5.25 IN x 8.25 IN
Package Dimensions (L x W x H)
10.9525 cm x 13.335 cm x 20.955 cm
Package Weight (Imperial)
2.300 L
Package Weight (Metric)
1.043 kg
The TORK 652B Heavy-Duty Dusk to Dawn Mechanical Plug-In Lighting and Appliance Timer features 2 grounded outlets. Illuminate your home or office with a timer that automatically detects nightfall and turns lights on either all night or for a programmed time after dusk. Designed for applications including holiday lights, outdoor decorations, landscape lights, pumps, fountains, motors and more.

652B

The TORK 652B Heavy-Duty Dusk to Dawn Mechanical Plug-In Lighting and Appliance Timer features 2 grounded outlets. Illuminate your home or office with a timer that automatically detects nightfall and turns lights on either all night or for a programmed time after dusk. Designed for applications including holiday lights, outdoor decorations, landscape lights, pumps, fountains, motors and more.
GT-2744

100-8010

GT-2744
DI814 Digital Input 24V Current 16 ch

3BUR001454R1

DI814 Digital Input 24V Current 16 ch
The TORK EWZ101 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and a photo/override switch. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

EWZ101

The TORK EWZ101 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and a photo/override switch. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
The TORK RHB32RC 24-hour mechanical plug-in heavy-duty timer features a clear protective cover over 2 grounded outlets. Automate your home or office in a looping daily schedule with three on/off times programmed in 30-minute increments using the simple red and green trippers. Designed for applications including landscape or holiday lights and most outdoor appliances.

RHB32RC

The TORK RHB32RC 24-hour mechanical plug-in heavy-duty timer features a clear protective cover over 2 grounded outlets. Automate your home or office in a looping daily schedule with three on/off times programmed in 30-minute increments using the simple red and green trippers. Designed for applications including landscape or holiday lights and most outdoor appliances.
The TORK RTN312 24-hour mechanical plug-in lighting and appliance timer features 2 grounded outlets. Automate your home or office in a looping daily schedule using the simple timer buttons to schedule three on/off times in 30-minute increments using the simple red and green trippers. Designed for applications including holiday lights, fans, lamps, coffee makers and more.

RTN312

The TORK RTN312 24-hour mechanical plug-in lighting and appliance timer features 2 grounded outlets. Automate your home or office in a looping daily schedule using the simple timer buttons to schedule three on/off times in 30-minute increments using the simple red and green trippers. Designed for applications including holiday lights, fans, lamps, coffee makers and more.
The TORK RTN112 24-hour mechanical plug-in lighting and appliance timer features 2 polarized outlets. Automate your home or office in a looping daily schedule with three on/off times programmed in 30-minute increments using the simple red and green trippers. Designed for applications including holiday lights, fans, lamps, coffee makers and more.

RTN112

The TORK RTN112 24-hour mechanical plug-in lighting and appliance timer features 2 polarized outlets. Automate your home or office in a looping daily schedule with three on/off times programmed in 30-minute increments using the simple red and green trippers. Designed for applications including holiday lights, fans, lamps, coffee makers and more.
Time Switch with automatic On/Off control when operation is required at the same time every day, with optional one to six days omission. The 7209A has a contact rating of 40 Amp 120/208-277VAC and SPST/DPST switch

7209A

Time Switch with automatic On/Off control when operation is required at the same time every day, with optional one to six days omission. The 7209A has a contact rating of 40 Amp 120/208-277VAC and SPST/DPST switch

Frequently Asked Questions

What is the input voltage range for the 1109A-P?

The input voltage range is 120/208-277VAC, 50/60Hz.

What is the operating temperature range?

The operating temperature range is -40 °F to 149 °F (-40 °C to 65 °C).

What are the contact ratings for general purpose use?

The general purpose contact rating is 120/208-277VAC at 40A.

What is the power consumption of the device?

The power consumption is a maximum of 3 Watts.

What is the enclosure type of the 1109A-P?

The enclosure type is metal indoor NEMA 1 or metal indoor/outdoor NEMA 3R.

What certifications does the 1109A-P have?

The 1109A-P is certified cULus and listed under UL/CSA 60730.

What is the minimum ON and OFF time setting?

The minimum ON setting is 20 minutes, and the minimum OFF setting is 75 minutes.

What types of applications can the 1109A-P be used for?

It can be used for lighting, pumps, signs, air conditioning, water heaters, and fans.

What is the terminal range for wiring?

The terminal range accommodates #8 to #14 AWG wiring.

Is there a manual override feature?

Yes, there is a manual override until the next scheduled ON or OFF operation.
