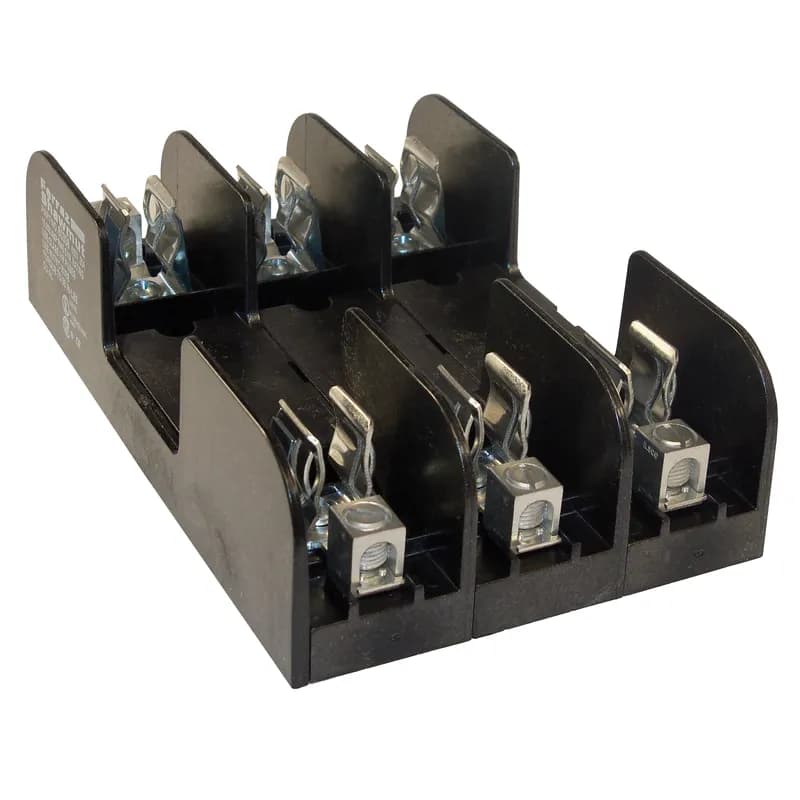

Mersen 60308 - Fuse Block 600VAC 600VDC Class H/K 30A 3-Pole Box with Reinforced Clip
More images
Installation images

Mersen 60308 Fuse Block 600VAC 600VDC Class H/K 30A 3-Pole Box with Reinforced Clip

Alternate Item Number: 60308

UPC: 782001758356


Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Mersen 60308 is a 3-pole fuse block designed for Class H, K, and R fuses, rated for 600VAC/VDC and 30A. This model features box connectors and spring-reinforced clips, ensuring reliable connections for copper wires. The glass-filled polycarbonate (GFPC) insulator provides dielectric strength exceeding 2500V, enhancing safety. Compatible with Class H, K, and R 250V and 600V power fuses, the adder block design enables modular expansion for multi-pole segmented blocks. High-conductivity tin-plated copper fuse clips deliver robust overcurrent protection and reliable circuit isolation. Ideal for industrial applications requiring dependable fuse protection and modular flexibility.
  • 3-pole design for Class H, K, and R fuses
  • Rated 600VAC/VDC and 30A for high-power applications
  • Spring-reinforced clips with copper-compatible expansion
  • Glass-filled polycarbonate insulator with >2500V dielectric strength
  • Modular adder block design for multi-pole expansion

Specifications

AC Voltage Rating
600 V
Amperage Rating
30 A
Brand Name
Mersen
Class
Class H/K
Connection
Box with Reinforced Clip
DC Voltage Rating
600 V
Material
Glass Filled Polycarbonate
Maximum Operating Temperature
80 °C
Maximum Operating Temperature
80 C
Mounting
Direct Screw Mount
Number Of Poles
3-pole
Phase
3
Size
7 x 4.55 x 2 in
Size
177.8 x 115.57 x 50.8 mm
Standard
All fuse blocks meet the requirements of UL 4248 UL listed, guide IZLT, File E52283 UL recognized component guide IZLT2, file E52283 CSA certified class 6225, File 32169
Type
UL/CSA Fuse Bases
Voltage Rating
600 VAC
Package Dimensions (L x W x H)
7 in x 4.55 in x 2 in
Package Dimensions (L x W x H)
177.8 mm x 115.57 mm x 50.8 mm
Package Weight (Imperial)
0.763 lb
Package Weight (Metric)
0.346 kg
Fuse Block 600VAC 600VDC Class H/K 30A 3-Pole Screw with Reinforced Clip

60318

Fuse Block 600VAC 600VDC Class H/K 30A 3-Pole Screw with Reinforced Clip
POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover. Applications: Typical applications include heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear, and anywhere power needs to be distributed to more than one load.

LS2572-3DIN

POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover. Applications: Typical applications include heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear, and anywhere power needs to be distributed to more than one load.
DR4/8 SF DIN2

1SNA110368R1200

DR4/8 SF DIN2
Fuse Block 600VAC 600VDC Class J 30A 2-Pole Screw

60312J

Fuse Block 600VAC 600VDC Class J 30A 2-Pole Screw
Fuse Block 600VAC 600VDC Class H/K 200A 1-Pole Copper Box Side Clip

62051

Fuse Block 600VAC 600VDC Class H/K 200A 1-Pole Copper Box Side Clip
Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip

30312R

Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip
Fuse Block 600VAC 600VDC Class H/K 100A 3-Pole Box with Reinforced Clip

61008

Fuse Block 600VAC 600VDC Class H/K 100A 3-Pole Box with Reinforced Clip
Fuse Block 250VAC 250VDC Class H/K 30A Adder Screw

20310

Fuse Block 250VAC 250VDC Class H/K 30A Adder Screw

Frequently Asked Questions

What certifications do these fuse blocks meet?

All fuse blocks meet UL 4248 requirements, are UL listed (guide IZLT, File E52283), UL recognized component (guide IZLT2, file E52283), and CSA certified (class 6225, File 32169).

What voltage and amperage ratings are available for these fuse blocks?

The fuse blocks are available in 250VAC/DC and 600VAC/DC ratings, with amperage options of 30A, 60A, 100A, 200A, 400A, and 600A.

Which fuse classes are compatible with these fuse blocks?

These fuse blocks accommodate Class H, K, and R power fuses in 250V and 600V ratings.

What are the SCCR ratings for these fuse blocks?

SCCR ratings are 10kA with class H fuses, 50kA with class K fuses, and 200kA with class R fuses.

What are the fuse clips made of and what types are available?

All fuse clips are made of high conductivity tin-plated copper. Spring reinforced or non-spring reinforced clips are available for 30A and 60A, while 100A and above are spring reinforced.

What are the insulators made of and what is their dielectric strength?

Insulators are made of molded glass-filled polycarbonate (GFPC) or phenolic, with a dielectric strength exceeding 2500V.

Are there specific fuse types recommended for Class R blocks?

For 250V Class R blocks, use A2D-R, A2K-R, TR-R. For 600V Class R blocks, use A6D-R, A6K-R, TRS-R.

What types of wire can be used with the connectors?

Connectors can accommodate a wide range of stranded or solid copper or aluminum wire, depending on the specific connector type and fuse block rating.

Can I add poles to the 30, 60, and 100A fuse blocks?

Yes, 30, 60, and 100A fuse blocks feature an adder block that can be snapped on to form multi-pole segmented blocks.

What are the recommended mounting screws for 100A and 200A fuse blocks?

For 100A, use 1/4" (.250" dia.) screws. For 200A, use #10 (.190” dia.) for 1-pole and 5/16” (.313” dia.) for 3-pole.

Frequently Asked Questions about Mersen

What industries and applications are Mersen products used for?

Mersen products are used across diverse industrial sectors including solar power, electric vehicles, buildings/construction, industrial automation, power distribution, HVAC, elevators, telecommunications, and specialty manufacturing. Key application areas include circuit protection, surge protection, battery module protection, electrical safety systems, and power management for residential, commercial, and utility-scale installations.

What are the main product lines offered by Mersen?

Mersen offers five primary electrical power product lines: IEC and UL/CSA Fuses and Fusegear, Surge Protection, Low Voltage Disconnect Switches, Power Distribution Blocks, and Engineered Solutions. Their comprehensive range includes specialized components like high-speed fuses, modular fuse holders, surge arresters, and custom-engineered electrical protection systems for industrial and power management applications.

What are the key features of Mersen products?

Mersen products feature advanced electrical protection and power management solutions with key characteristics including finger-safe design, compact modularity, and high-performance safety features. Their product lines span electrical power components like fuses, surge protection, power distribution blocks, and specialized solutions for industrial, solar, and building applications. Critical features include UL/CSA approvals, high short-circuit current ratings, and innovative technologies like the Fuse Control™ program that minimize electrical risks and optimize system performance.

What environmental ratings do Mersen products have?

Mersen products meet rigorous environmental ratings across multiple standards, including UL 508A Type 1, 2, 3, 4, 4X, 12, and 13, CSA Type 1, 2, 3, 4, 4X, 12, and 13, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13. They feature IEC 60529 IP66 protection, with enhanced UV inhibitors for outdoor weathering and operating temperatures ranging from -40°C to 130°C (-40°F to 266°F). These ratings ensure superior protection in wet, corrosive, and challenging industrial environments.

What accessories are available for Mersen products?

Mersen offers multiple accessories for their fuse blocks and systems, including safety pullers (DFC3M and DFC3LP), DIN-rail adapters (DRM), bus bars, auxiliary contacts, and specialized mounting hardware. Key accessories include the DFC3M safety puller for 1-1/2" x 13/32" midget or Class CC fuses, the DRM adapter for mounting 303 series fuse blocks on DIN-rail, and UltraSafe fuse module accessories like bus bars and auxiliary contacts that enable module interconnection and monitoring.

How are Mersen products typically installed?

Mersen products are typically installed in electrical distribution systems, control panels, and industrial automation environments using multiple mounting options. These include service entrance panel mounting, distribution panel installation, control panel DIN rail mounting, and custom engineered solutions like Fused Coordination Panelboards. Installation depends on the specific product type, such as fuses, surge protective devices, or switches, and is designed to provide electrical protection and circuit safety in various industrial and commercial applications.

What certifications and standards do Mersen products comply with?

Mersen products are certified to multiple international standards, including UL (Underwriters Laboratories), CSA (Canadian Standards Association), CCC (China Compulsory Certification), and EAC (Eurasian Conformity). Our products meet rigorous safety and performance standards for industrial applications across North America, China, Russia, and other global markets, ensuring compliance and reliability in electrical power and advanced materials solutions.

What technical support does Mersen offer?

Mersen provides comprehensive technical support through multiple channels, including technical experts located in your time zone who can assist with product selection, application guidance, and troubleshooting. Their Fuse Control™ program offers a free Fuse Inventory Audit & Analysis, and customers can access technical resources through their sales representatives and online platform ep.mersen.com.
