Contact for Pricing
Minimum Qty: 500
Multiplier: 500
*Contact for lower quantities*
Overview
- DIN-rail mountable for secure power distribution
- Supports standard crimp terminals (S-D, S-DD, S-E, S-ES, S-SP, S-EE, S-HSB, S-ESHV, S-K, S-M, S-EHV)
- RoHS compliant
- Type 4/4x/12 rating for high-current applications up to 80A per pole
- Ideal for 24–60V DC systems
Specifications
Amperage Rating | 6.3 A |
Application | Miniblock |
Color | Grey |
Connection | Screw clamp |
Connection Type | Crimp Terminal |
Current Rating | 80A |
Flammability | V0 |
Flammability - Metric | V0 |
Height | 2.35 IN |
Height - Metric | 59.9 mm |
Ip Rating | IP4/4X/12 |
Length | 1.417 in |
Length - Metric | 36 mm |
Material | Polyamide |
Mounting | DIN Rail |
Mounting Type | DIN-rail mountable |
Operating Temperature | -67 - 230 °F |
Operating Temperature | -55 - 110 °C |
Poles | 8 |
Series | DR4/8 SF DIN2 |
Spacing | 0.3149606 In |
Spacing - Metric | 8 mm |
Type | DR4/8.SF |
Voltage Rating | 630 V |
Voltage Rating | 24–60V DC |
Width | 0.314 in |
Width - Metric | 8 mm |
Wire Size | 0.0062 in² |
Wire Size - Metric | 4 mm² |
354908-GY
ACS OMNI-BLOK MTG 8 POLE. A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.
G1060812

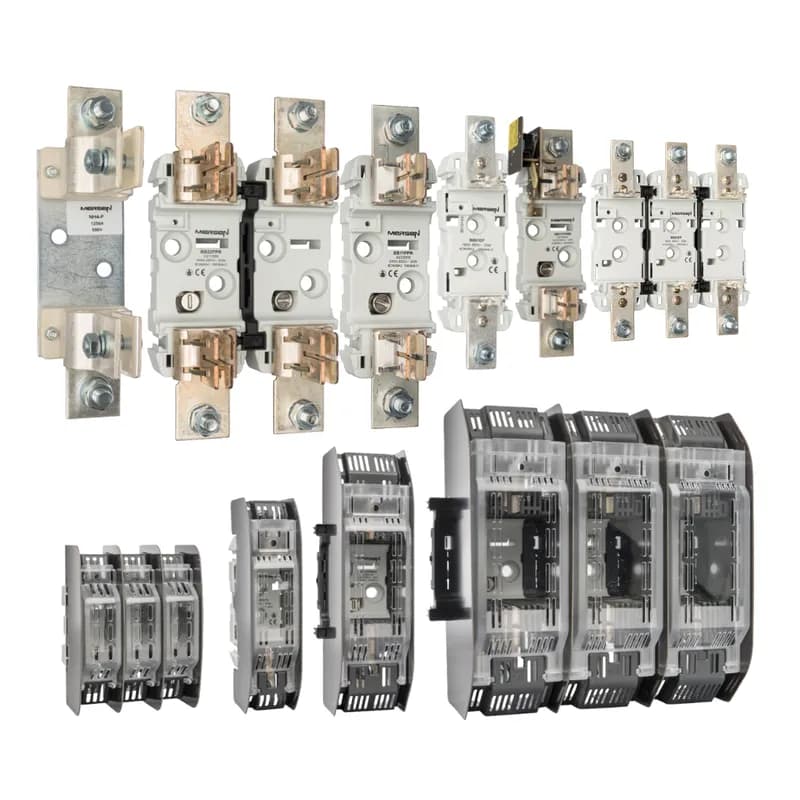

NH plastic base Size NH00 1000VAC 1000VDC 160A 1-Pole DIN Rail Connection Screw / Clamp Strap EP TypeFrequently Asked Questions about TE Connectivity
