Macromatic
PMPU-FA12X
Contact for Pricing

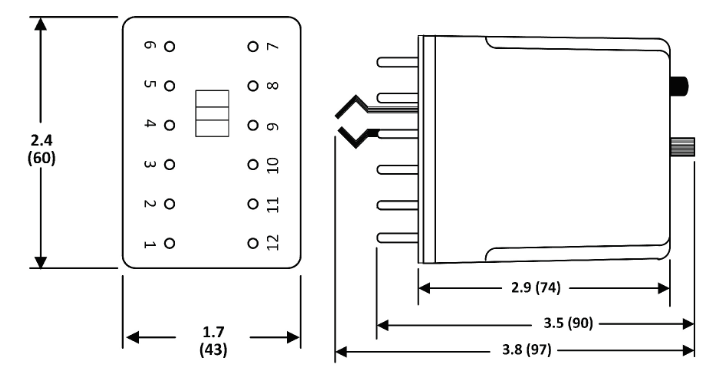

Overview
- Monitors 190-500V AC with fixed over-voltage at 110% and under-voltage at 90%
- Detects and protects against phase loss, phase reversal, and phase unbalance (fixed at 6%)
- Features a 5A DPDT output configuration for versatile control
- Plug-in mounting style with automatic reset upon fault correction
- cURus File #E109466 and UL LISTED IND. CONT. EQUIP 50U7 approvals
PLM9405
The PLM Series is a 3-phase voltage monitor that continuously monitors each of the three phases. Monitors both delta and wye systems and no connection to neutral is required. The microcontroller circuit design protects against undervoltage, voltage unbalance, phase loss and phase reversal. Protection is assured when regenerated voltages are present. Operation: The output relay is energized and the LED glows green when all voltages are acceptable and the phase sequence is correct. Under and unbalanced voltages must be sensed for a continuous trip delay period before the relay de-energizes. Reset is automatic upon correction of the fault condition. The output relay will not energize if a fault condition is sensed as power is applied. The LED flashes red during the trip delay, then glows red when the output de-energizes. The LED flashes green/red if phase reversal is sensed. Field Adjustment: Set voltage adjustment knob at the desired operating line voltage for the equipment. This adjustment automatically sets the undervoltage trip point. Apply power. If the PLM fails to energize, (LED glows red) check wiring of all 3 phases, voltage, and phase sequence. If phase sequence is incorrect, the LED flashes green/red. To correct this, swap any two line voltage connections at the mounting socket. No further adjustment should be required.
PMDU
Three Phase Monitor Relay; DIN-Mount; 190-500V; 10A DPDT; Phase Loss; Reversal; Unbalance; Under/Over Voltage
Frequently Asked Questions
What is the monitored voltage range for the PMPU-FA12X?
The Macromatic PMPU-FA12X monitors voltages between 190V AC and 500V AC.
What types of phase faults does this relay protect against?
This relay protects against phase loss, phase reversal, and phase unbalance.
What are the fixed settings for over-voltage and under-voltage?
The over-voltage is fixed at 110% of the nominal voltage, and the under-voltage is fixed at 90%.
What is the output configuration of the PMPU-FA12X?
The PMPU-FA12X features a 5A DPDT (Double Pole Double Throw) output configuration.
How does the PMPU-FA12X reset after a fault?
The reset is automatic upon correction of the fault condition.
What are the approvals for the Macromatic PMPU-FA12X?
The device has cURus File #E109466 and is UL LISTED IND. CONT. EQUIP 50U7 with the appropriate socket.
What is the phase unbalance setting?
The phase unbalance protection is fixed at 6%.
