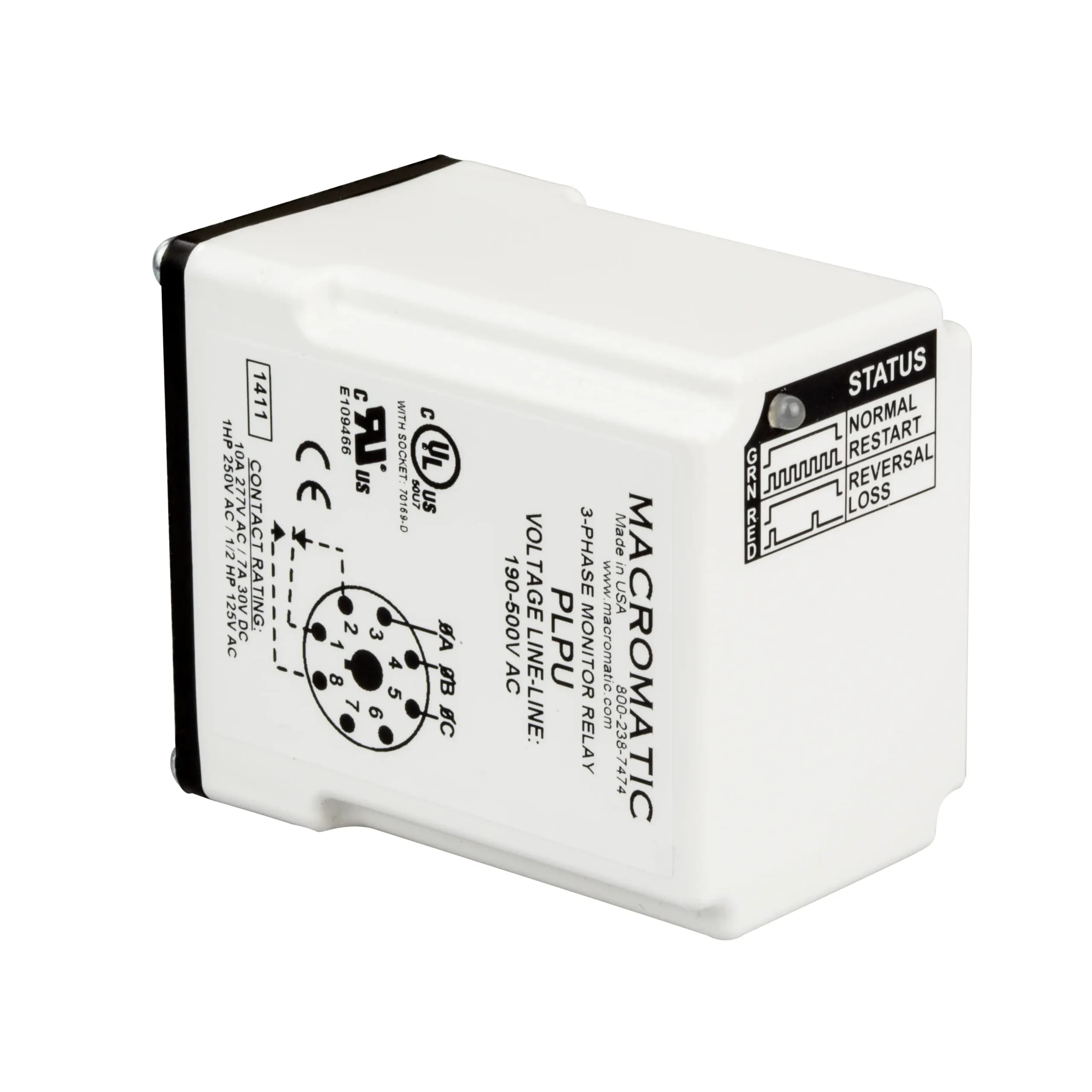

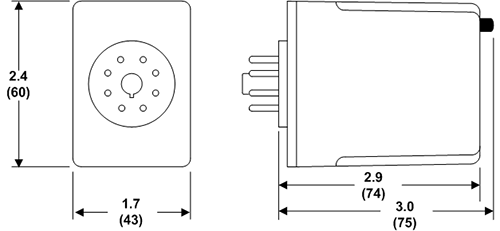

Macromatic PLP575 is an 8-pin plug-in phase monitor relay designed to protect three-phase motors and equipment from phase loss and phase reversal faults. Manufactured by Macromatic, a leader in industrial control relays, the PLP575 monitors line-to-line voltages from 190-500V AC (50/60Hz) with ±5% tolerance. It features a 10A SPDT output contact for direct control of contactors, starters, or alarms. The relay uses an industry-standard 8-pin octal socket for easy installation and replacement. A red LED indicates normal operation (on) or fault conditions (off), with automatic reset upon fault correction. Response time is 50ms for both operate and release. Approved under cRUus (File #E109466), it suits Wye or Delta systems without requiring neutral connection. Ideal for protecting pumps, HVAC systems, and industrial machinery from single-phasing damage.
  • Monitors 190-500V AC (50/60Hz) line-to-line voltage
  • Detects phase loss and phase reversal faults
  • 10A SPDT output contact for direct control
  • 8-pin octal plug-in design for easy installation
  • Red LED indicates normal/fault conditions with automatic reset
